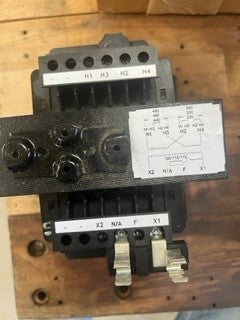

Siemens MT0500A Control Transformer 240V AC/480V AC, 120V AC-New Surplus
Ready To Ship Next Business Day
Brand-SIEMENS
Item - Transformer Control Transformer
Input Voltage - Transformer 240V AC; 480V AC
Output Voltage - Transformer 120V AC
VA Rating - Transformer 500 VA
Protective Device Secondary Fuse
Enclosure Style - Transformer Open
Mounting - Transformer Foot
Phase - Electrical1
Hz - Electrical60 Hz
Specifications:
Epoxy encapsulated (50 to 750 VA), epoxy resin impregnated (1 to 5 kVA)
Completely seals the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments
Fuse clips (most models), factory mounted for integral fusing on the secondary side to save panel space, save wiring time and save the cost of buying an add-on fuse block or kit
Integrally molded barriers, between terminals and transformer, protect against electrical creepage, up to 30% greater terminal contact area permits low loss connections, extra deep barriers reduce the chance of shorts from frayed leads or careless wiring.
Terminals, molded into the transformer, are difficult to break during wiring, a full quarter-inch of thread on the #10-32 terminal screws prevents stripping and pullout
Jumpers supplied, two jumper links are standard with all transformers which can be wired for dual primary voltages
Laminations are built with silicon steel to minimize core losses and to increase optimum performance and efficiency
Insulation materials are of the highest rating available for the temperature class
Robust design
240/480, 230/460, 220/440 VAC primary voltage
120/115/110 VAC secondary voltage
0.29 A max at 240 VAC
Sold out
