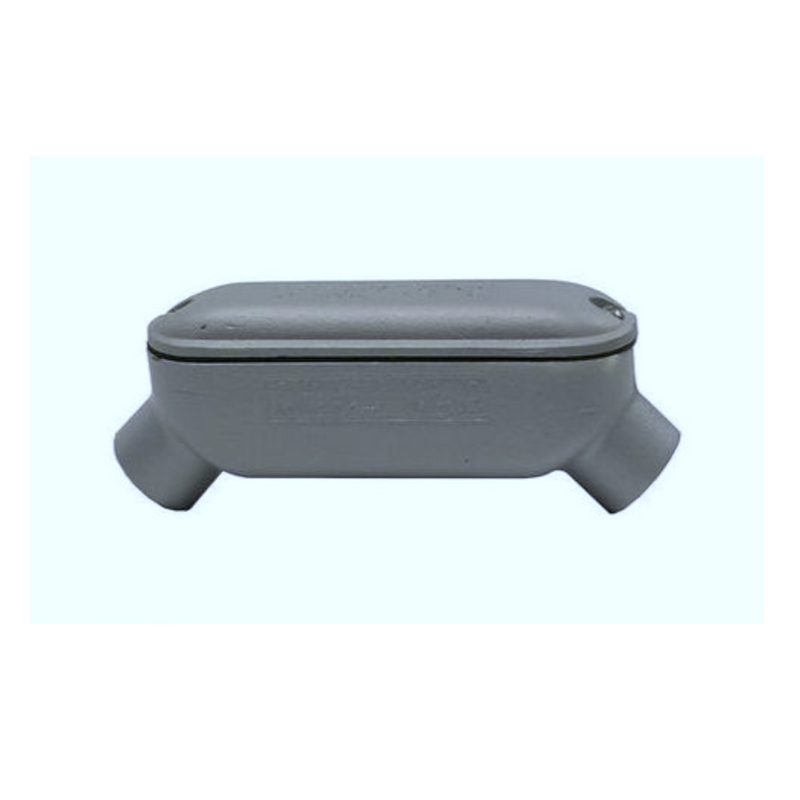

Appleton BUB400M 4″ Mogul UNILET™ Type UB Conduit Outlet Body (New Surplus)
Heavy‑duty malleable‑iron conduit body with triple‑coat finish, neoprene‑gasketed cover, and NEC 6X (NEMA FB‑1) rating for rigid metal conduit and IMC applications.
Features
- 960 cu in wiring capacity for large conductors
- Triple‑coat corrosion protection: zinc, chromate, epoxy
- Captive stainless‑steel cover screws prevent loss
- Built‑in rollers in cover facilitate cable pulling
- Tapered female NPT threads for secure conduit connections
Included
- BUB400M outlet body
- Assembled neoprene‑gasketed cover
Specifications
| Material | Malleable iron |
|---|---|
| Finish | Zinc electroplate, chromate, epoxy powder coat |
| Hub Size | 4 in |
| Cubic Capacity | 960 cu in |
| Dimensions (L × W × H) | 30.88 in × 5.63 in × 10.31 in |
| Weight | 10 lb |
| Connection | Tapered female threaded (FNPT) |
| Enclosure Rating | NEC 6X, UL 514B, CSA C22.2 No 18.3, NEMA FB‑1 |
| UPC | 781381474283 |
Buyer understands that the Goods described herein are new surplus by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
