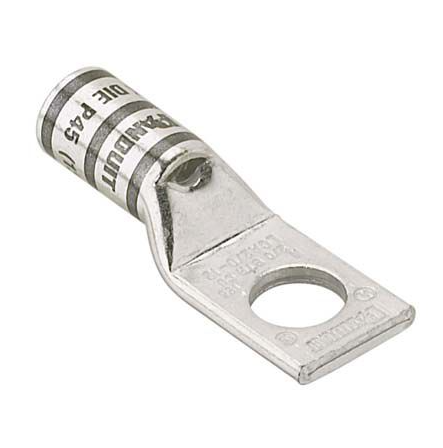

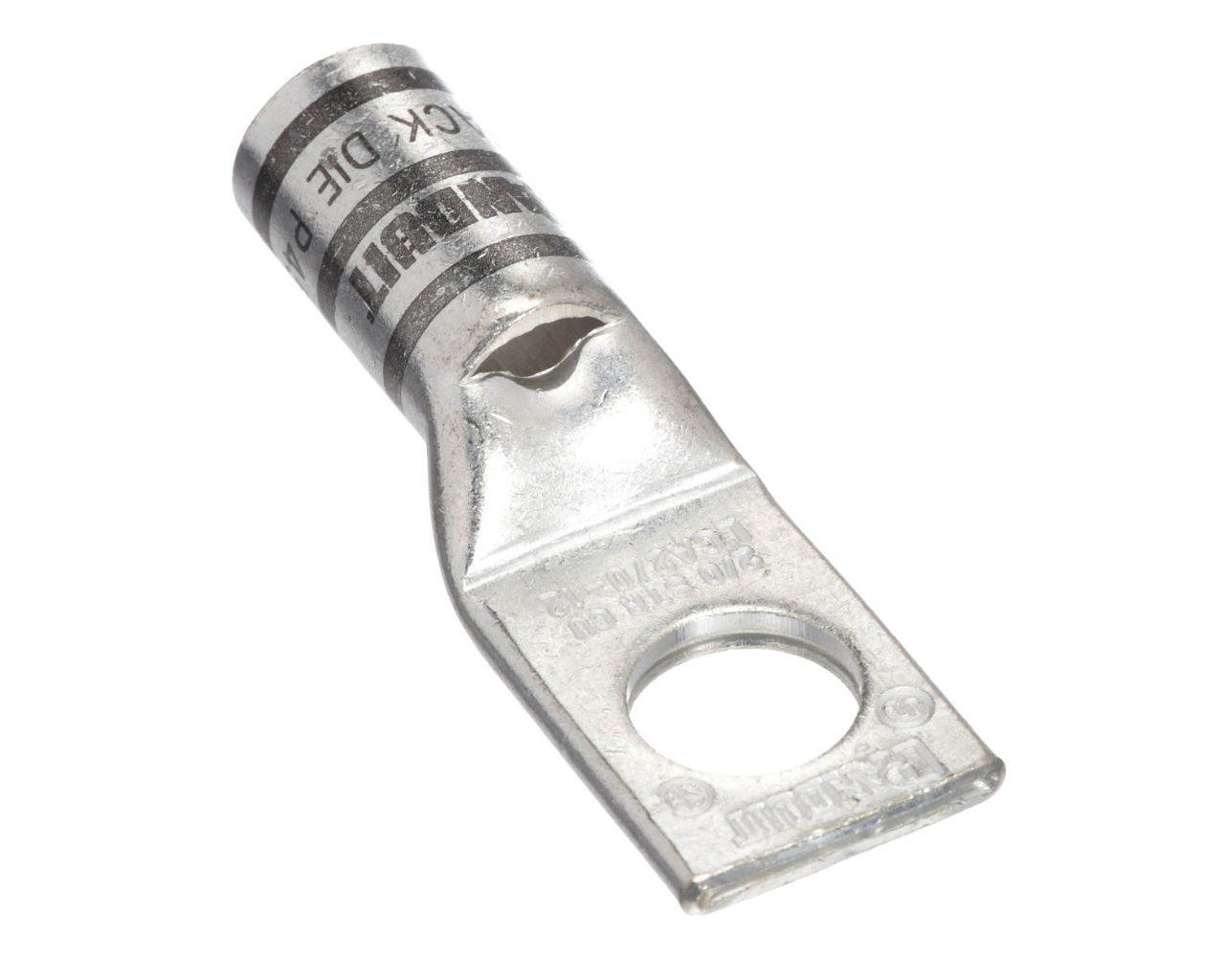

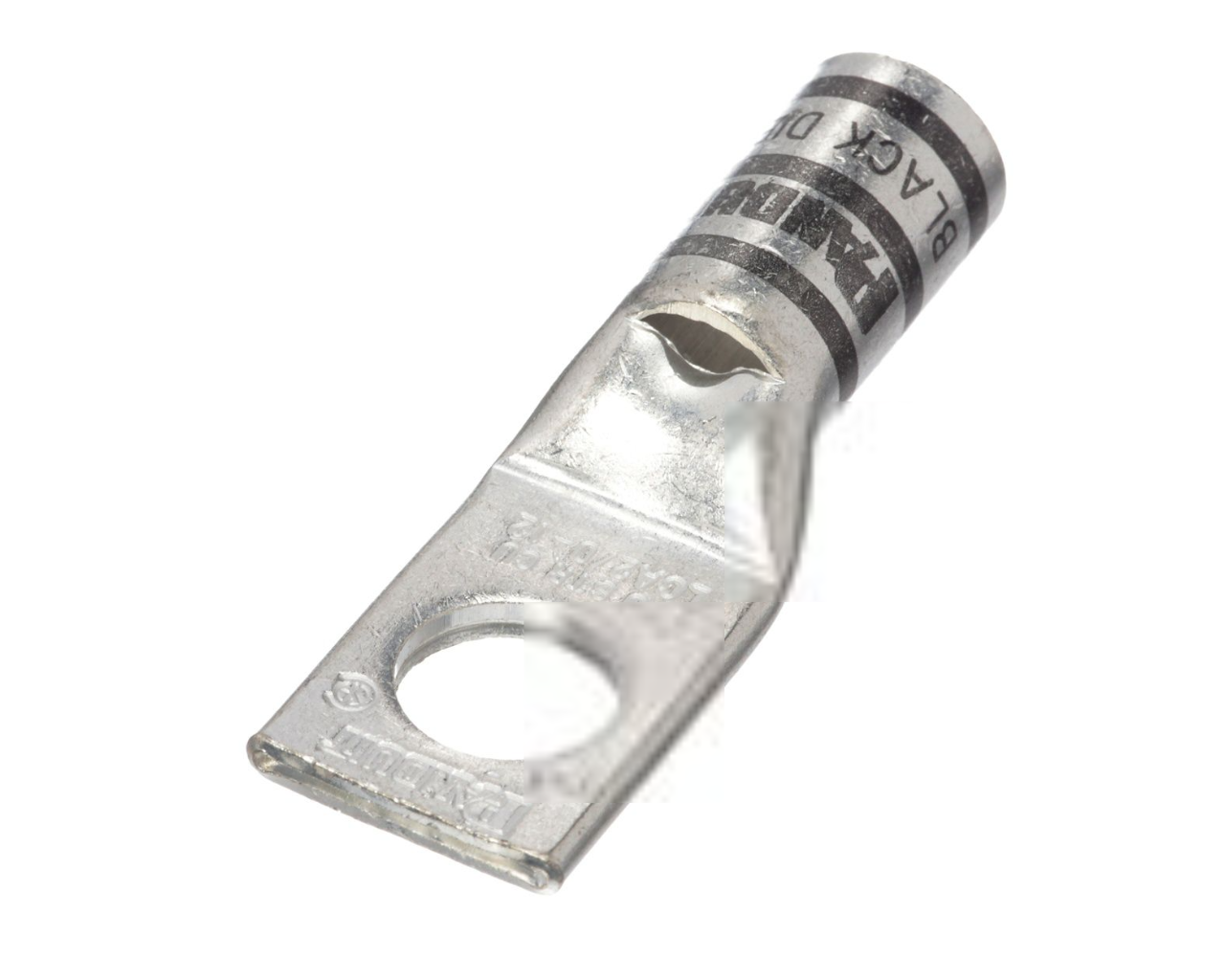

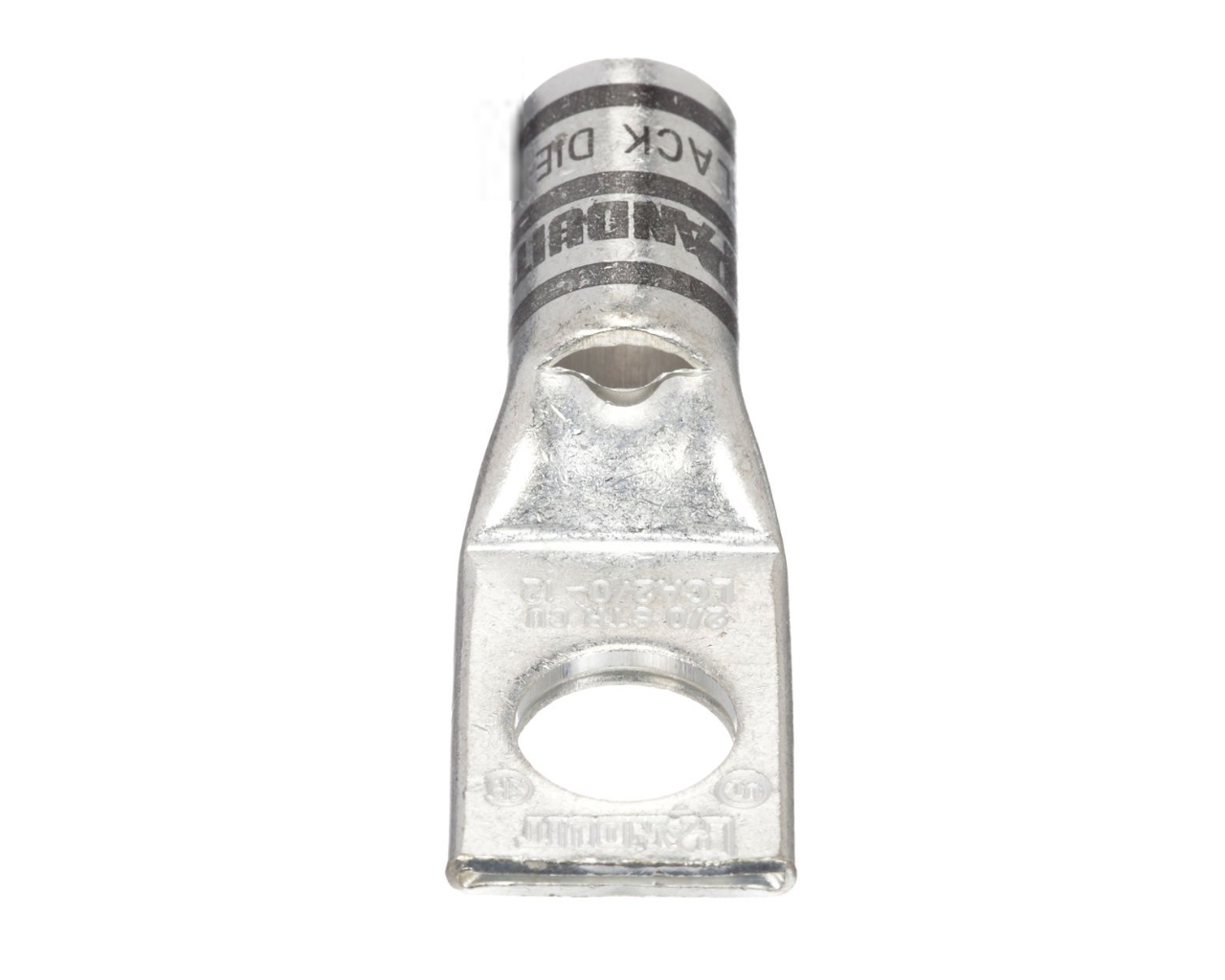

PANDUIT Pan-Lug™ LCA2/0-12-X Comp. Lug, 2/0, Tin Plt Copper, Strt, One 1/2" Stud, 10 PER BOX         NEW SURPLUS

The LCA2/0-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.

Specifications

Inside Diameter (In.)

0.45

Inside Diameter (mm)

11.43

Outer Diameter (In.)

0.58

Outer Diameter (mm)

14.73

Product Type

Copper Compression Connectors - Lugs

Lug Type

1 Stud Hole Lug

Base Material

Copper

Copper Code Conductor Size (AWG)

2/0

Sub Brand

Pan-Lug™

Stud Hole Size (In.)

1/2

Stud Hole Size (mm)

12.7

Barrel Type

Standard Barrel with Inspection Window

Barrel Length (In.)

0.98

Barrel Length (mm)

24.9

Tongue Type

Standard

Tongue Width (In.)

0.85

Tongue Width (mm)

21.6

Tongue Angle

Straight

Tongue Thickness (In.)

0.13

Tongue Thickness (mm)

3.3

Overall Length (In.)

2.39

Overall Length (mm)

60.7

Finish/Coating

Tin-Plated

Standards Met

C22.2 No. 65-13, 486A-486B File #E52164

UL Temperature Rating (°C)

90

Maximum Voltage (kV)

35

Color Code

Black

Panduit Die Index Number

P45

Burndy Die Index Number

13

T & B Die Index Number

13

Wire Strip Length (In.)

1-1/16

Wire Strip Length (mm)

27

Part Features

Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.

Shipping Weight: 5.5 lb
