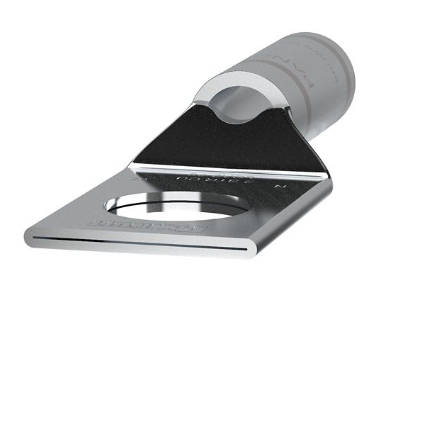

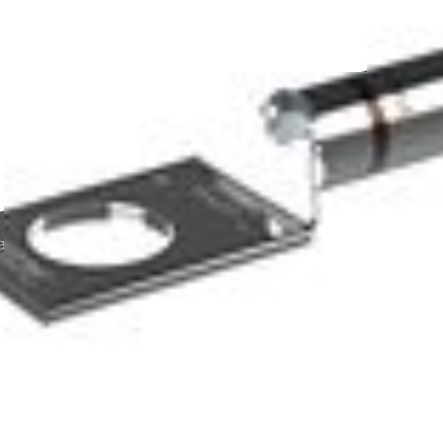

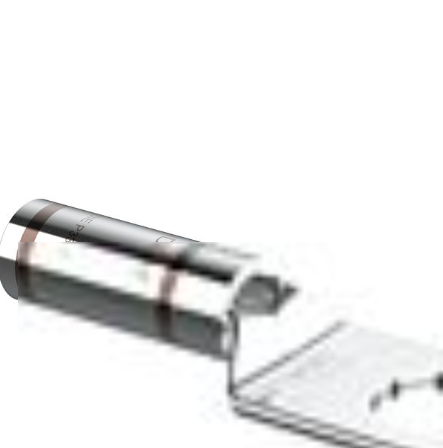

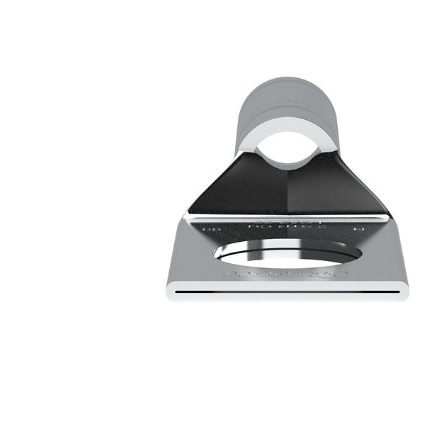

PANDUIT Pan-Lug LCA2-38-Q Comp. Lug

PANDUIT Pan-Lug LCA2-38-Q Comp. Lug

Regular price $221.00 USD
Regular price $260.00 USD Sale price $221.00 USD
Sale Sold out
Shipping calculated at checkout.

PANDUIT Pan-Lug™ LCA2-38-Q Comp. Lug, Tin Plt Copper, Strt, One 3/8" Stud, 25 PER BOX,       NEW SURPLUS

The LCA2-38-Q Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C

Specifications

Inside Diameter (In.) 0.31
Inside Diameter (mm) 7.87
Outer Diameter (In.) 0.42
Outer Diameter (mm) 10.6
Product Type Copper Compression Connectors - Lugs
Lug Type 1 Stud Hole Lug
Base Material Copper
Copper Code Conductor Size (AWG) 2
Sub Brand Pan-Lug™
Stud Hole Size (In.) 3/8
Stud Hole Size (mm) 9.5
Barrel Type Standard Barrel with Inspection Window
Barrel Length (In.) 0.88
Barrel Length (mm) 22.4
Tongue Type Standard
Tongue Width (In.) 0.66
Tongue Width (mm) 16.8
Tongue Angle Straight
Tongue Thickness (In.) 0.1
Tongue Thickness (mm) 2.5
Overall Length (In.) 1.97
Overall Length (mm) 50
Finish/Coating Tin-Plated
Standards Met C22.2 No. 65-13, 486A-486B File #E52164
UL Temperature Rating (°C) 90
Maximum Voltage (kV) 35
Color Code Brown
Panduit Die Index Number P33
Burndy Die Index Number 10
T & B Die Index Number 10
Wire Strip Length (In.) 15/16
Wire Strip Length (mm) 23.6
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
