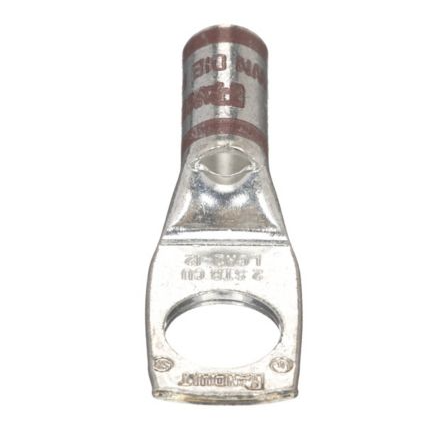

PANDUIT Pan-Lug™ LCA2-12-Q Comp. Lug, Tin Plt Copper, Strt, One 1/2" Stud, 25 PER BOX, NEW SURPLUS
The LCA2-12-Q Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
| Inside Diameter (In.) | 0.31 |
| Inside Diameter (mm) | 7.87 |
| Outer Diameter (In.) | 0.42 |
| Outer Diameter (mm) | 10.6 |
| Product Type | Copper Compression Connectors - Lugs |
| Lug Type | 1 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 2 |
| Sub Brand | Pan-Lug™ |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.75 |
| Tongue Width (mm) | 19.1 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 2.21 |
| Overall Length (mm) | 56.1 |
| Finish/Coating | Tin-Plated |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Brown |
| Panduit Die Index Number | P33 |
| Burndy Die Index Number | 10 |
| T & B Die Index Number | 10 |
| Wire Strip Length (In.) | 15/16 |
| Wire Strip Length (mm) | 23.6 |
| Part Features | Tin plated to inhibit corrosion, color coded barrel, inspection window, NEBS level 3. |
