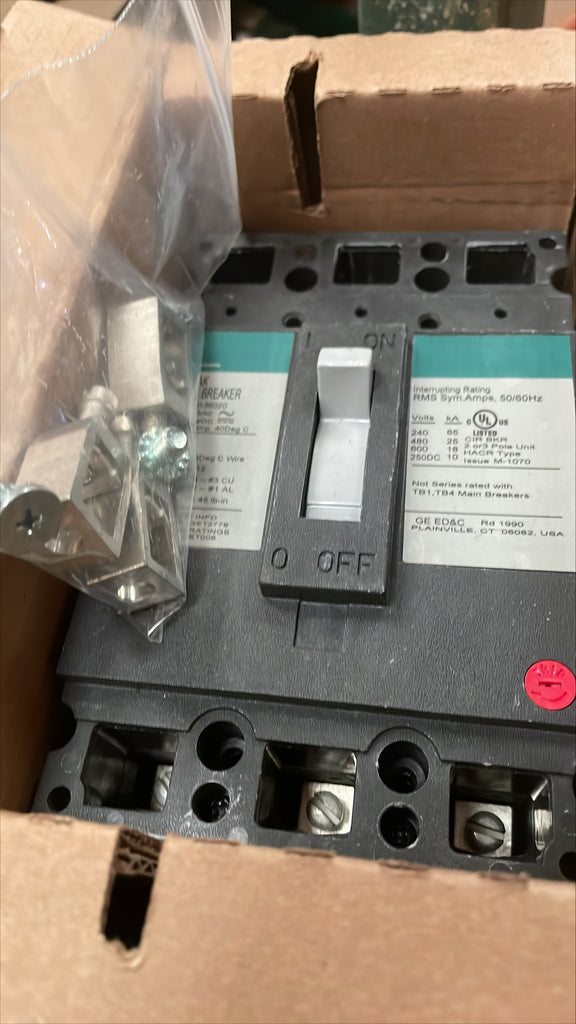

General Electric THED136020 3 Pole Circuit Breaker-New Surplus
Ready to Ship Next Business Day
The General Electric THED136020 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 600V. It has an interrupting rating of 10kA at 125/250VDC, 25kA at 277/480VAC, 65kA at 120/240VAC. The THED136020 has a bolt-on connection type and includes LI - long time and instantaneous functions.
|
Brand |
General Electric |
|
Series |
THED |
|
Amperage |
20 |
|
Voltage |
600 |
|
Poles |
3 |
|
Phase |
3 |
|
Approval |
UL |
|
Interrupting Rating |
10 at 125 V dc kA, 10 at 250 V dc kA, 25 at 277 V ac kA, 25 at 480 V ac kA, 65 at 120 V ac kA, 65 at 120/240 V ac kA, 65 at 240 V ac kA |
|
Connection Type |
Bolt-On |
|
Protection |
Thermal Magnetic |
|
Functions |
LI - Long-Time and Instantaneous |
|
Terminal Connection |
Load side lug |
|
Length (in) |
3.9 |
|
Width (in) |
4.15 |
|
Height (in) |
6.3 |
|
Mpn |
THED136020-R |
|
Upc |
783164062892 |
|
Gtin |
783164062892 |
Disclaimer
Buyer understands that the Goods described herein are new surplus by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
**Warehouse CB2
