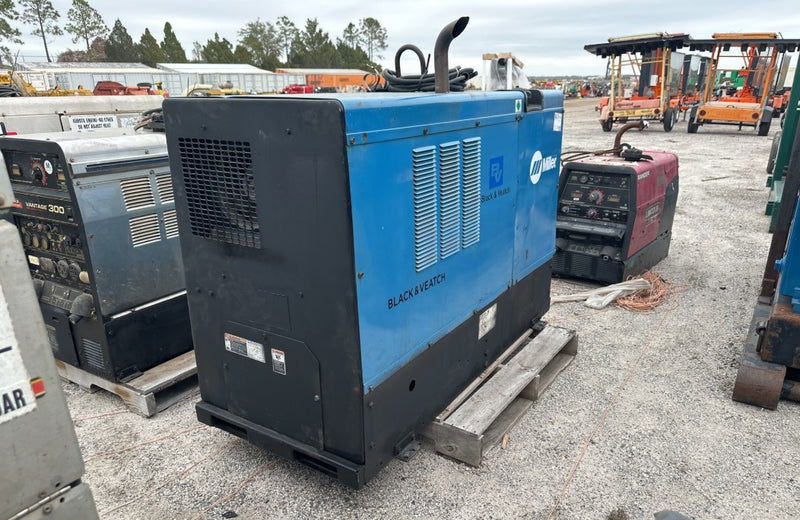

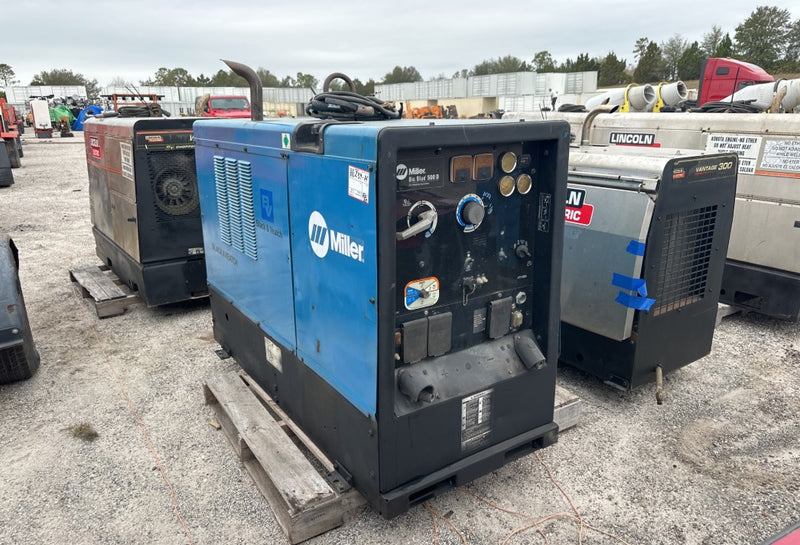

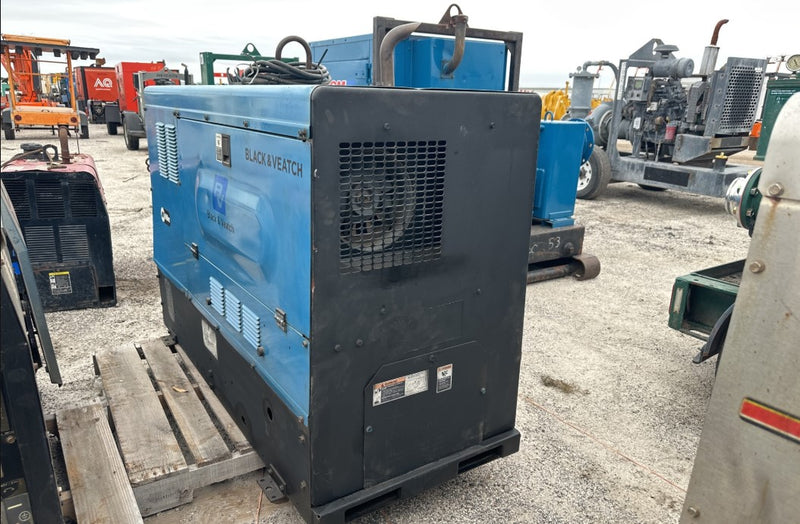

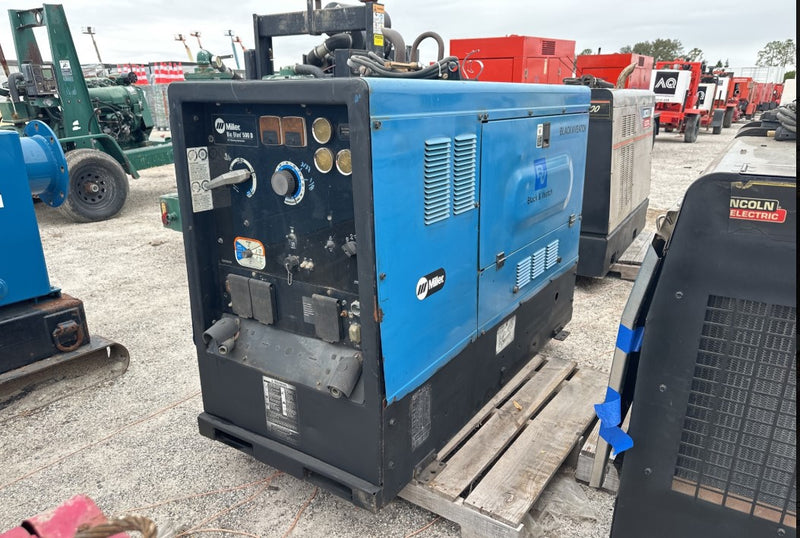

Miller Big Blue 500D Diesel Welder - Reconditioned
Miller Big Blue 500D Diesel Welder - Reconditioned
Miller Big Blue 500D Diesel Welder - Reconditioned
Miller Big Blue 500D Diesel Welder - Reconditioned
Miller Big Blue 500D Diesel Welder - Reconditioned
Miller Big Blue 500D Diesel Welder - Reconditioned
Miller Big Blue 500D Diesel Welder - Reconditioned
Miller Big Blue 500D Diesel Welder - Reconditioned
Miller | Miller 907331 | 7.1596E+11

Miller Big Blue 500D Diesel Welder - Reconditioned


Sale price $29,275   Regular price $41,825 Save $12,550
Low Stock (2)

 More payment options
American Express Apple Pay Discover Mastercard PayPal Shop Pay Visa

Product Description

Miller Big Blue 500D Diesel Welder - Reconditioned

Product Details

Process Air Carbon Arc Cutting and Gouging (CAC-A); Flux-Cored Welding (FCAW); MIG Welding (GMAW); Stick Welding (SMAW); TIG Welding (GTAW) Application Construction; Fabrication; Infrastructure; Maintenance and Repair Engine Brand Kubota Welding Power Source Type CC/CV Rated Output @ Duty Cycle (MIG)400 A @ 36 V,100%; 450 A @ 38 V, 100%; 500 A @ 40 V,100% Rated Output @ Duty Cycle (Stick)400 A @ 100%; 450 A @ 100%; 500 A @ 100% Rated Output @ Duty Cycle (Stick)

400 A @ 36 V,100%

450 A @ 38 V, 100%

500 A @ 40 V,100%

Rated Output @ Duty Cycle (TIG)400 A @ 36 V,100%; 450 A @ 38 V, 100%; 500 A @ 40 V,100% Remote Connection Type14-Pin (Miller) Sound Level65.9 dB @ 23 ft; 74.3 dB @ 23 ft (Weld) Standards CSA Certified Start Type Electric Weight1,750 lb Welder Series Big Blue 500 Pro Engine Model Kubota V2403 Enhanced Process Pulsed MIG (GMAW-P); RMD Fuel Tank Capacity25 gal Manufacturer Part Number907736 Max. Amperage Range (Stick)Greater than 300 A Maximum Amperage (MIG)500 A Maximum Amperage (Stick)500 A Maximum Amperage (TIG)500 A Minimum Amperage (Stick)400 A Minimum Amperage (TIG)400 A Oil Capacity10 qt Open Circuit Voltage92 V DC Overall Depth69.5 in Overall Height46 in Overall Width28.5 in Peak Auxiliary Power27,000 W Phase Three-Phase Polarity DC Fuel Tank Capacity Range Greater than 20 gal Generator Fuel Type Diesel Generator Outlets

20 A 120V GFCI 5-20R (4)

20 A 120V L6-20R (2)

50 A 120/240V 14-50R

50 A 240V 15-50R

Generator Outlets5-20R; 14-50R; 15-50R; L6-20R Horsepower49 hp Horsepower Range Greater than 30 hp Brand MILLER ELECTRIC Circuit Breaker Yes Color Blue Continuous Auxiliary Power20,000 W Coolant Tank Capacity9 qt UNSPSC23171508 Country of Origin USA (subject to change).









Disclaimer

This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.

GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
