Product Description

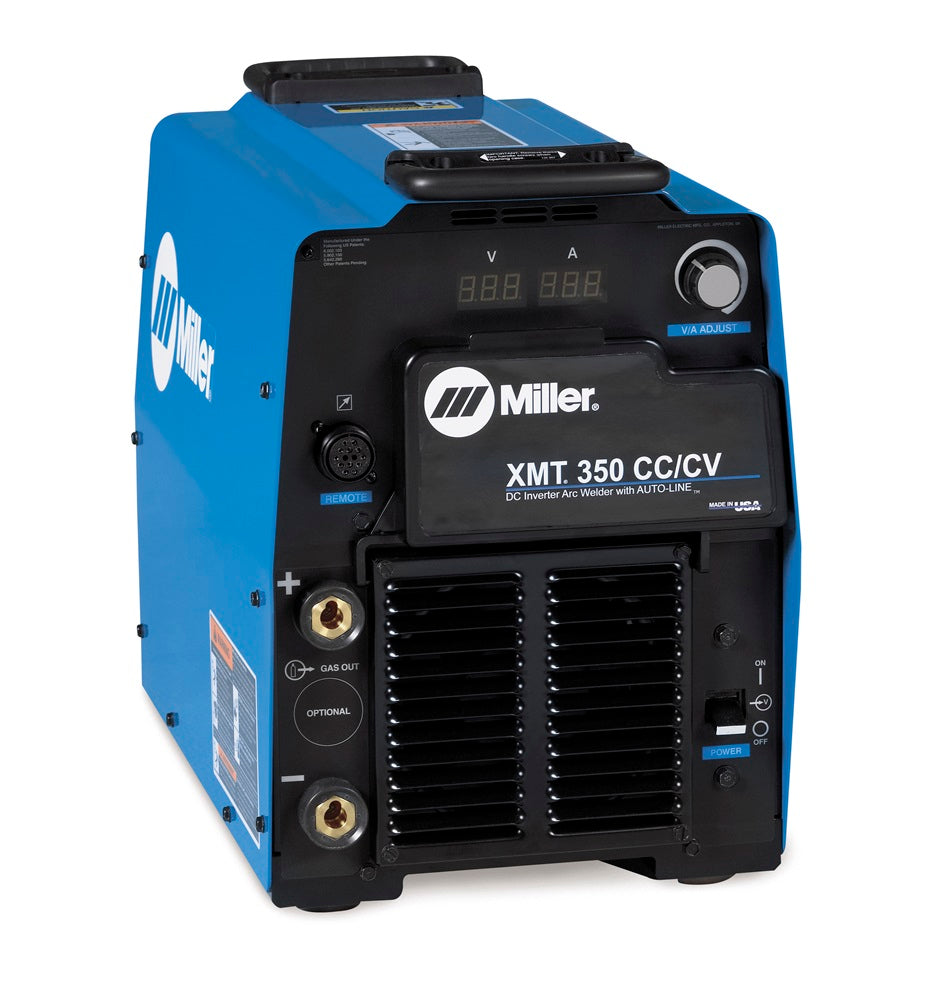

Miller XMT 350 CC/CV Multiprocess Welder
The Miller XMT 350 CC/CV is a portable, high-performance multiprocess welder designed for heavy industrial applications. Capable of MIG, Stick, DC TIG, Flux-Cored welding, and air carbon arc gouging, it operates on both single-phase and three-phase input power with Auto-Line technology, allowing seamless voltage adjustments from 208V to 575V without manual linking. Weighing 80 lbs., it is compact yet durable, built to withstand harsh job site conditions.
Features
- Multiprocess capabilities: MIG, Stick, TIG, Flux-Cored, and air carbon arc gouging
- Auto-Line™ technology supports 208–575V input power
- Process selector switch simplifies setup without losing functionality

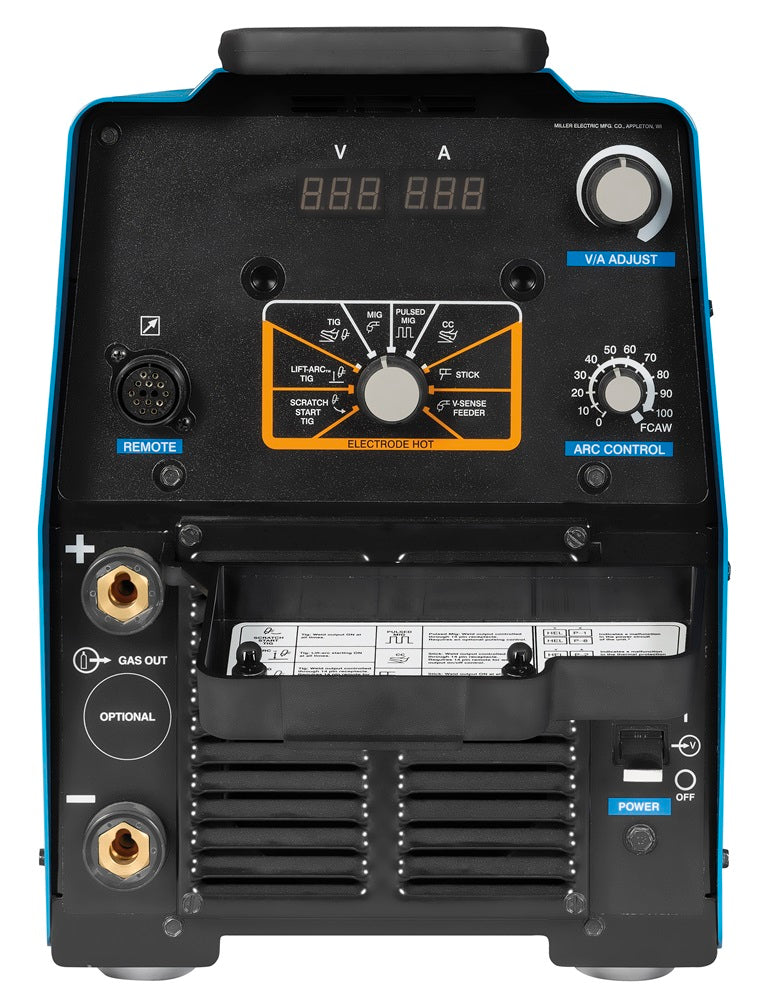

- Large dual digital meters for easy output adjustments
- Ultra-tough polycarbonate-blended cover protects front controls
- Primary voltage display ensures proper voltage setup
- Auto Remote Sense™ detects remote control connection automatically
- Wind Tunnel Technology™ protects internal components from debris
- Fan-On-Demand™ cooling system reduces noise and energy consumption
- Aerospace-grade aluminum case provides durability while reducing weight
- Lightweight and compact for job site mobility
Available Machines
| Serial Number (Partial) | Year of Manufacture |
|---|---|
| MK | 2019 |
| MG | 2016 |
| MD | 2013 |
| LJ | 2008 |
| LG | 2006 |
Specifications
| Manufacturer Part Number | 907161 |
|---|---|
| Processes | MIG, Stick, TIG, Flux-Cored, Air Carbon Arc Gouging |
| Phase | Single-/Three-Phase |
| Input Frequency | 50/60 Hz |
| Input Voltage | 208V, 220–240V, 380–400V, 440–480V, 575V AC |
| Output Range | 10–38V, 15–425A |
| Rated Output @ Duty Cycle | Stick: 300A @ 32V (60%), 350A @ 34V (60%) MIG: 300A @ 32VDC (60%), 350A @ 34VDC (60%) TIG: 300A @ 32V (60%) (1-Phase), 350A @ 34V (60%) (3-Phase) |
| Maximum Input Current | 40.4A @ 208V (3-Phase), 60.8A @ 208V (1-Phase) |
| Open Circuit Voltage | 75V DC |
| TIG Arc Start | Lift Arc Start |
| Remote Connection Type | 14-Pin (Miller) |
| Overall Dimensions | 26" Depth x 16" Height x 20" Width |
| Weight | 80 lbs (36.3 kg) |
Documents
Disclaimer
This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
