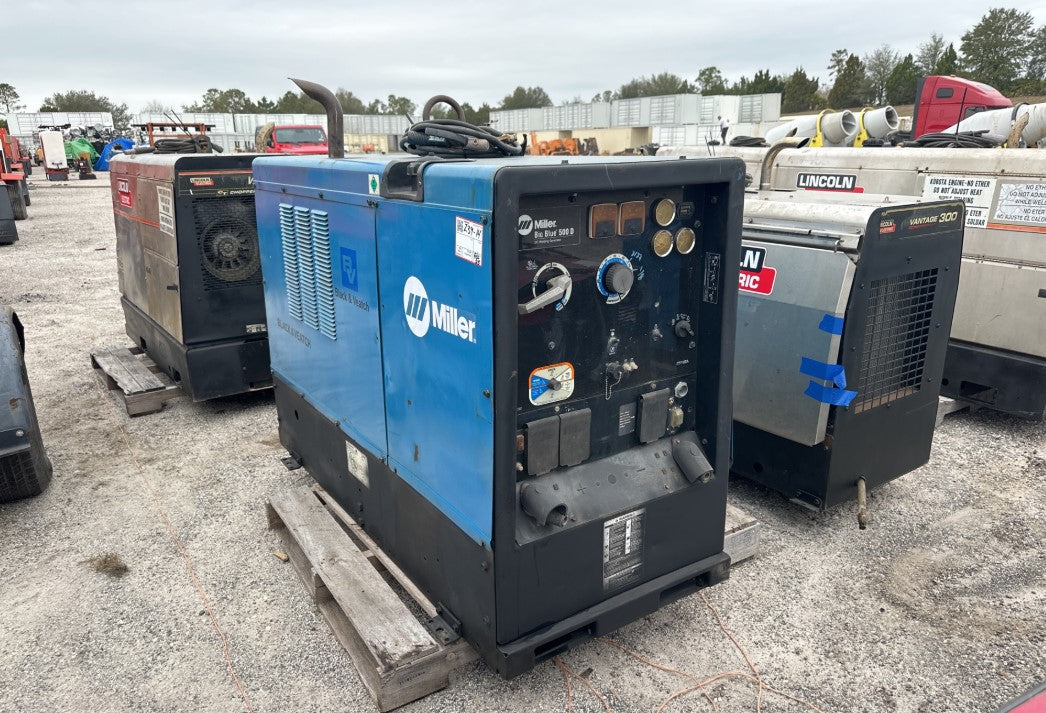

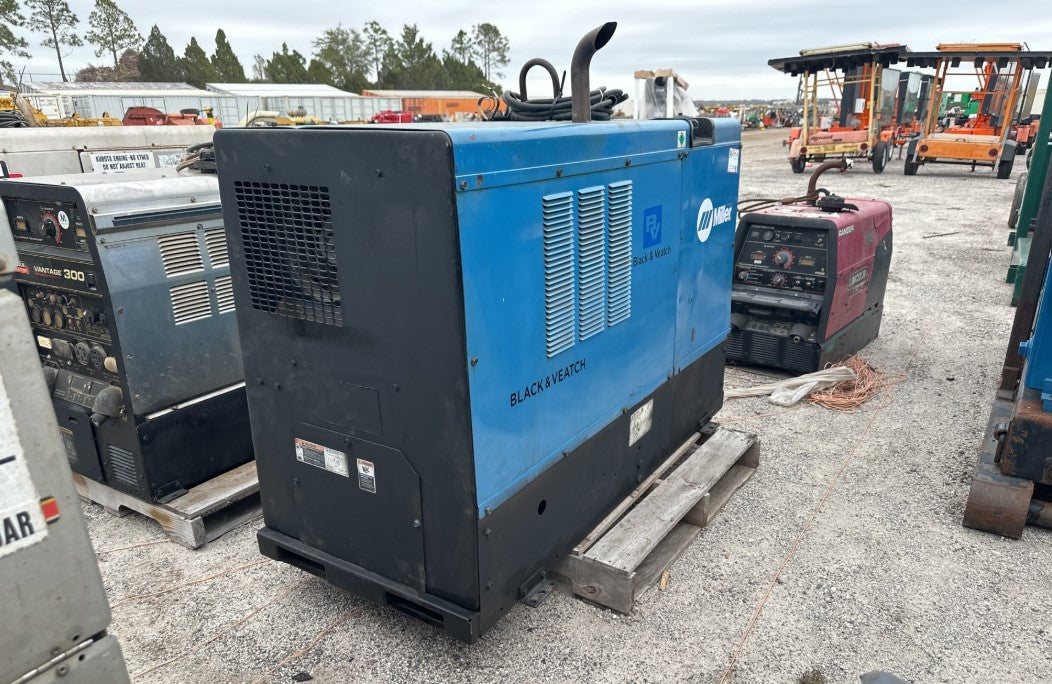

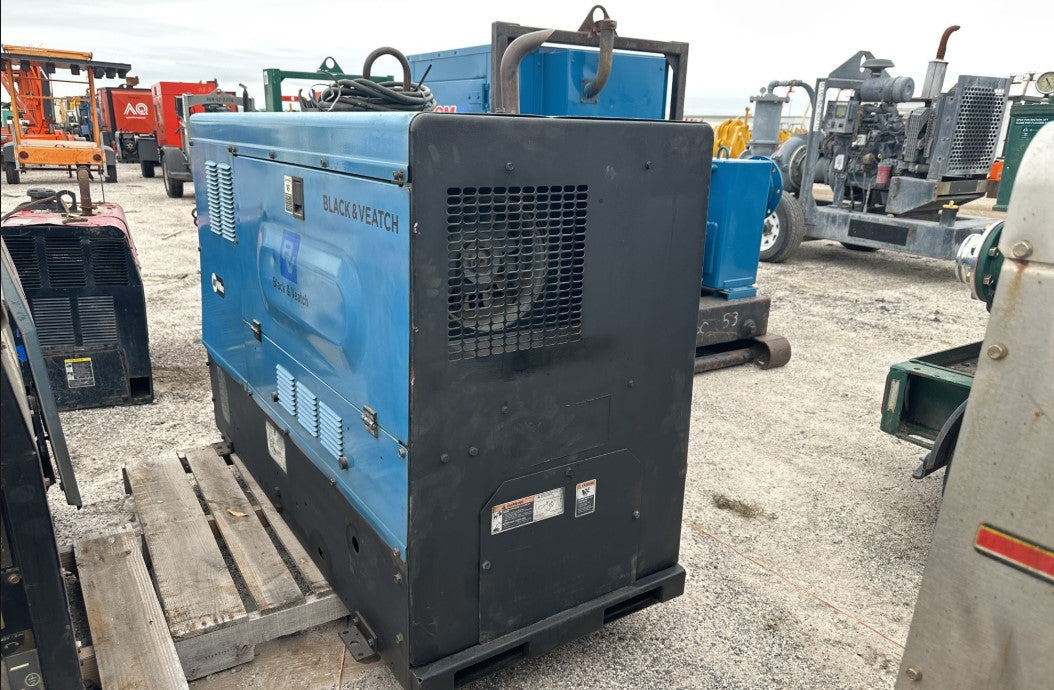

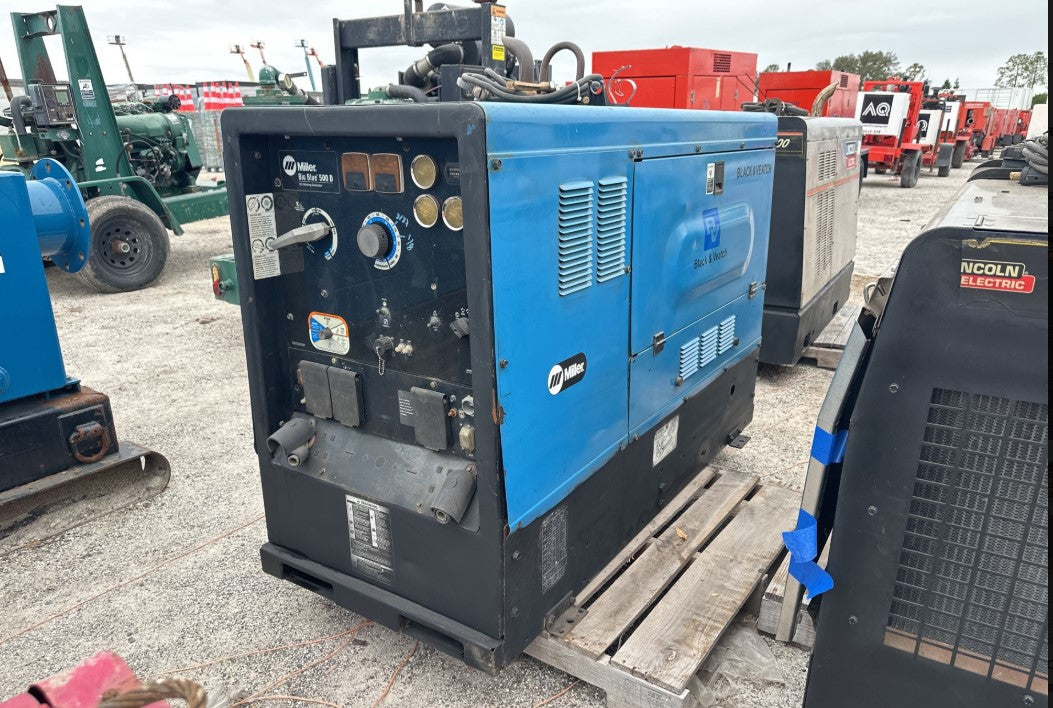

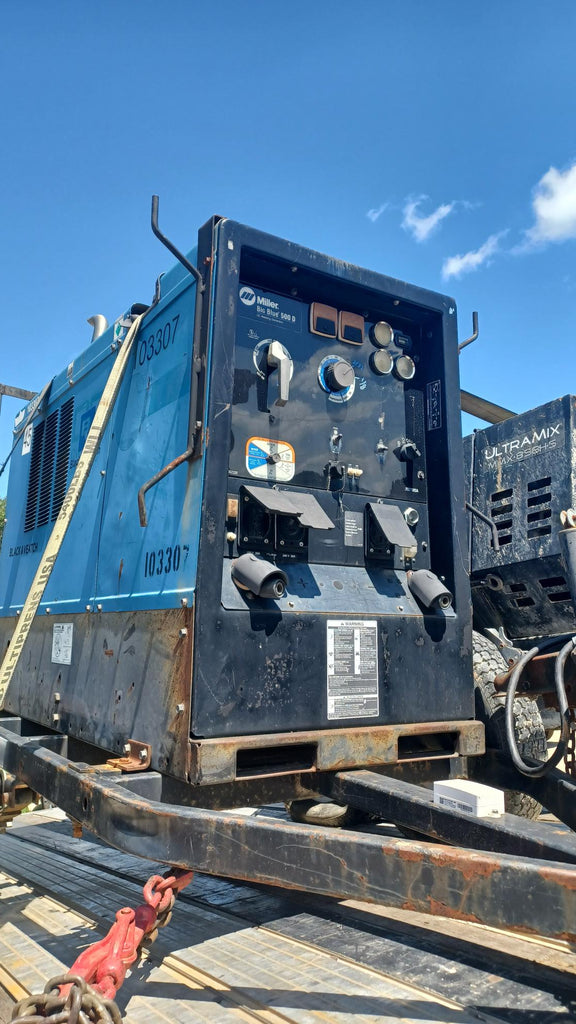

Miller Big Blue 500D (just off the jobsite) Used Trailer Mounted
Process Air Carbon Arc Cutting and Gouging (CAC-A); Flux-Cored Welding (FCAW); MIG Welding (GMAW); Stick Welding (SMAW); TIG Welding (GTAW)
Application Construction; Fabrication; Infrastructure; Maintenance and Repair
Engine Brand Kubota
Welding Power Source Type CC/CV
Rated Output @ Duty Cycle (MIG)400 A @ 36 V,100%; 450 A @ 38 V, 100%; 500 A @ 40 V,100%
Rated Output @ Duty Cycle (Stick)400 A @ 100%; 450 A @ 100%; 500 A @ 100%
Rated Output @ Duty Cycle (Stick)
- 400 A @ 36 V,100%
- 450 A @ 38 V, 100%
- 500 A @ 40 V,100%
Rated Output @ Duty Cycle (TIG)400 A @ 36 V,100%; 450 A @ 38 V, 100%; 500 A @ 40 V,100%
Remote Connection Type14-Pin (Miller)
Sound Level65.9 dB @ 23 ft; 74.3 dB @ 23 ft (Weld)
Standards CSA Certified
Start Type Electric
Weight1,750 lb
Welder Series Big Blue 500 Pro
Engine Model Kubota V2403
Enhanced Process Pulsed MIG (GMAW-P); RMD
Fuel Tank Capacity25 gal
Manufacturer Part Number907736
Max. Amperage Range (Stick)Greater than 300 A
Maximum Amperage (MIG)500 A
Maximum Amperage (Stick)500 A
Maximum Amperage (TIG)500 A
Minimum Amperage (Stick)400 A
Minimum Amperage (TIG)400 A
Oil Capacity10 qt
Open Circuit Voltage92 V DC
Overall Depth69.5 in
Overall Height46 in
Overall Width28.5 in
Peak Auxiliary Power27,000 W
Phase Three-Phase
Polarity DC
Fuel Tank Capacity Range Greater than 20 gal
Generator Fuel Type Diesel
Generator Outlets
- 20 A 120V GFCI 5-20R (4)
- 20 A 120V L6-20R (2)
- 50 A 120/240V 14-50R
- 50 A 240V 15-50R
Generator Outlets5-20R; 14-50R; 15-50R; L6-20R
Horsepower49 hp
Horsepower Range Greater than 30 hp
Brand MILLER ELECTRIC
Circuit Breaker Yes
Color Blue
Continuous Auxiliary Power20,000 W
Coolant Tank Capacity9 qt
UNSPSC23171508
Country of Origin USA (subject to change)
Buyer understands that the Goods described herein have been used by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any repair work or modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
