DNH DSP-15EExmN(T) Loudspeaker Explosive-Proof Horn - New Surplus
DNH DSP-15EExmN(T) Loudspeaker Explosive-Proof Horn - New Surplus
Ready to Ship in 1-2 Business Days
Low stock: 2 left
DNH DSP-15EExmN(T) Loudspeaker Explosive-Proof Horn-New Surplus
Ready To Ship Next Business Day

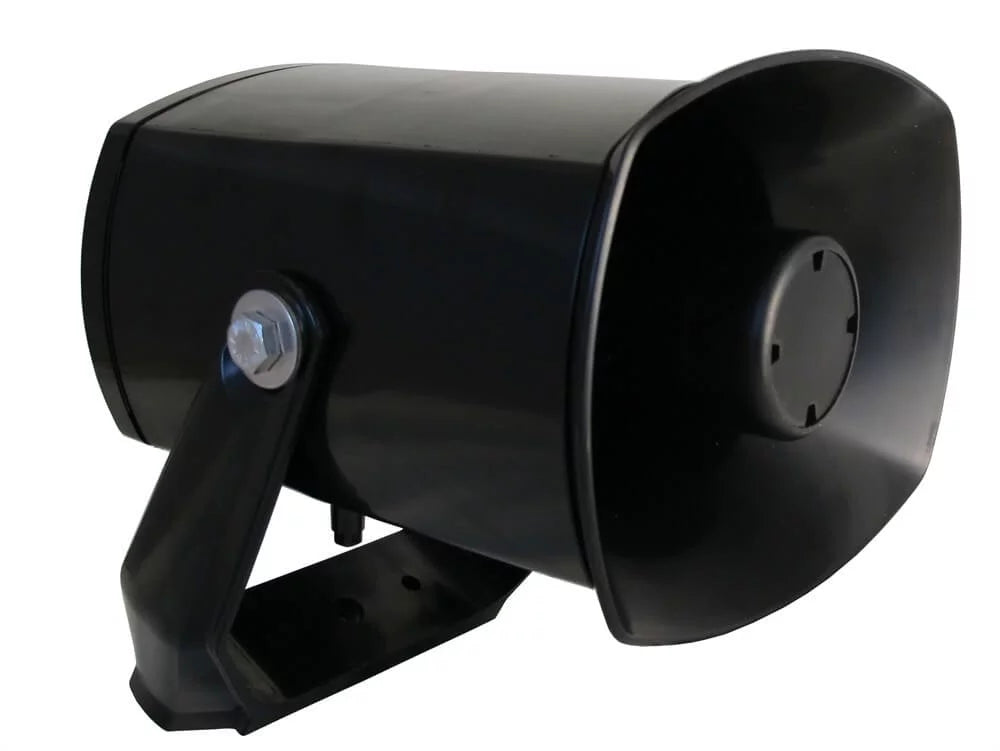

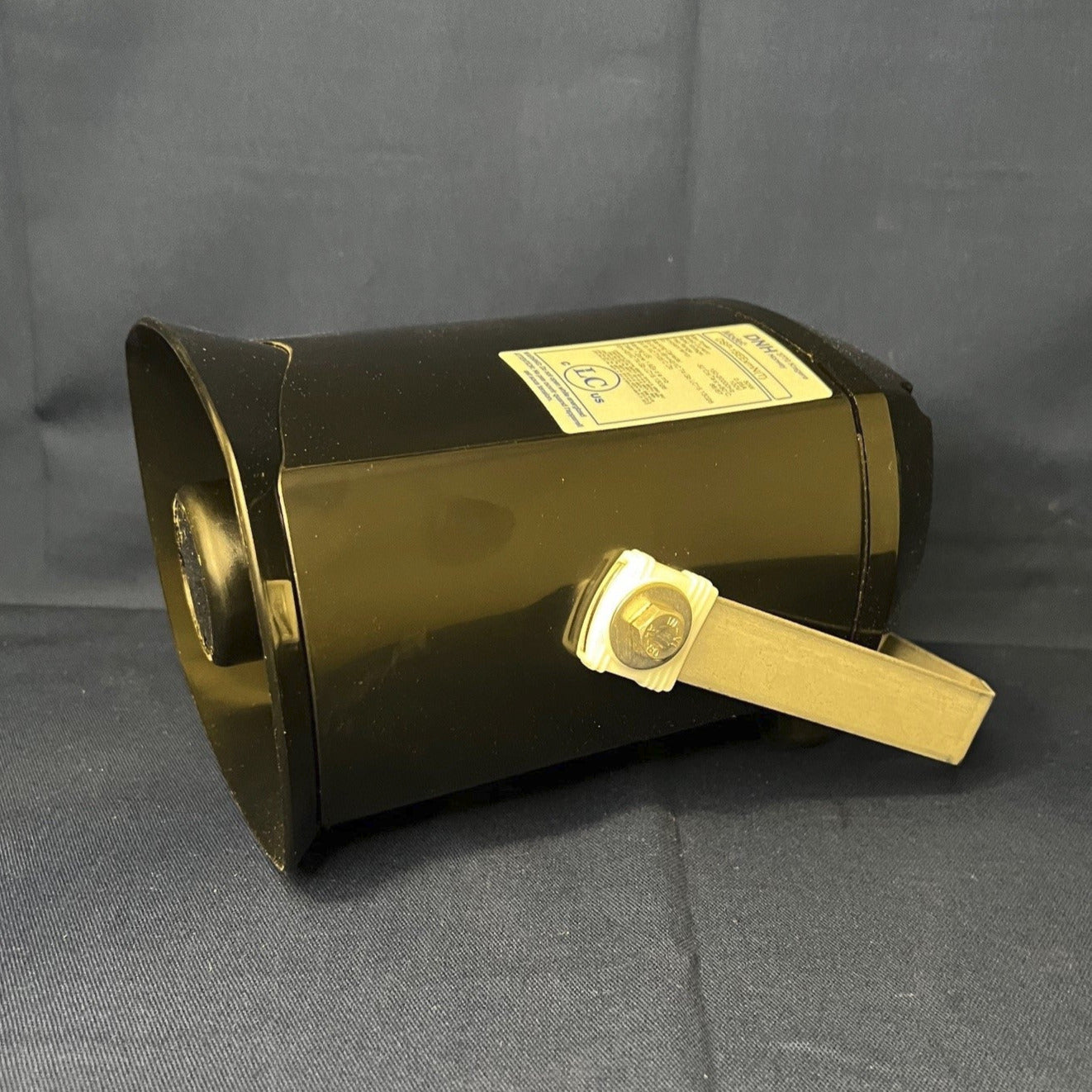

The DNH DSP-15EExmN(T) is a 25-watt re-entrant horn loudspeaker manufactured from non-corroding, UV stable, anti-static black plastic, and is suitable for installation in zone 1/21 hazardous areas.
The standard version is available in gas group IIB, with gas group IIC available on request.
With a maximum sound pressure level of 118dB(A), this robust, lightweight loudspeaker is weatherproof to IP66/67. It features dual M20 gland entries and a large termination chamber fitted with fast installation loop in/loop out terminal blocks for ease of installation. A six-step transformer is supplied to the line voltage models that allow adjustment of sound output by altering the power consumption.
Material/Color | Anti-static PA / Black |
Mounting | Bracket / Swivel bracket |
Termination | E-chamber / Push terminal |
Weight | 2.2 kg |
IP Rating | IP66 / IP67 |
Min/Max amb temp | -50 °C / 60 °C |
Rated power | 25 W |
SPL 1W/1m: | 106 db |
SPL Rated Power | 118 db |
Effective freq. Range | 380 - 8000 Hz |
Dispersion (-6dB) 1kHz / 4kHz | 120° / 37° |
Options | Impedance / Label / Transformers |
