Dialight HZXS45

Dialight HZXS45 LED Light Area Stanchion Mount 45 Degree Bracket - New Surplus

Ready to Ship in 1 - 2 Business Days

* Shipping Calculated at Checkout

$64.90

SAVE $13.72

American Express Apple Pay Discover Meta Pay Mastercard PayPal Shop Pay Visa

Out of stock

Product Description

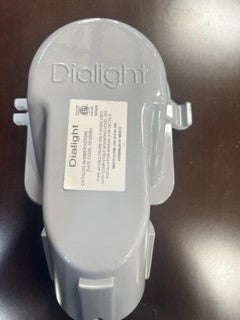

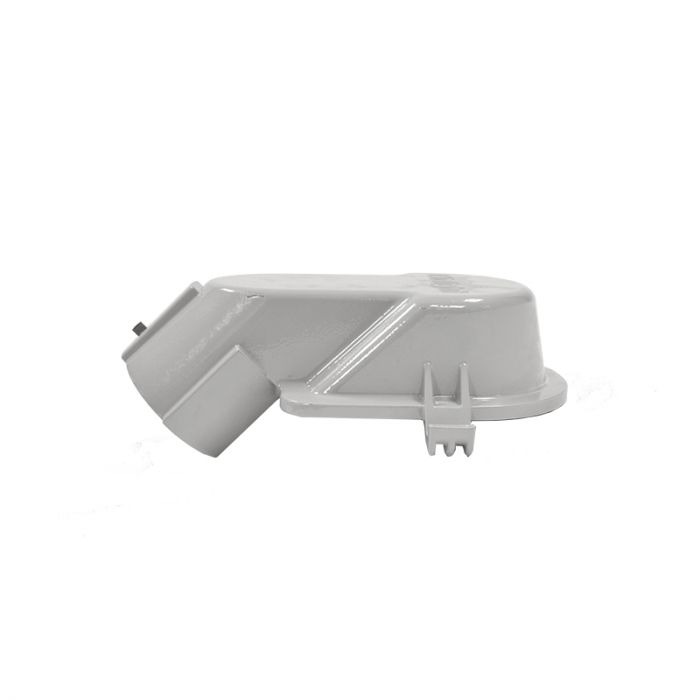

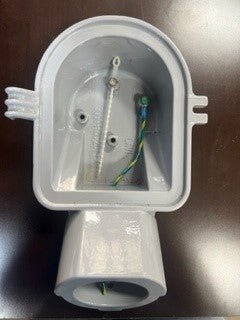

Dialight HZXS45 LED Light Area Stanchion Mount 45 Degree Bracket-New Surplus

Ready To Ship Next Business Day

Angle: 45 Degree; Type of Part: Bracket; Used With: Dialight Vigilant Area Lights

Electrical Specifications: Operating voltage: 100-277 VAC 50/60 Hz, 120-250 VDC Operating temperature: -40°F to +149°F (-40°C to +65°C) EMC: FCC Title 47, Subpart B, Section 15, Class A device CISPR-15 RF Immunity 20V/m 80MHz-1GHz. Transient protection: 6 kV, 2 Ohm line-line and line-ground Harmonics: IEC 61000-3-2, Class C THD: < 20% Power factor: > 0.9

Fixture weight: UMA models: 12 lb (5.5 kg) - Polycarbonate lens 15 lb (6.8 kg) - Tempered glass lens Wall mount models: 15 lb (6.8 kg) - Polycarbonate lens 18 lb (8.2 kg) - Tempered glass lens 45° wall mount models: 14 lb (6.4 kg) - Polycarbonate lens 17 lb (7.7 kg) - Tempered glass lens 45° stanchion mount: 15 lb (6.8 kg) - Polycarbonate lens 18 lb (8.2 kg) - Tempered glass lens Ceiling mount: 14 lb (6.4 kg) - Polycarbonate lens 7 lb (7.7 kg) - Tempered glass lens Shipping weight: Add 2 lb (0.91 kg) to weights above Impact rating: IK10 - Polycarbonate lens IK07 - Tempered glass lens Cabling: 14” leads 1.02 mm 18 AWG

Specifications

Dimensions
0° Wall Mount
45° Wall Mount
45° Stanchion Mount

Used for Models

HZXW01
HZXW45

HZXS45

Shipping Weight: 6.0 lb

Disclaimer Buyer understands that the Goods described herein are new surplus by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product. The buyer shall have fifteen (15) days from the date of delivery to accept product. We offer a 1-year operational warranty on all reconditioned equipment.
