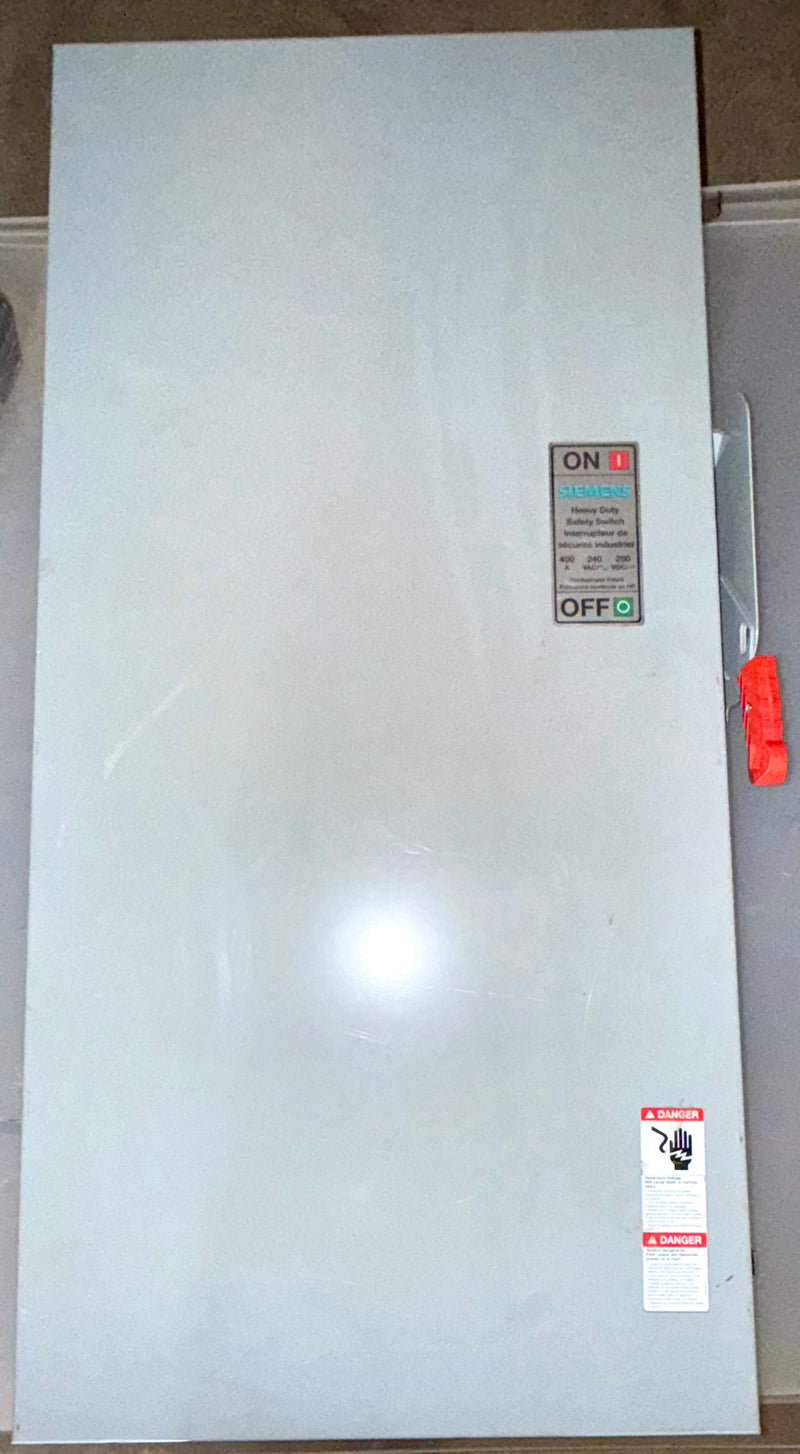

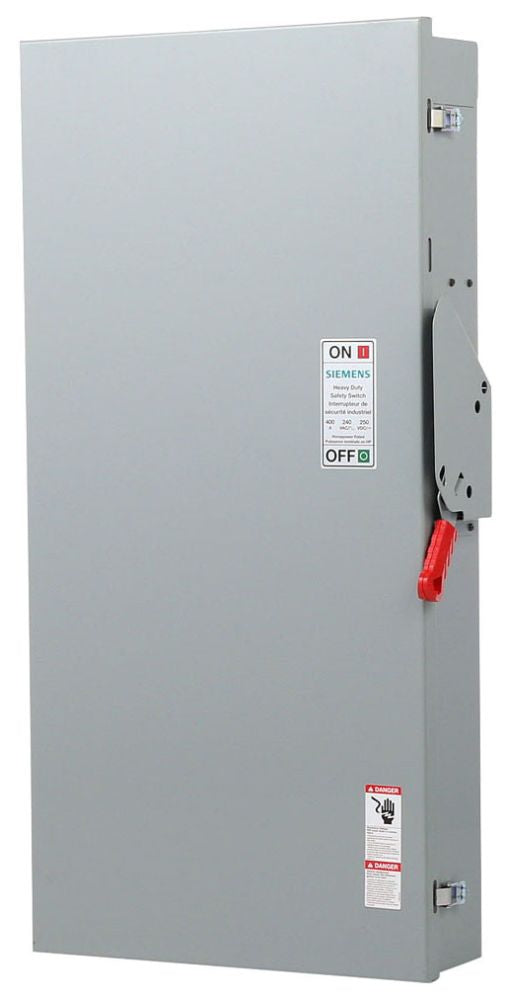

Siemens HF325NA 400A 3-Pole Heavy Duty Safety Switch 240V- Used
The Siemens HF325NA is a 400A, 3-pole, fusible heavy-duty safety switch rated for 240V applications. Designed for industrial environments, it features a robust steel enclosure and surface mount installation, ideal for dry locations.
Features

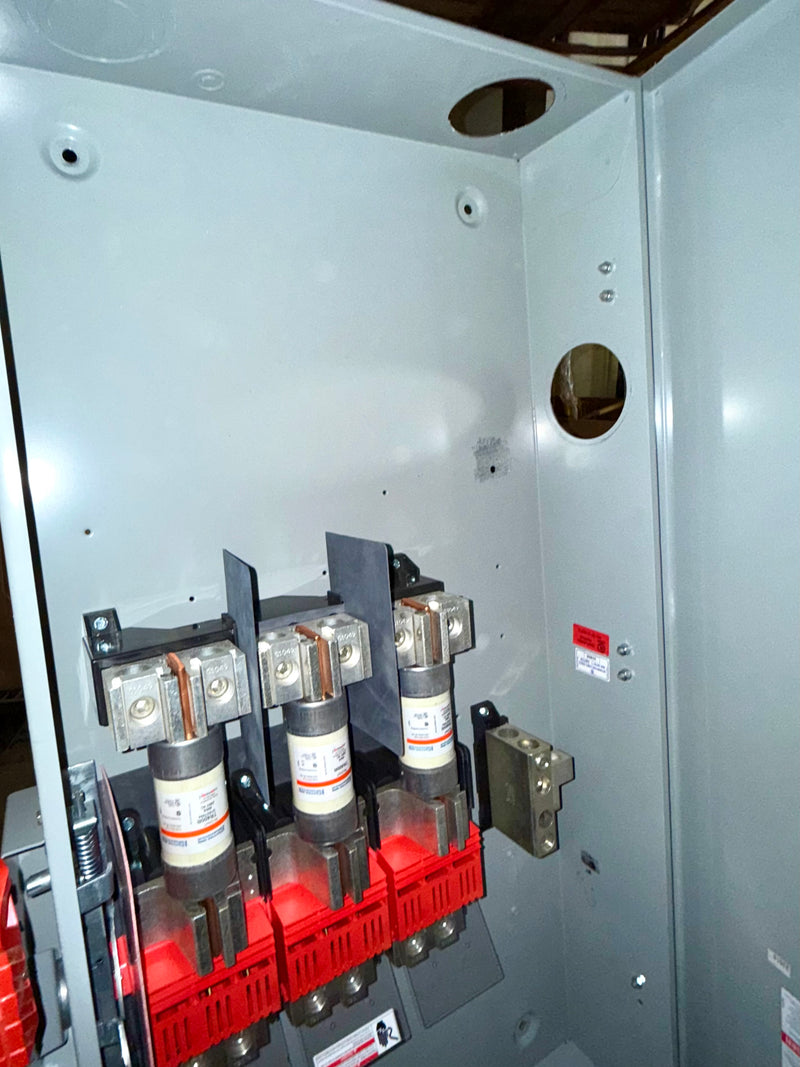

- Heavy-duty fusible disconnect switch
- Rated for 400 Amps and 240 VAC
- 3-pole, single throw configuration
- Surface mount steel enclosure
- Mechanical lug terminals
- NEMA 1 rating for dry locations
Included
- Siemens HF325NA Safety Switch
- Steel Enclosure (NEMA 1)
- Lever Actuator
Specifications
| Model | HF325NA |
|---|---|
| Voltage Rating | 240 VAC |
| Amperage | 400 A |
| Poles | 3 |
| Contact Configuration | 3PST |
| Mounting | Surface |
| Terminal Type | Mechanical Lug |
| Enclosure Type | NEMA 1 |
| Material | Steel |
| Frequency | 50/60 Hz |
| Short Circuit Rating | 200 kA |
| Horsepower | 50 hp |
| Actuator | Lever |
| Insulated | No |
Dimensions
| Height | 56.07 in |
|---|---|
| Width | 24.65 in |
| Depth | 14.68 in |
| Weight | 99.8 lbs |
Buyer understands that the Goods described herein have been used by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any repair work or modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
