Product Description

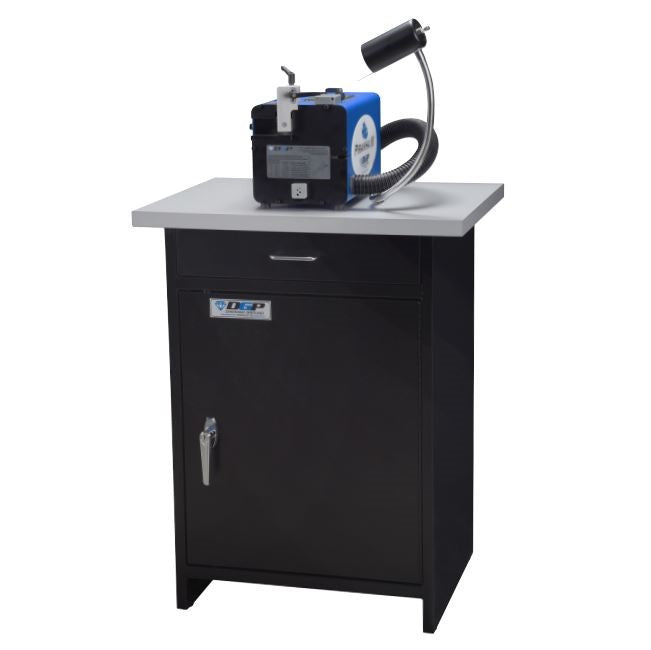

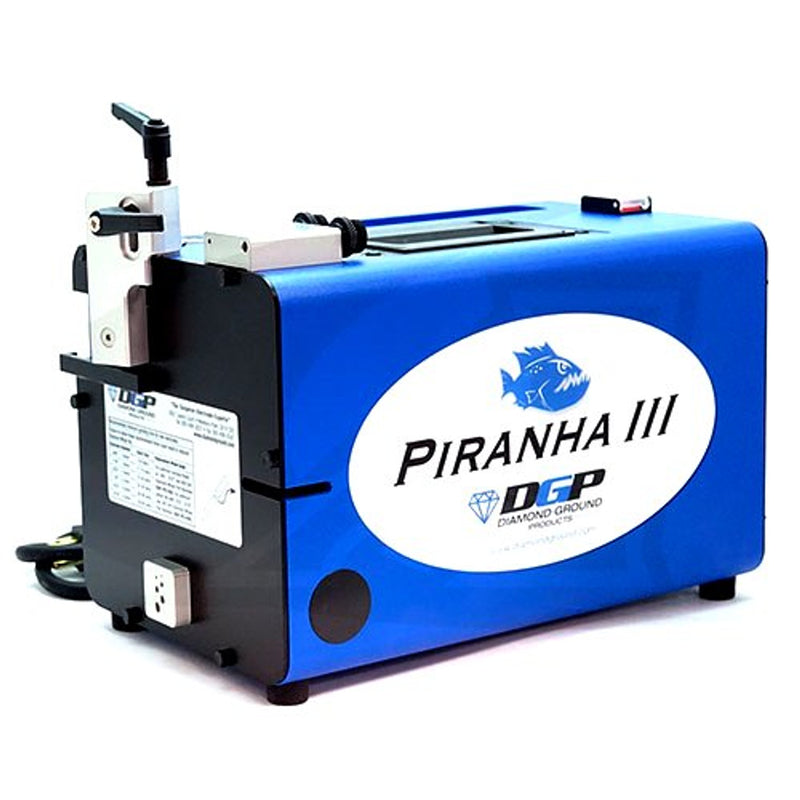

Diamond Ground Products DGP-PG3-A-V2 Piranha III Tungsten Grinder with Vacuum System - Reconditioned with 1 Year Operational Warranty
Description:
The Piranha III Tungsten Grinder offers easy setup, optimal consistency, and near-perfect repeatability through its compact, durable design. Longitudinal 20 RA grinding maximizes arc starting, stability, electrode life, and weld penetration. The universal collet arm fits six electrode sizes without changes. The angle scale covers 10°-60°. The precision body stop gauge and depth stop ensure exact tungsten points for consistent arc performance. The containment baffle keeps dust inside for safety, with a tip flat block for square grinding and bad tip removal. The electrode notching station simplifies cut-off. The single-sided diamond wheel provides maximum life, and the port is vacuum-ready. Other features include a sliding dust shield, integrated receptacle, recessed handle, on/off LED switch, lightened chassis, and blue powder coat.
Specifications:
Range of Included Angle: 10° - 60°
Electrode Diameters: .040”(1.0mm), 1/16” (1.6mm), 3/32” (2.4mm), 1/8” (3.2mm), 5/32” (4.0mm) & 3/16” (4.8mm)
Minimum Electrode Length: 1.75” (44.5mm)
Voltage: 110/230 VAC, 50/60 Hz
Power Consumption: 500 Watts
Motor: 1/3 hp, 1,700 rpm, 6.0 amps
Length: 20” (508.0mm)
Width: 26” (660.4mm)
Height: 44” (1117.6mm)
Weight: 117 lbs (53.0 kg)
Documents
Disclaimer
This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
