Product Description

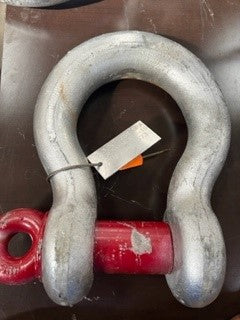

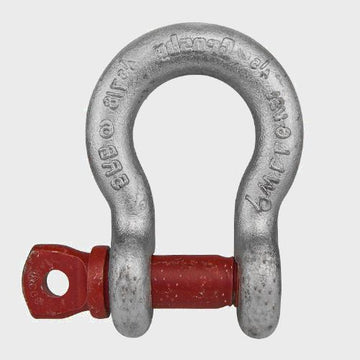

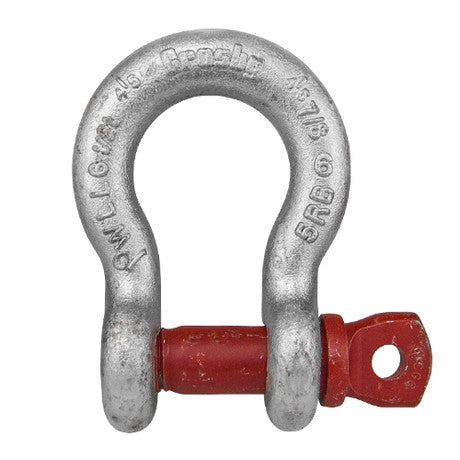

Crosby G-209 1-3/4 inch Load Tested Screw Pin Anchor Shackle-25 Ton WLL-Reconditioned
Ready To Ship Next Business Day
Load Tested at 125%
Meets performance requirements of Grade 6 shackles
Forged, Quenched & Tempered, with alloy pins
Working Load Limit and Grade 6 permanently shown on every shackle
Hot-dip galvanized (G)
Sizes 3/8" and below are mechanically galvanized
Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles
Shackles 25t and larger are RFID equipped
Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification; proof testing and certification available when requested at the time of order, charges will apply
Approved for use at -40° C (-40° F) to 204° C (400° F)
All 209 and 210 shackles can meet charpy requirements of 42 Joules (31 ft-lb) avg. at -20° C (-4° F) upon special request
Meets or exceeds all requirements of ASME B30.26
Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting Appliances available; certificates available when requested at time of order and may include additional charges
G-209 Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271G, Type IVA, Grade A, Class 2, except for those provisions required of the contractor
Look for the Red Pin®... the mark of genuine Crosby quality
Specifications
MPN: 1018632 Model - G-209 Size - 1-3/4" Type - Screw Pin Anchor Material - Carbon Steel WLL (tons) - 25 WLL (lbs) - 55,000 Safety Factor - 6:1 Inside Length - 7.00" Inside Width - 5.00" Throat Opening - 2.88" Pin Diameter - 2.00" Approx. Weight (lbs) - 27.78Disclaimer
This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
