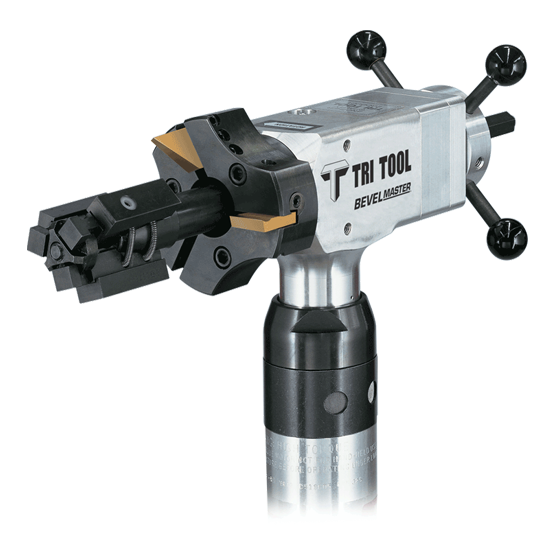

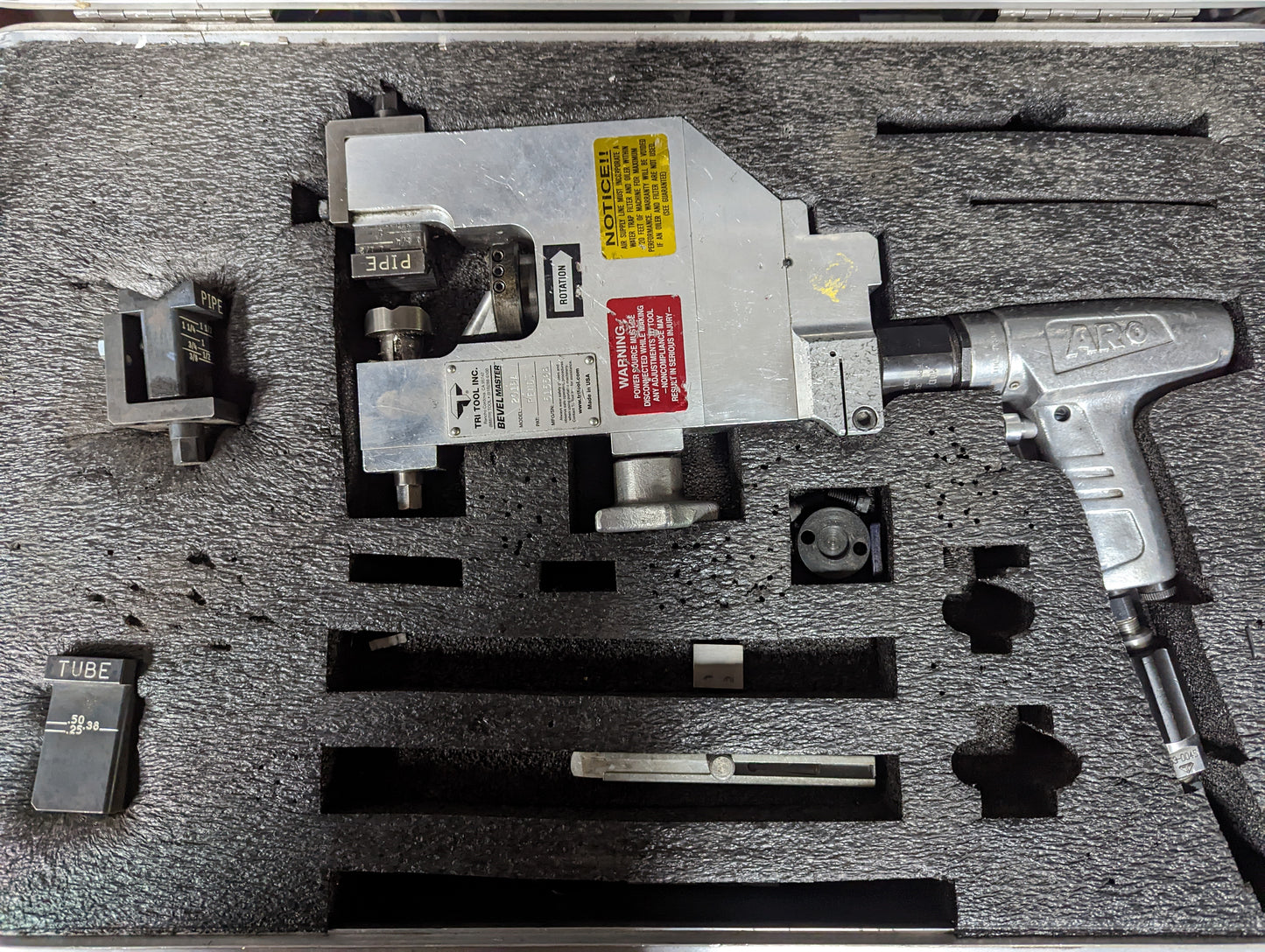

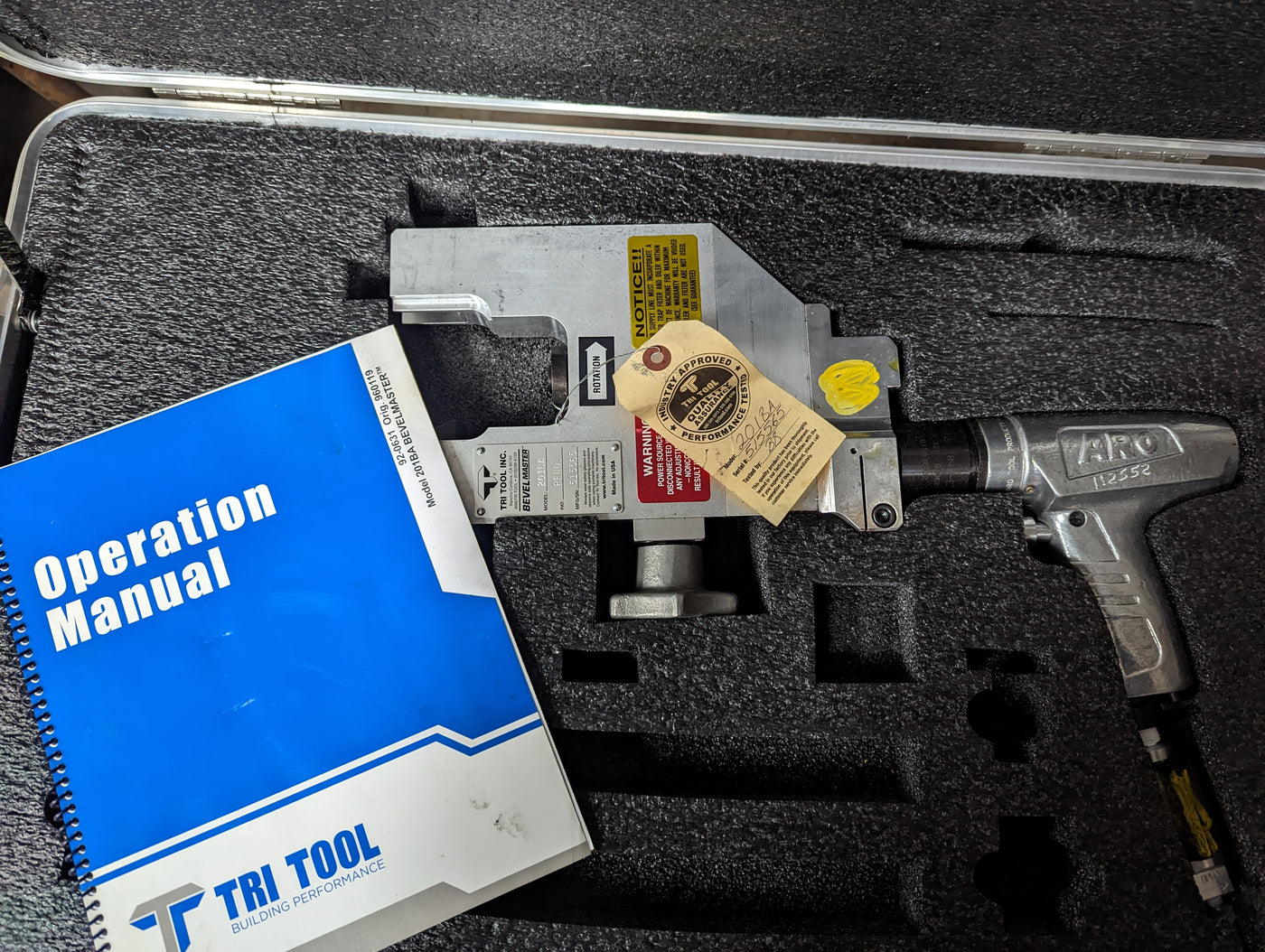

TRI-TOOL 204B BEVELMASTER PORTABLE PNEUMATIC LATHE SYSTEM USED
FUNCTION TESTED
SHIPS IN 3-5 BUSINESS DAYS
Pipe beveler features three (3) tool bit slot for facing, counterboring, and beveling, an inline feed, solid milled body with a heavy-duty gear set, and tapered roller bearings for reliability. A tool steel mandrel and durable hardened steel mounting blocks provide positive grip.
Technical Specifications | |||||||||||||||||||
Property | Inches | Metric | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ID Mounting: Mandrel, Reduced Diameter (option) Mandrel, Reduced Diameter (option) Standard Mandrel |
*.610" - 1.000" *1.000" - 1.250" 1.250" - 4.330" |
*(15.5 mm - 25.4 mm) *(25.4 mm - 31.8 mm) (31.8 mm - 110.0 mm) |
|||||||||||||||||
OD Machining (max): 2.625" Head (option) 4.000" Head |
*2.625" 4.500" |
*(66.8 mm) (114.3 mm) |
|||||||||||||||||
Counterboring: | 1.500" - 4.330" | (38.1 mm - 110.2 mm) | |||||||||||||||||
ID Chamfering: | 1.600" - 4.190" | (40.6 mm - 106.4 mm) | |||||||||||||||||
Wall Thickness: Air Electric |
**.531" **.250" |
**(13.5 mm) **(6.4 mm) |
|||||||||||||||||
Axial Feed Travel: | 1.500" | (38.1 mm) | |||||||||||||||||
Feed Rate: (Per Revolution) | .100" | (2.5 mm) | |||||||||||||||||
Weight: | 18 lbs | (8.2 kg) | |||||||||||||||||
Cutting Head Toolbit slots: | 3 | ||||||||||||||||||
Rotating head diameter: 2.625" head 4.000" head |
*2.625" 4.000" |
*(66.8 mm) (101.6 mm) |
|||||||||||||||||
Height over motor: | 19.880" | (505.0 mm) | |||||||||||||||||
Machine Width: | 4.000" | (101.6 mm) | |||||||||||||||||
Length over machine: | 16.420" | (417.1 mm) | |||||||||||||||||
Minimum Air Power requirement: | 55 cfm 90 psi |
(30.0 L/s) (621 kPa) |
|||||||||||||||||
Minimum Electric Power: | 5.25A@115V @220V |
DISCLAIMER
Buyer understands that the Goods described herein have been used by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any repair work or modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
