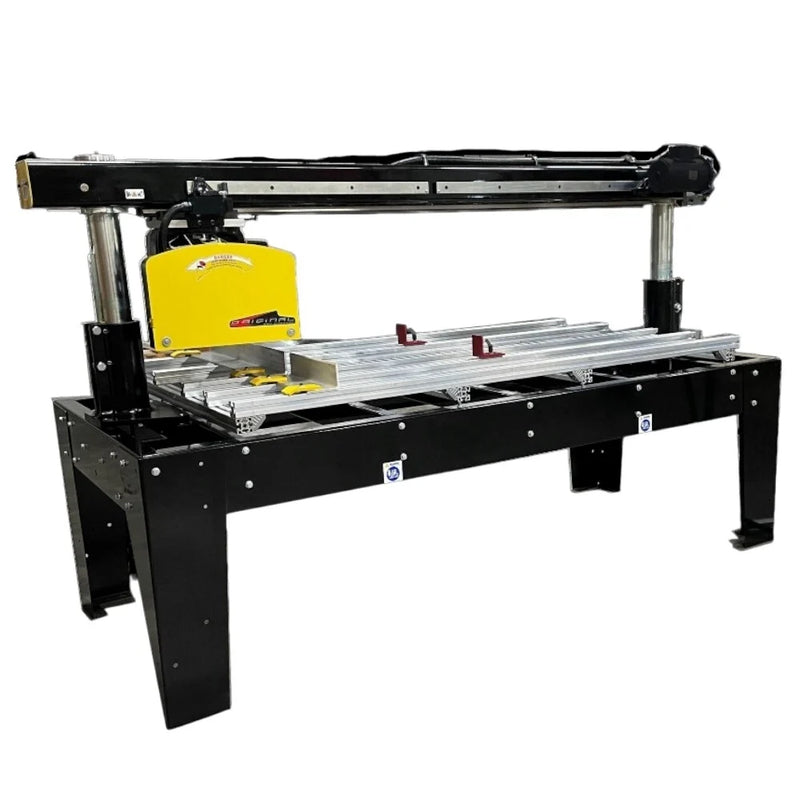

Original Saw Company 3691-01-05-VFD 20" Beam Saw - Reconditioned
Industrial beam saw powered by a 7.5 HP TEFC motor with Variable Frequency Drive (VFD) technology. Designed for high-volume cutting in multi-shift manufacturing environments. Capable of crosscuts up to 58" wide and depths up to 7" in a single pass, with bevel cutting capability at 45 degrees.
Features
- 7.5 HP TEFC motor with VFD for controlled blade speed and approximately 25-second blade stop
- Cast iron and cast aluminum components with vibration-control platform for cutting precision
- Front Lower Elevation System for quick blade height adjustments
- Box tubing beam and powder-coated steel frame for structural stability
- Full upper and lower blade guarding with emergency stop and magnetic starter
- Cuttable Materials include: Aluminum, Brass, Bronze, Copper, Fiberglass, Lead Sheets, Plastic, Steel and Wood
Included
- 1x Original Saw Company 20" Beam Saw - Reconditioned
Specifications
| Motor | 7.5 HP, 3 Phase TEFC |
|---|---|
| Voltage | 460V, 3 Phase |
| Max Crosscut | 58" |
| Max Depth of Cut | 7" |
| Max Depth at 45° Bevel | 3 1/2" |
| Cut Types | Bevel, Crosscut |
| Recommended Usage | 2-3 shifts per day |
Dimensions
| Product Width | 45in |
|---|---|
| Product Depth | 111in |
| Product Height | 67in |
| Weight | 1,600 lbs |
This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
