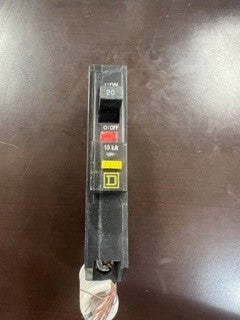

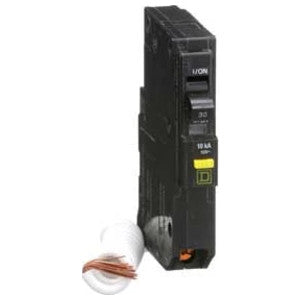

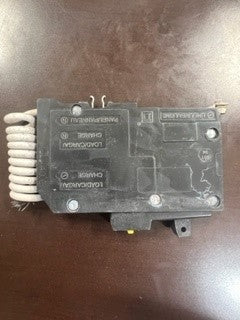

Schneider Electric QOB120GFI Square D Miniature Circuit Breaker 120V 20A-New Surplus
Ready To Ship Next Business Day
QWIK-GARD circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 mA or more, for people protection. Do not connect to more than 250 ft. of load conductor for the total one-way run to prevent nuisance tripping.
Main Product Miniature circuit-breaker Range QO Current Rating 20 A Voltage Rating 120 V AC Mounting Type Bolt-on Number of Poles 1P Circuit Breaker Type Ground fault protecting class A 6 mA Ratings Not rated Electrical Connection Pressure plate.
Country of Origin
MX - Mexico
UNSPSC
39121603
Series
QO
Additional Features
GFI Protection
Mounting Type
Plug-In
Type
Ground-Fault
AWG Range
AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminum
Current Rating
30A
Interrupt Rating
10 kA
Rated Voltage
120V AC
Torque
4.6-4.6 N.m 2.5-10 mm² (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm² (AWG 12...AWG 4)
Buyer understands that the Goods described herein are new surplus by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
