Schneider Electric EDB14045

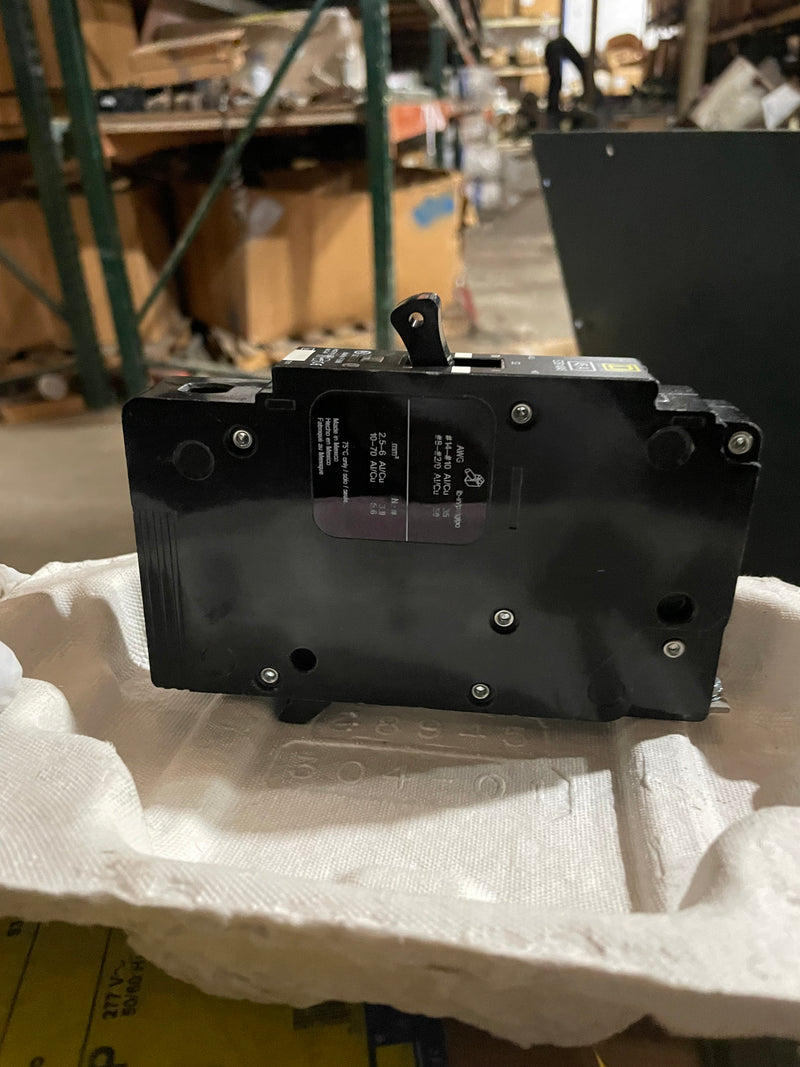

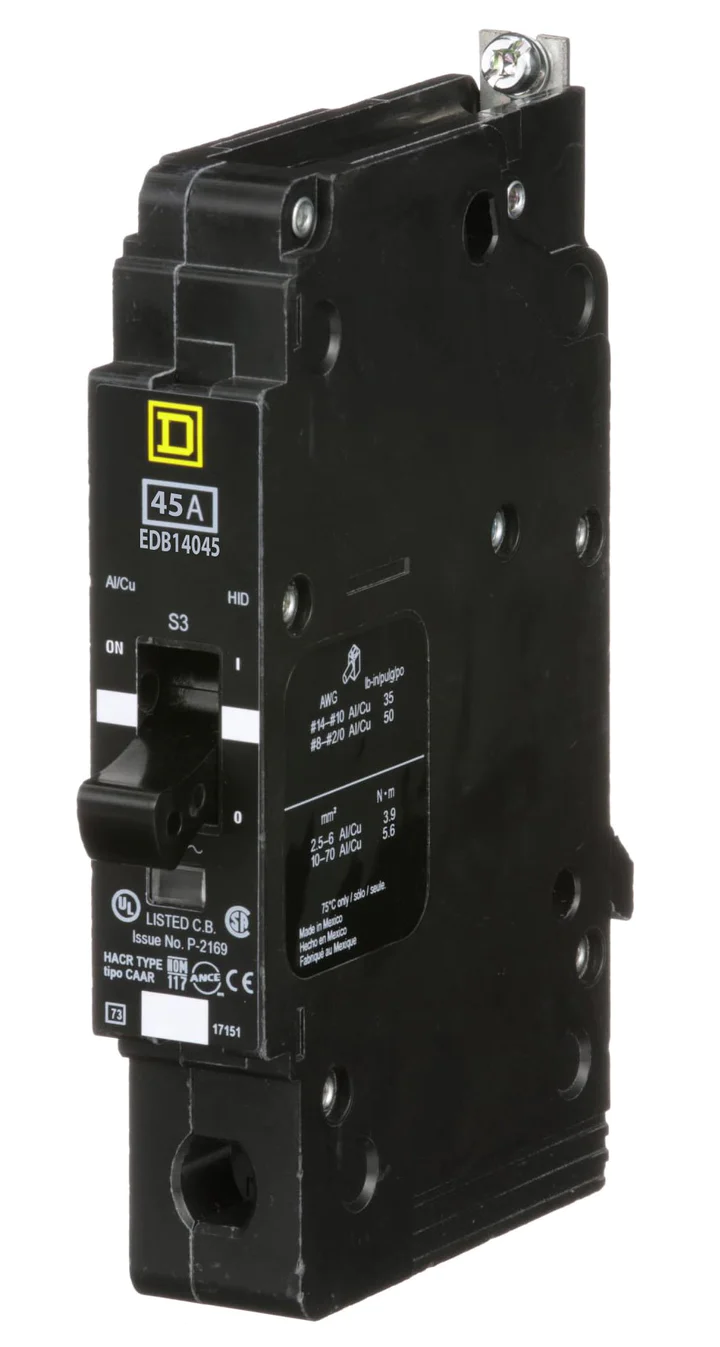

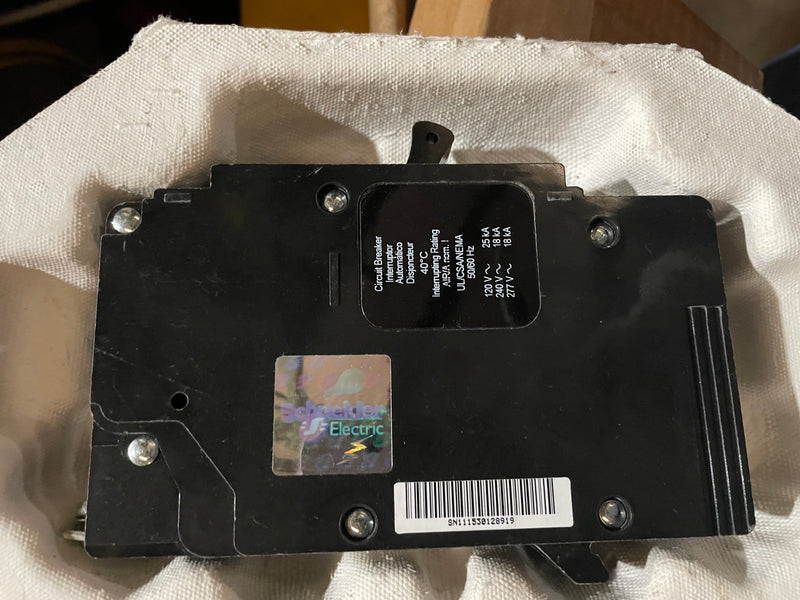

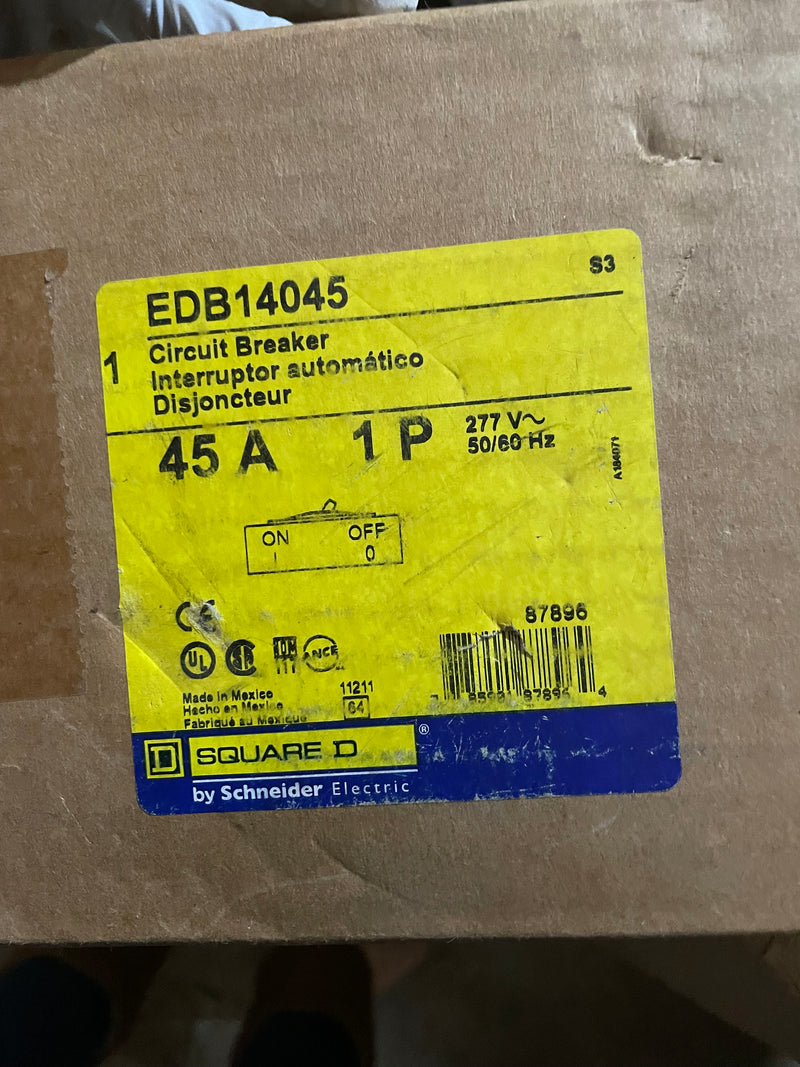

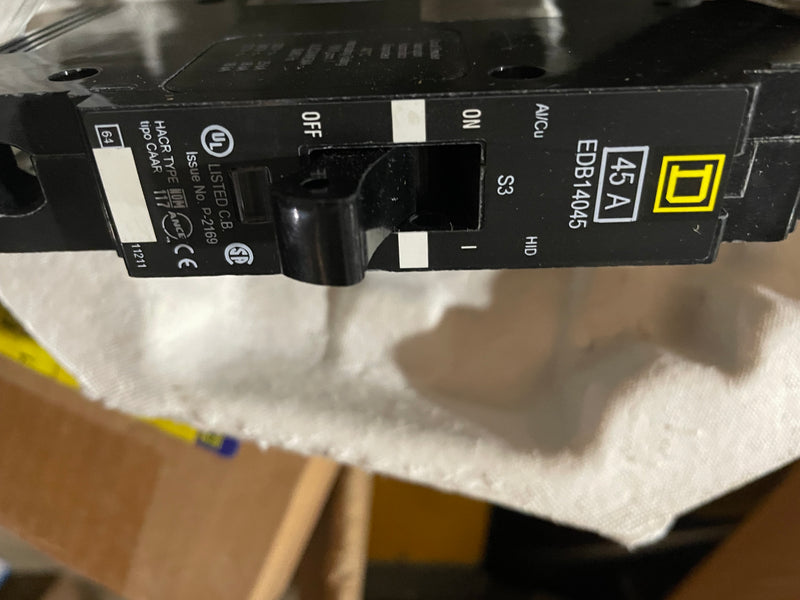

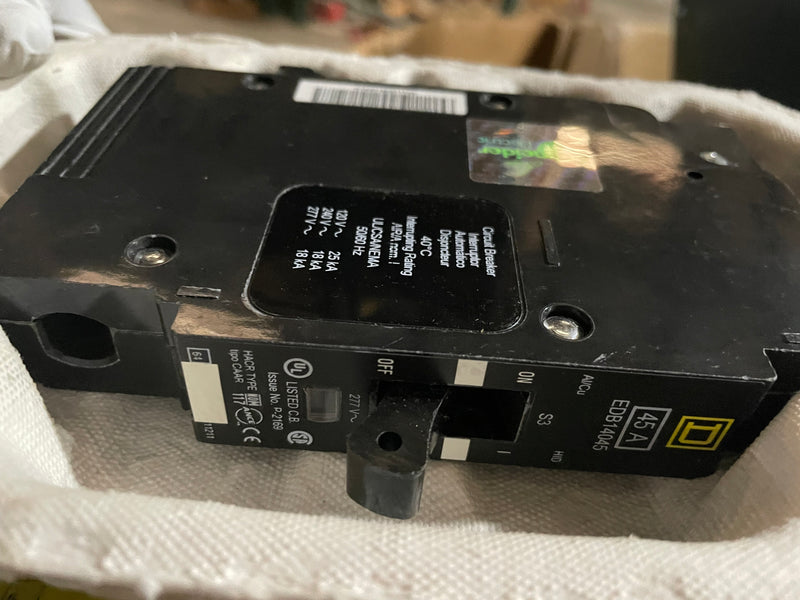

Schneider Electric EDB14045 Square D Circuit Breaker 45A 1P-New Surplus

Ready to Ship Next Business Day

Schneider Electric / Square D's EDB14045 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.

The EDB14045 is a 1-pole bolt-on circuit breaker, rated at 45A at a system voltage of 277V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

Square D's EDB14045 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12...AWG 6 (aluminum) and AWG 14...AWG 6 (copper).

Product Specifications

• Manufacturer: Schneider Electric / Square D
• Family: EDB Series
• Pole: 1
• Amp: 45
• Volt: 277
• Phase: 1
• Category: Molded Case / 1-Pole
• Connection: Bolt-On
• Type: EDB
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 18kA@277V | 25kA@240V | 25kA@120V
