PANDUIT Pan-Lug LCA1/0-12-X Comp. Lug
PANDUIT Pan-Lug LCA1/0-12-X Comp. Lug
Regular price
$90.00 CAD
Regular price
$105.00 CAD
Sale price
$90.00 CAD
Unit price
/
per

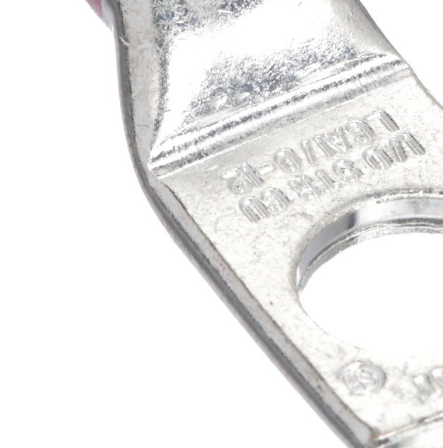

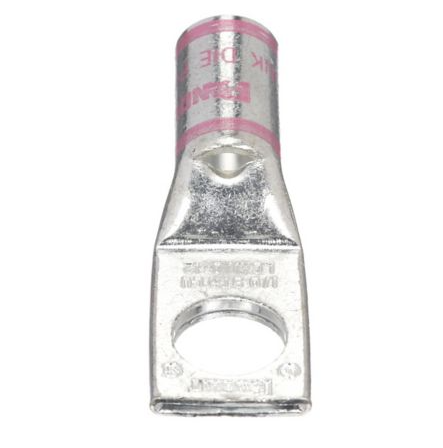

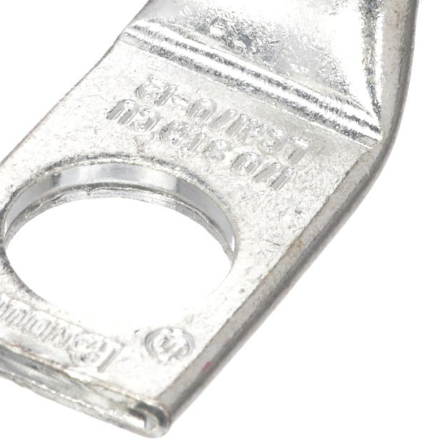

PANDUIT Pan-Lug™ LCA1/0-12-X Comp. Lug, 1/0, Tin Plt Copper, Strt, One 0.5" Stud, 10 PER BOX, NEW SURPLUS
Specifications
Product Type | Copper Compression Connectors - Lugs |
Base Material | Copper |
Copper Code Conductor Size (AWG) | 1/0 |
Sub Brand | Pan-Lug™ |
Stud Hole Size (In.) | 1/2 |
Stud Hole Size (mm) | 12.7 |
Barrel Type | Standard Barrel Length with Inspection Window |
Barrel Length (In.) | 0.94 |
Barrel Length (mm) | 23.9 |
Tongue Type | Standard |
Tongue Width (In.) | 0.8 |
Tongue Width (mm) | 20.3 |
Tongue Angle | Straight |
Tongue Thickness (In.) | 0.12 |
Tongue Thickness (mm) | 3 |
Overall Length (In.) | 2.31 |
Overall Length (mm) | 58.7 |
Finish/Coating | tin-plated |
Standards Met | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
UL Temperature Rating (°C) | 90 |
Maximum Voltage (kV) | 35 |
Color Code | Pink |
Panduit Die Index Number | P42 |
Burndy Die Index Number | 12 |
T & B Die Index Number | 42 |
Wire Strip Length (In.) | 1 |
Wire Strip Length (mm) | 25.4 |
Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
Disclaimer
This is a reconditioned product and is in full operational condition.
Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality.
These units have been repainted and the manufacturer's logo may or may not be visible.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date.
The buyer shall have fifteen (15) days from the date of delivery to accept product.
We offer a 1-year operational warranty on all reconditioned equipment.
