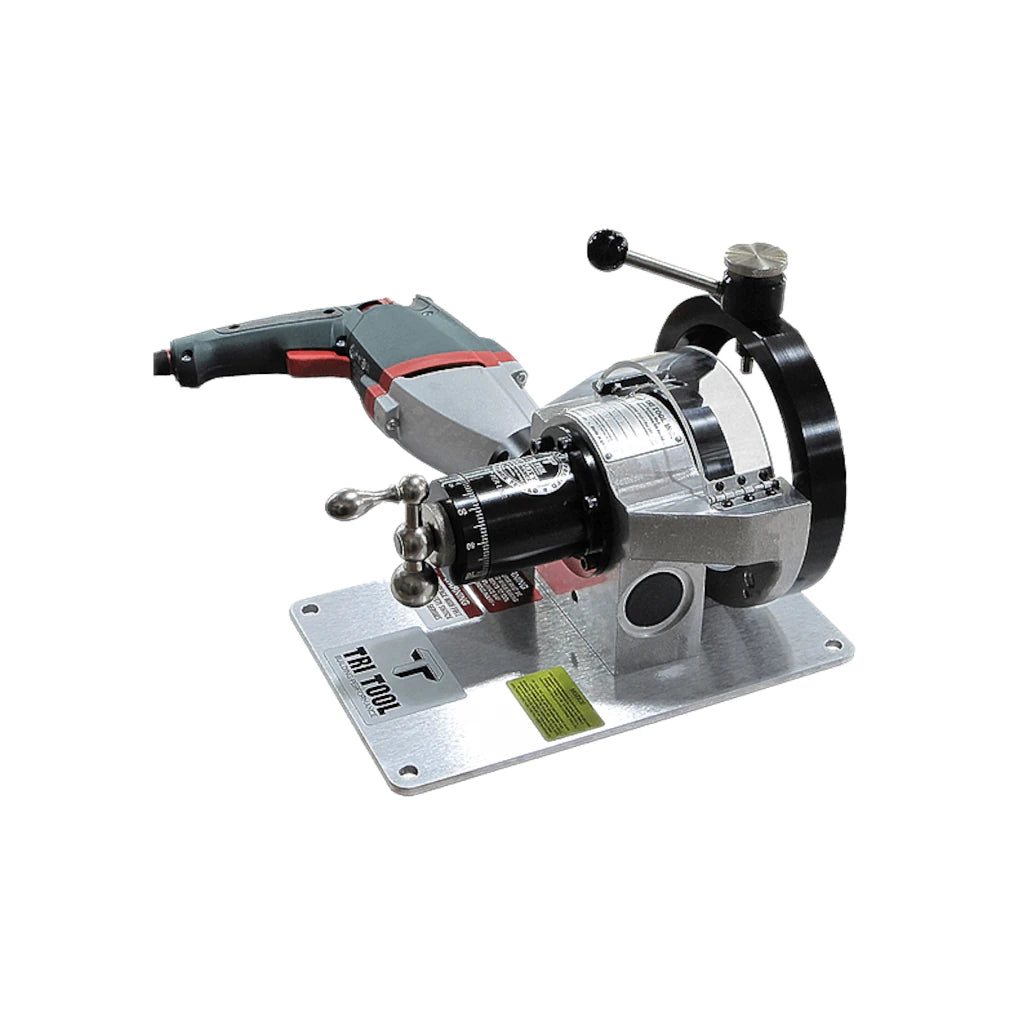

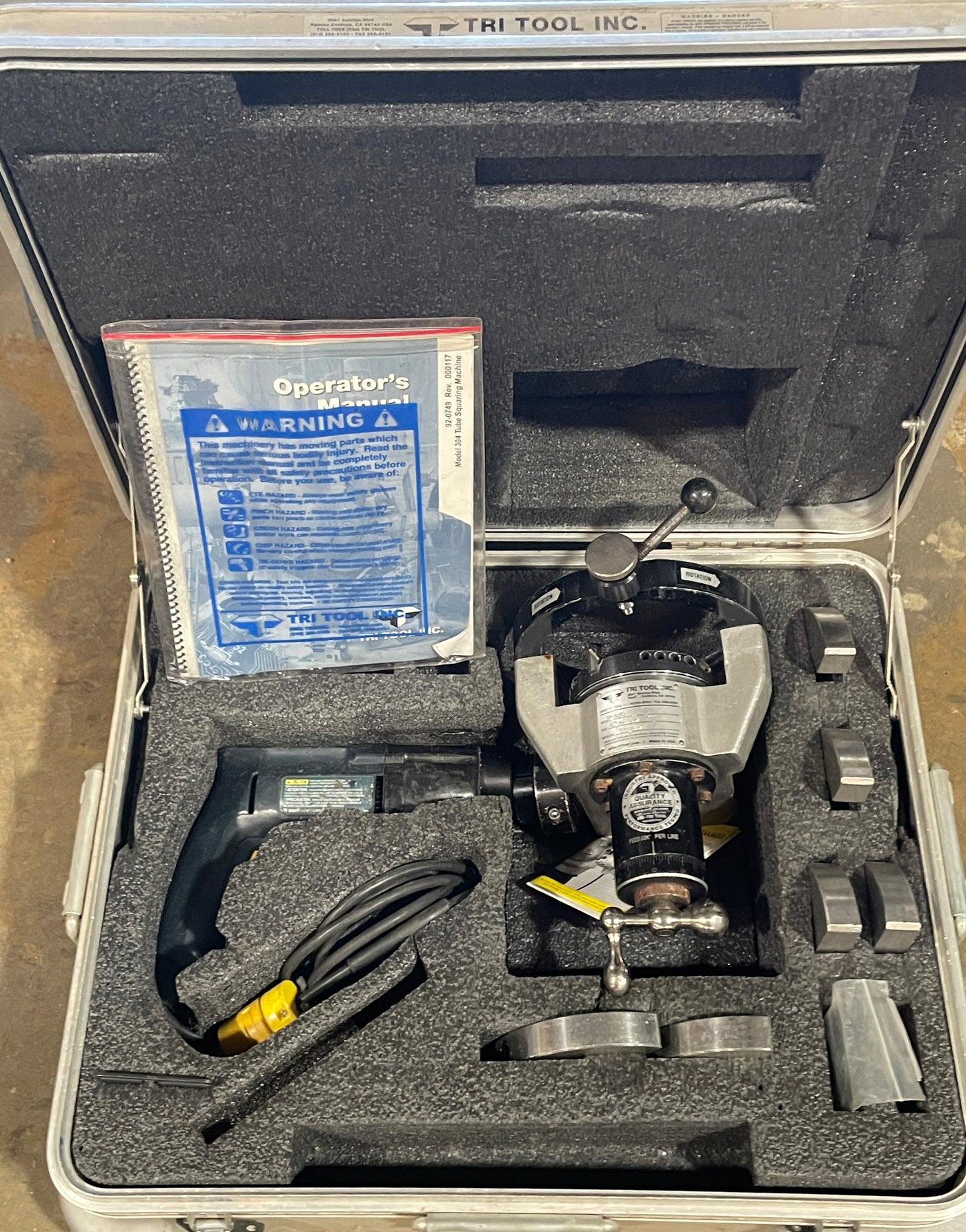

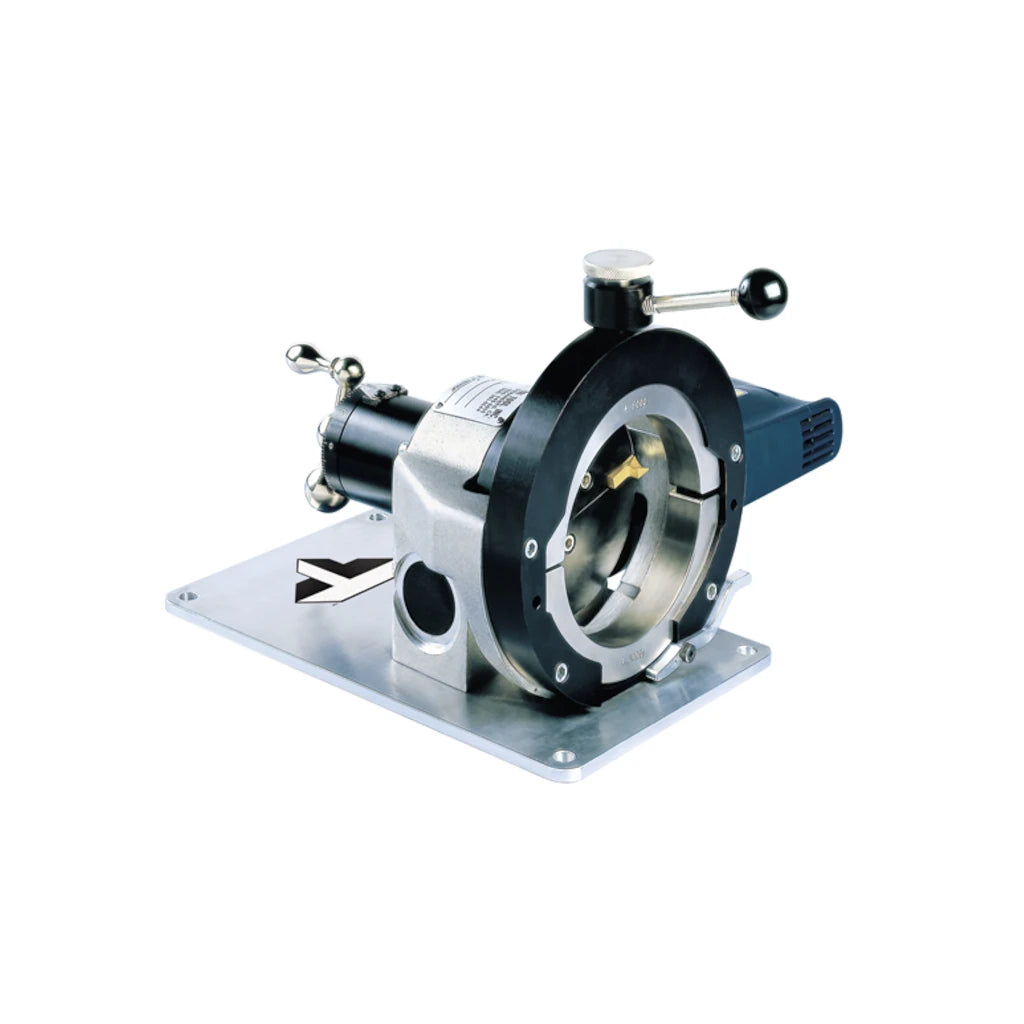

The 304 tube squaring machine is designed for precision stainless steel tube cutting. It supports tubing sizes from 0.250″ (6.35 mm) to 4.5″ (114.3 mm) OD with a maximum wall thickness of 0.250″ (6.4 mm). Featuring quick-change saddles, a graduated feed, and high visibility design, it enhances productivity and operator safety. Power options include pneumatic or electric drives. The integral clear chip guard ensures safer operation, while full support OD clamping minimizes tube distortion. The cutting head accommodates squaring bits, beveling bits, and ID deburring bits for versatile cutting applications.
| Pipe/Tube Size | 0.250″ - 4.500″ (6.35 mm - 114.3 mm) |
|---|---|
| Wall Thickness (Max) | 0.250″ (6.4 mm) |
| Drive Options | Air, 100V Electric, 110V Electric, 220V Electric |
| Axial Clamping Length (Min) | 0.875″ (22.2 mm) |
| Feed Rate (Per Revolution) | 0.100″ (2.5 mm) |
| Axial Feed Travel | 0.560″ (14.2 mm) |
| Cutting Head Toolbit Slots | 3 |
| Minimum Air Power Requirement | 55 cfm @ 90 psi (26.0 L/s @ 621 kPa) |
| Minimum Electric Power | 9.6A @ 110V 50/60Hz, 2.5A @ 220V 50/60Hz |
| Weight | 18.3 lbs (8.3 kg) |
|---|---|
| Height Over Motor | 9.000″ (228.6 mm) |
| Machine Width | 19.000″ (482.6 mm) |
| Length Over Motor | 12.000″ (304.8 mm) |
Buyer understands that the Goods described herein have been used by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any repair work or modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
