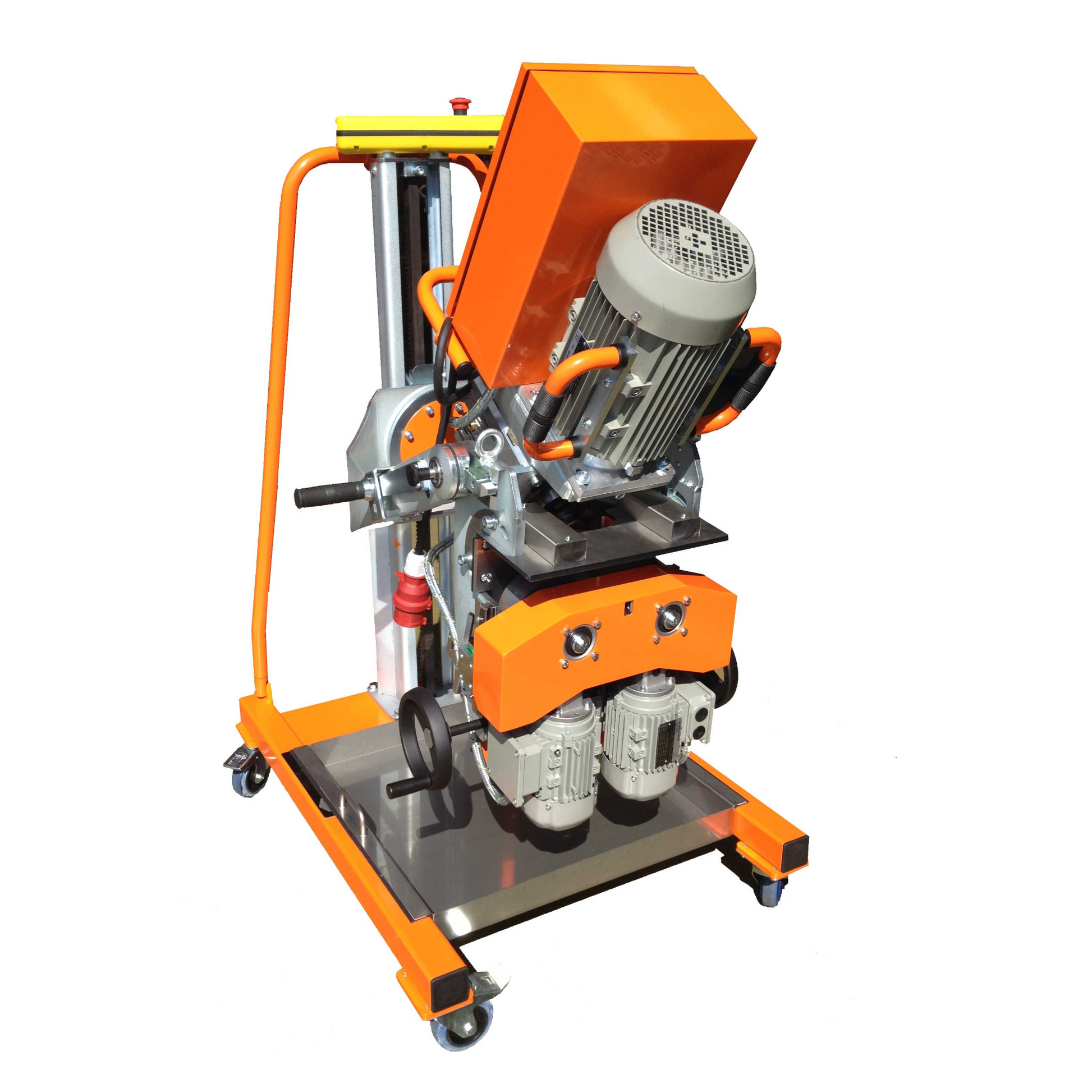

SteelMax SM-DBM50 Double-Sided Plate Beveling Machine
Heavy-duty beveling machine for metalworking applications. 4 kW motor, 685 RPM spindle speed, and adaptive 3D system for precise and consistent results. Bevels materials up to 70 mm thick and at angles from 15° to 60°. Ideal for fabricating and processing large metal parts.
Dimensions
| Width | 27 5/8 in |
| Height | 28 7/8 in |
| Length | 51 5/16 in |
| Tool Length | 51 5/16 in |
Details
| Item | Beveling Machine |
| Power Requirements | 480V 60Hz 3 Phase |
| Voltage | 480V AC |
| Speed Range | 685 RPM |
| Series | DBM50 |
| Phase | Three-Phase |
| Bevel Angle | 15 Degrees to 60 Degrees |
| Tool Weight | 385 lb / 175 kg |
| Standards | CE Certified |
| Product Type | Double-Sided Beveling Machine |
| Feed Type | Automatic Feed |
| Number of Cutting Sides | Double-Sided |
| Power Source | Corded |
| Minimum Feed Speed | 0 m/min |
| Maximum Feed Speed | 1.2 m/min |
| Kit Contents | Bare Tool |
| Compatible Workpiece Shape | Plate |
| Beveler Type | Portable |
| Maximum Speed | 1,435 RPM |
This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
