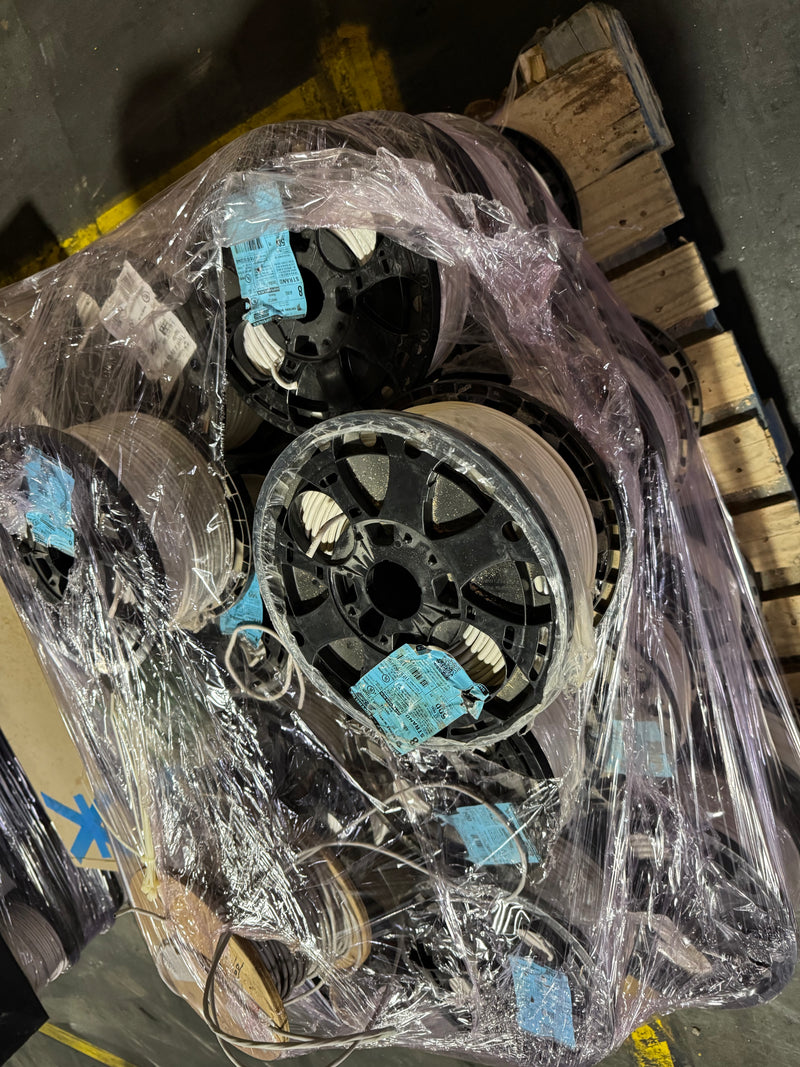

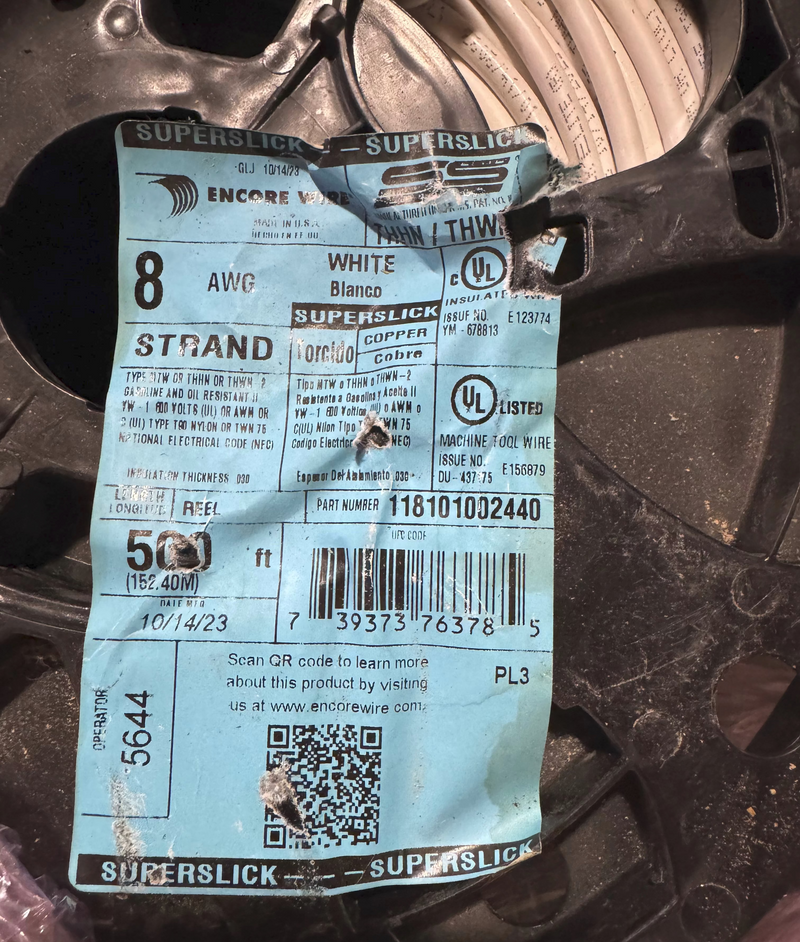

Encore Wire THHN Superslick Elite #8 AWG Stranded White Wire - 500ft Roll
Volume Pricing Available - Contact for Purchasing
- 1 roll: $225 per roll
- 5 rolls: $150 per roll (save $375 total)
- 20 rolls: $100 per roll (save $2,500 total)
Professional grade 8 AWG stranded THHN building wire featuring Encore's patented Superslick Elite technology for effortless pulling without additional lubricant. Suitable for general purpose applications in commercial, industrial, and residential installations.
Features
- Superslick Elite technology eliminates need for pulling lubricant
- 19-strand bare copper conductor for superior flexibility
- Heat, gasoline, oil, and moisture resistant PVC insulation
- Dual-rated THHN/THWN-2 for versatile installation options
- 90°C temperature rating in dry and wet locations
- 75°C rated in oil or coolant environments
- UL listed and NEC compliant
- 600V rated for service, feeder, and branch circuit applications
Included
- 500 ft reel of 8 AWG white THHN wire
Specifications
| Wire Size | 8 awg |
|---|---|
| Conductor Type | Stranded bare copper (19 strands) |
| Wire Type | THHN/MTW/THWN-2 |
| Insulation Material | PVC with nylon jacket |
| Color | White |
| Length | 500 ft |
| Voltage Rating | 600v |
| Current Rating | 50a at 75°C, 55a at 90°C |
| Temperature Rating | 90°C dry/wet, 75°C oil/coolant |
| Outside Diameter | 0.213 in |
| Resistance Properties | Heat, gasoline, oil, moisture resistant |
| Standards | UL listed, NEC compliant |
| Application | Service, feeder, and branch circuits in conduit and cable trays |
Dimensions
| Reel Length | 500 ft |
|---|---|
| Wire Diameter | 0.213 in |
Buyer understands that the Goods described herein are new surplus by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
