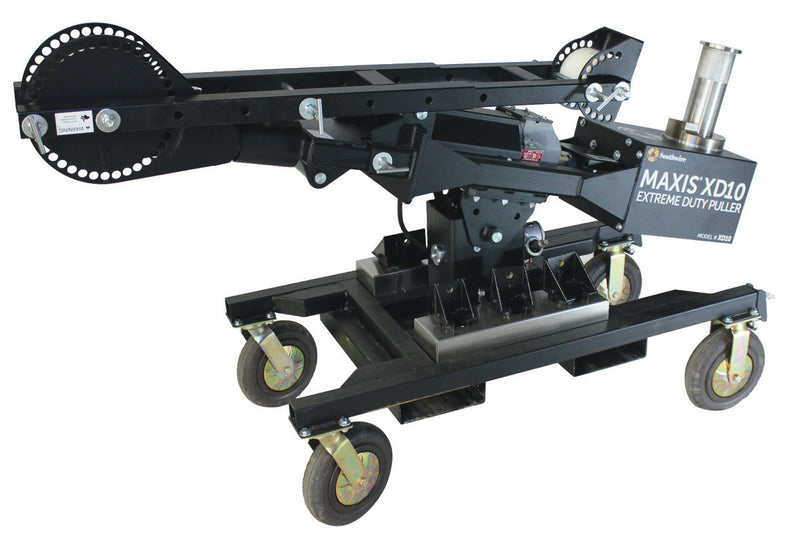

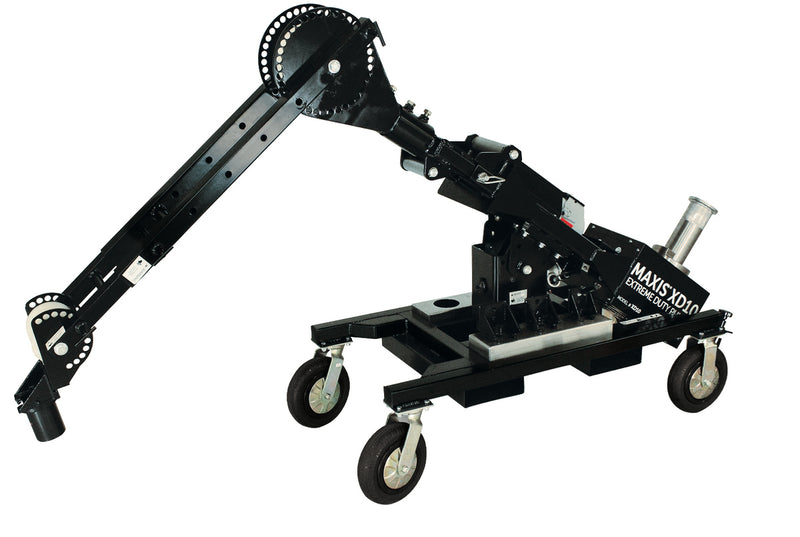

Southwire 59190402 Maxis XD10 Extreme Duty Cable Puller - Reconditioned
The Southwire XD10 Maxis Extreme Duty Cable Puller is engineered for high-output industrial applications. With a peak pulling force of 10,000 lbs and a continuous rating of 7,000 lbs, it delivers smooth, efficient performance in both overhead and underground setups. Designed with rugged construction and powered by an electric motor, it supports single-person setup and rapid deployment.
Features
- 10,000 lbs. peak pulling force; 7,000 lbs. continuous
- Fork tubes allow mid-frame positioning through 90° bends
- High-capacity gear box built for heavy loads
- Vertical capstan design with improved rope guide
- 5:1 geared elevation control – use by handle or 18V drill
- Self-contained; no additional setup parts required
- Collapses to fit through standard doorways
- Single foot control operation
Included
- Southwire XD10 Cable Puller
- Single Foot Control
Specifications
| Model | XD10 |
|---|---|
| MPN | 59190402 |
| Peak Pulling Force | 10,000 lbs |
| Continuous Pull Rating | 7,000 lbs |
| Power Type | Corded Electric |
| Control | Foot Control, Drill Assist |
Dimensions
| Length | 70 in |
|---|---|
| Width | 26 in |
| Height | 40 in |
| Weight | 600 lbs |
This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
