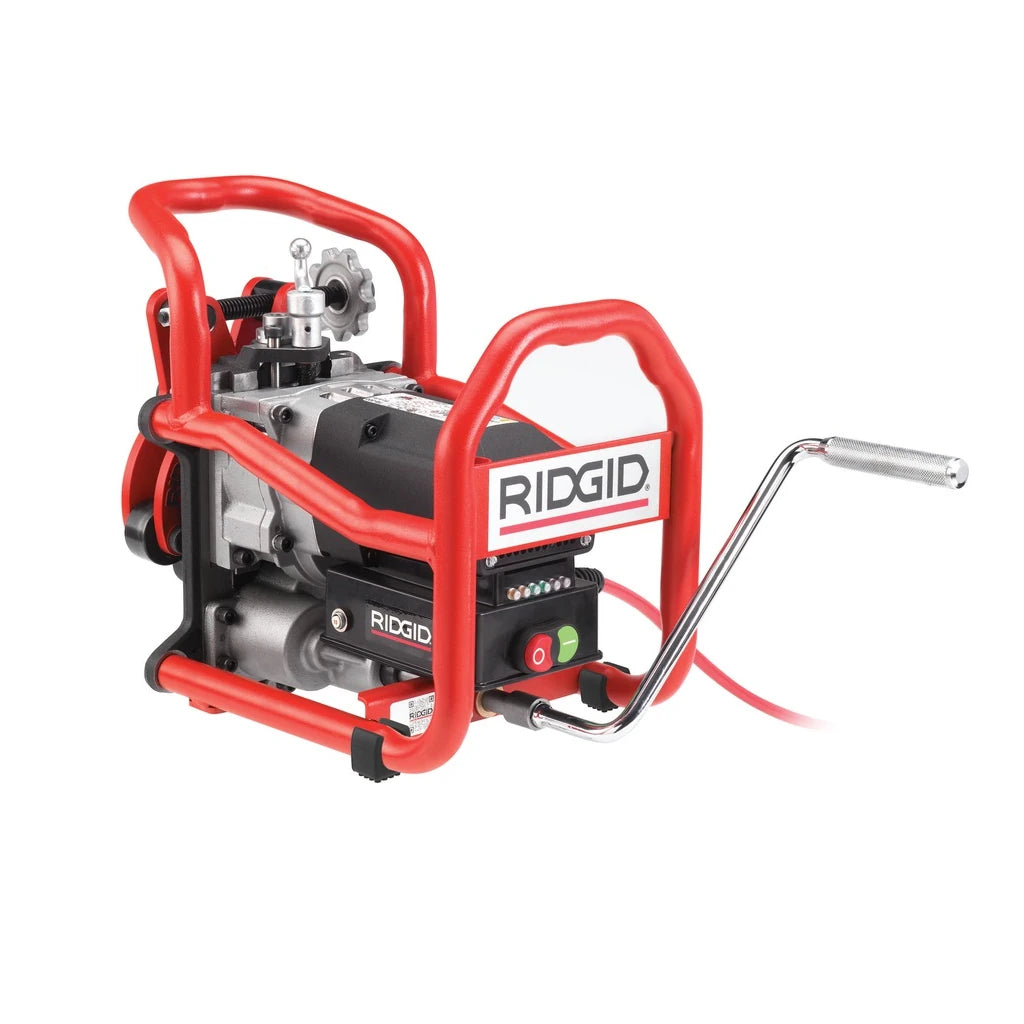

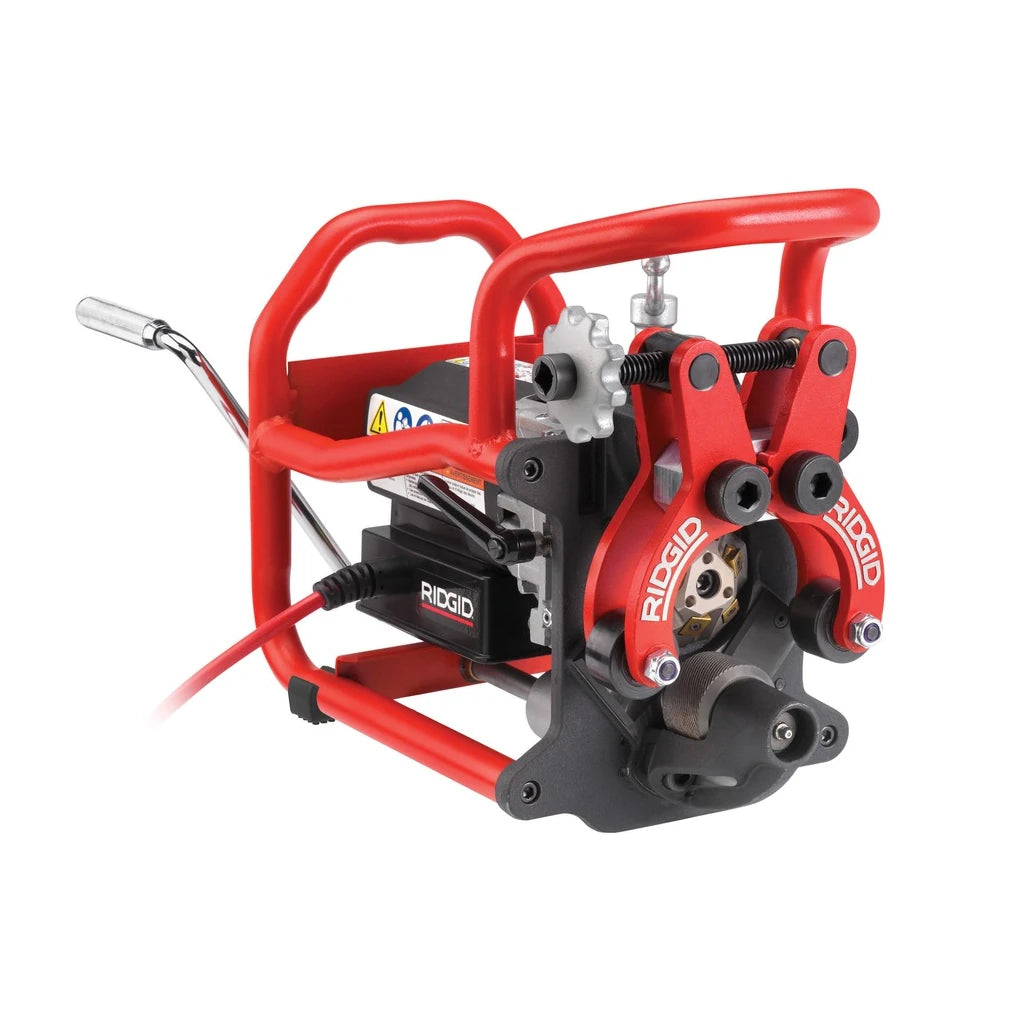

Ridgid B-500 Transportable Pipe Beveller
The Ridgid B-500 Transportable Pipe Beveller produces high-quality bevels in just 45 seconds without flames or sparks. Designed for pipes 4” and larger with a maximum wall thickness of 1/2”, this compact unit provides consistent bevels in a single pass. Featuring six replaceable cutter inserts, it delivers a machined finish while maintaining safety and efficiency.
Features
- Fast setup and beveling—10" diameter schedule 40 pipe in 45 seconds
- Cool-to-touch pipe immediately after beveling
- Consistent bevel angle ensures optimal weld cover passes
- Adjustable land width from 0" to 3/16" in 1/32" increments
- Machined finish produced by six replaceable cutter inserts
- Quick and easy setup with patent-pending clamp system
- LED speed monitoring for optimal cutter performance
- Spark-free grinding operation for enhanced safety
Specifications
Capacity | 4” pipe and larger, flat plate |
---|---|
Pipe Wall/Plate Thickness | Min 0.188" (4.8 mm) / Max 0.50" (12.7 mm) |
Bevel Angles | 37.5° (standard), 30° or 45° (with optional cutter heads) |
Cutter Head | Rated for most steel & stainless steel* |
Land Width | 0" - 3/16" (4.8 mm) in 1/32" (0.8 mm) increments |
Motor Type | Universal single-phase |
Motor RPM | 950 (no load) |
Body | Steel frame |
Dimensions
Length | 15.8 in. (401 mm) |
---|---|
Width | 11.5 in. (292 mm) |
Height | 13.3 in. (338 mm) |
This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
