Mathey Dearman D2249 4in. - 16in. Universal Chain Clamp Reconditioned

Ready to Ship in 5 to 7 Business Days or Less of Order

Mathey Dearman D2249 4" - 16" Universal Chain Clamp Reconditioned w/1 Year Operational Warranty

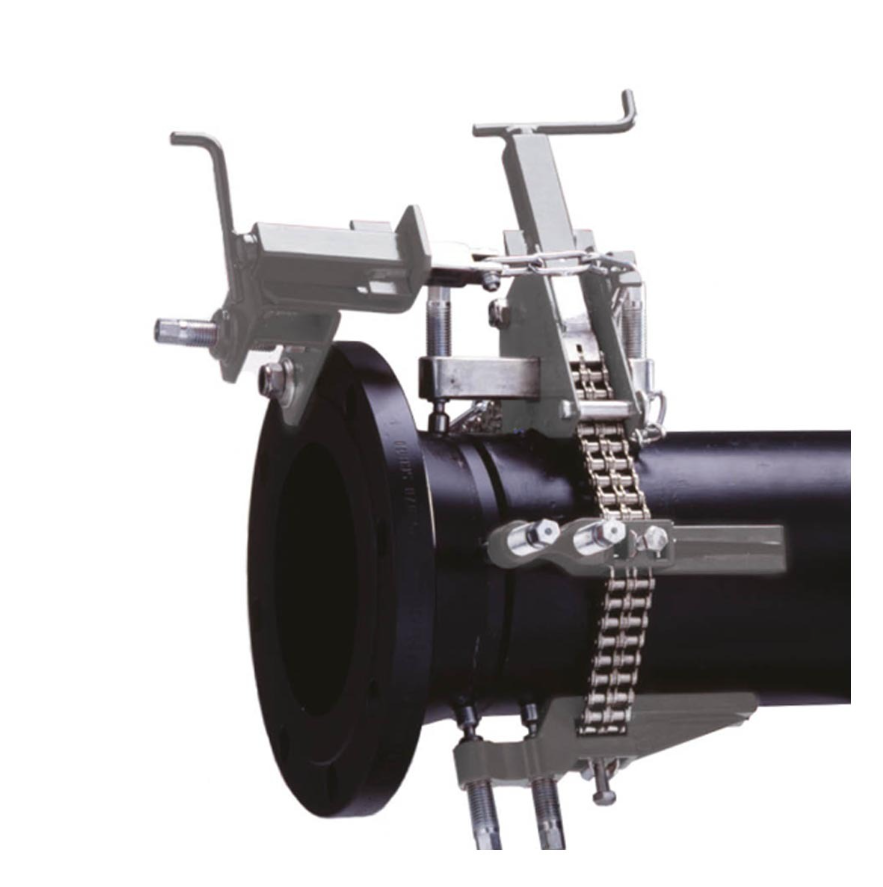

The Mathey Dearman Universal Chain Clamp's design gives the welder the ability to accurately fit-up, weld and grind the pipe without removal of the clamp. The level and support device of the chain clamp allows the pipe, elbow, tee, flange and other fittings to be held safely and securely in place during the alignment and welding process.

Replace the chain of the Universal Chain Clamp with stainless steel chain for stainless steel or specialty alloy applications. Available in carbon steel and stainless steel models to fit pipe from 1" to 36" (25mm to 914mm).

Number Of Jackbars:7
Pipe Range:4" - 16"
Material Type:Carbon Steel
Reforms Pipe To Schedule:20
Aligns Pipe To Schedule:40

* Calculations are based on pipe with a tensile strength of 45,000 lbs per square inch (3168 kg per square centimeter).*

Universal Chain Clamp Includes:

Length of chain required for the pipe diameter specified

Universal jackbars listed for the pipe range

Main block

Fine adjustment

Level and support device

Jackscrew wrench

Storage box
