Lincoln Vantage 300 K2409-1 Diesel Multiprocess Welder - Reconditioned

Name: General Equipment and Supply
Address: 3423 Fork Shoals Rd, Simpsonville, SC, 29680, US
Telephone: +1-800-800-6011

Reconditioned

$15,249.00

~~$22,781.00~~ Save $7,532

Not Available

Lead time:8 - 10 business days

Quantity

Ships in 8 - 10 business days

Description

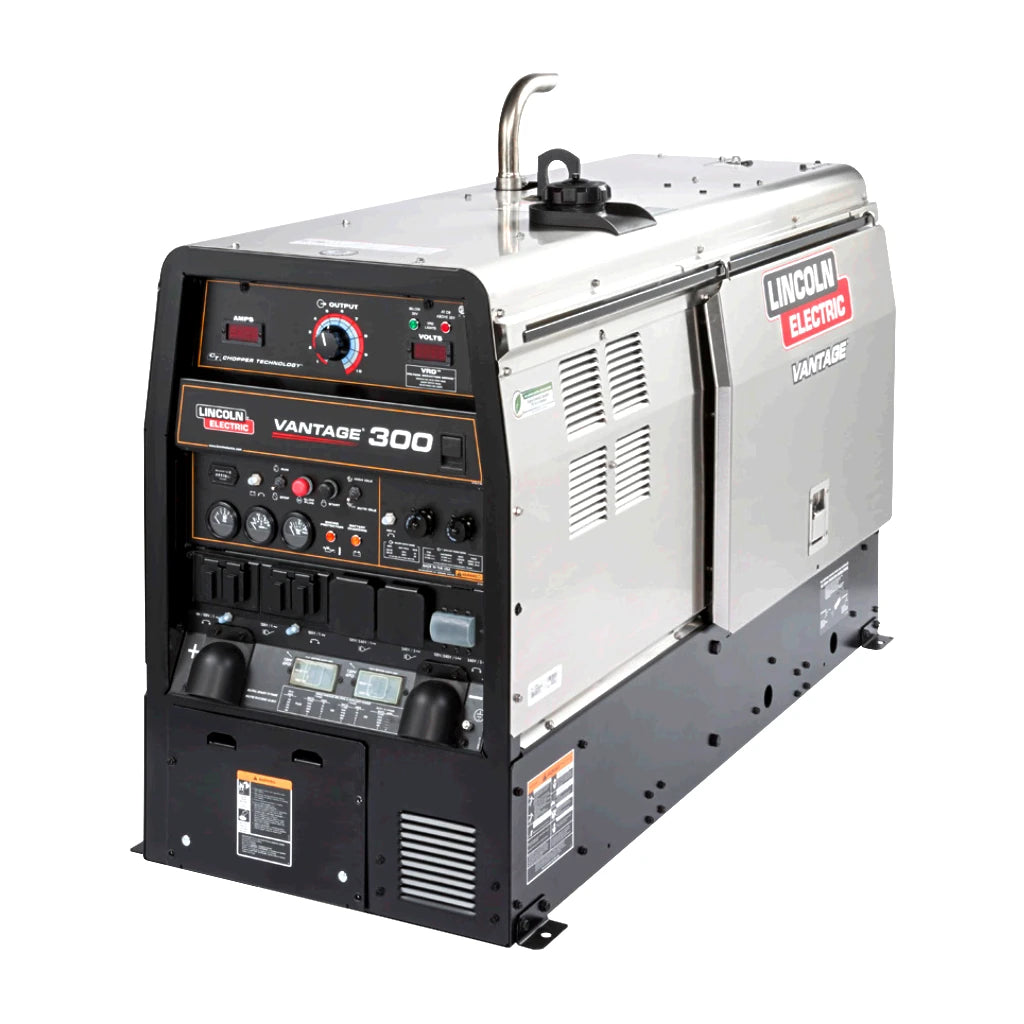

Lincoln Vantage 300 K2409-1

The Lincoln Vantage 300 is a compact, durable welding machine perfect for construction teams, pipe rig owners, and rental fleet managers. It features a Tier 4 Final Kubota diesel engine, 12.5 kW peak AC generator power, and multiple welding process modes, making it an ideal solution for a variety of welding and power needs.

Features

Compact and lightweight design suitable for pickup trucks
Stainless steel panels for added durability and protection
Five selectable welding process modes
12.5 kW peak (11 kW continuous) AC generator power
Tier 4 Final Kubota diesel engine for smooth and quiet operation
Hinged head for easy loading and unloading
180° rotating head for versatile operation

Machine Specifications

Model	Vantage 300
Rated DC Output	300A/32V/100% Duty Cycle
AC Power (1-Phase)	11,500W Peak / 10,000W Continuous
AC Power (3-Phase)	12,500W Peak / 11,000W Continuous
Processes	Stick, TIG, MIG, Flux-Cored, Gouging
Dimensions	35.9 x 25.3 x 60.0 inches (913 x 642 x 1524 mm)
Weight	1035 lbs (469 kg)

Engine Specifications

Engine Model	Kubota V1505, EPA Tier 4
Horsepower	22 HP @ 1800 RPM
Fuel Tank Capacity	20 gallons (76 liters)
Fuel Consumption	1.2 Gal/Hr (4.4 Ltr/Hr) under full load

Simultaneous Welding and AC Generator Power

Weld Amps	1 Phase		3 Phase		Simultaneous 1 and 3 Phase
	Watts	Amps	Watts	Amps	Watts	Amps
0	10,000	42	11,000	27	10,000	-
100	8,300	35	8,500	20	8,300	-
200	5,300	22	5,700	14	5,300	-
250	3,500	15	3,500	8	3,500	-
300	400	2	800	2	400	-
400	0	0	0	0	0	-

Disclaimer

This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
