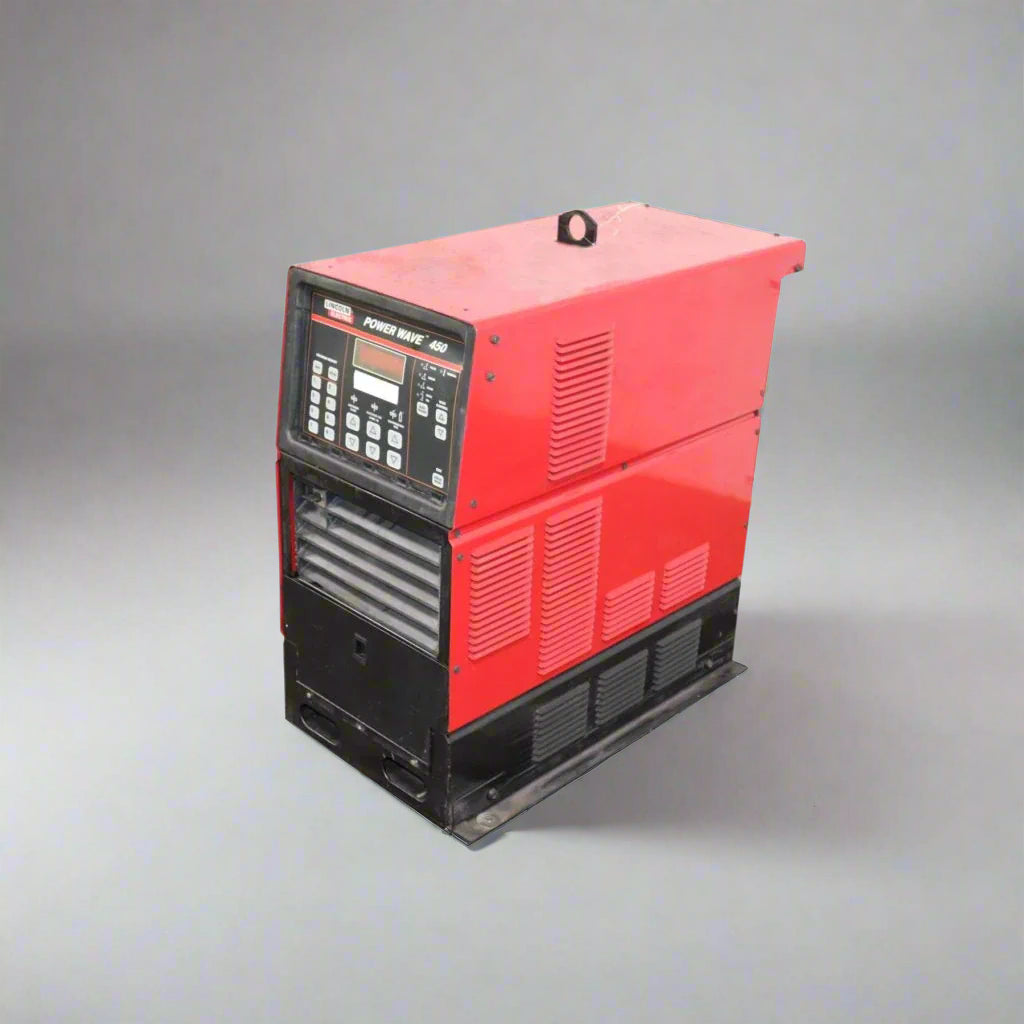

Lincoln Power Wave 450 Multiprocess Power Source - Reconditioned

Name: General Equipment and Supply
Address: 3423 Fork Shoals Rd, Simpsonville, SC, 29680, US
Telephone: +1-800-800-6011

Reconditioned

$2,449.00

~~$3,500.00~~ Save $1,051

Low

Lead time:8 - 10 business days

Quantity

Ships in 8 - 10 business days

Description

Lincoln Power Wave 450 Multiprocess Power Source - Reconditioned

The Lincoln Power Wave 450 is a multiprocess welding power source designed for high-performance industrial applications. Featuring a synergic control system, it automatically adjusts voltage and current based on wire feed speed, ensuring optimal weld quality. This system is preprogrammed with welding parameters for various wire types, diameters, and gas combinations. Designed for heavy-duty environments, it supports GMAW, FCAW, and STICK welding processes, making it suitable for automated and manual operations.

Features

Multiprocess welding for GMAW, FCAW, and STICK applications
Synergic control system for automatic parameter adjustments
Supports wire diameters and various shielding gases
Preprogrammed settings for optimized welding performance
Variable heat input for different welding requirements
Durable construction for industrial use
Interchangeable functional overlays for easy control

Specifications

Input Voltage	200V / 230V / 400V / 460V / 575V (Three Phase)
Input Current @ 500A/40VDC	87A / 76A / 44A / 38A / 32A
Input Current @ 450A/38VDC	75A / 65A / 38A / 32A / 28A
Rated Output	500A @ 40VDC (60% Duty Cycle), 450A @ 38VDC (100% Duty Cycle)
Open Circuit Voltage	75V
Continuous Current Range	5 - 540A
Process Current Ranges	GMAW: 50 - 540A FCAW: 40 - 540A STICK: 30 - 540A
Pulse Current Range	5 - 750A
Pulse Voltage Range	5 - 55V
Pulse Frequency	0.15 - 1000 Hz

Recommended Input Wire and Fuse Sizes

Input Voltage	Duty Cycle	Input Amp Rating	Copper Wire (75°C)	Ground Wire (75°C)	Fuse/Breaker Size
200V / 50-60Hz	60%	87A	4 AWG (25 mm²)	8 AWG (10 mm²)	120A
460V / 50-60Hz	100%	32A	8 AWG (10 mm²)	10 AWG (6 mm²)	50A

Dimensions

Height	35.6 in. (905 mm)
Width	20.3 in. (515 mm)
Depth	39.8 in. (1010 mm)
Weight	303.5 lbs (137.9 kg)

Operating & Storage Temperature

Operating: 0°C to 40°C
Storage: -50°C to 85°C

Disclaimer

This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
