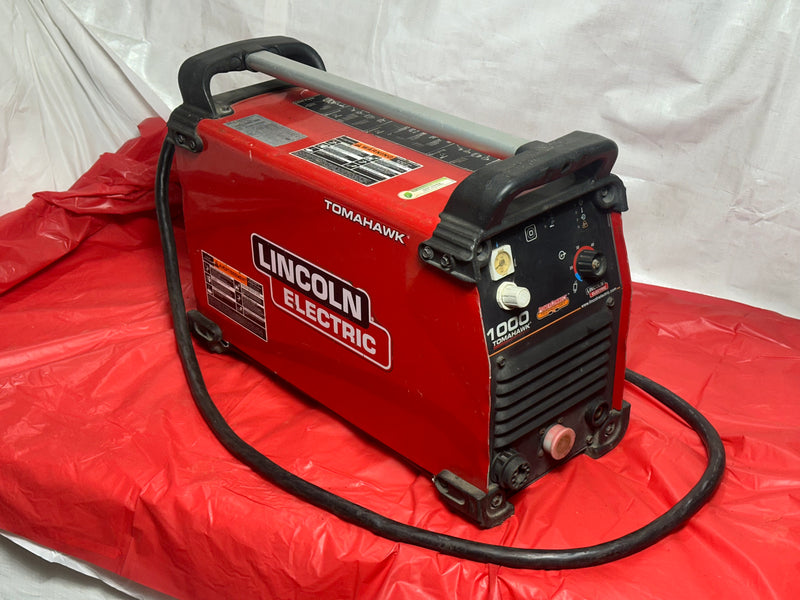

Lincoln Electric Tomahawk 1000 Plasma Cutter - 60 Amp - Machine Only
Industrial-grade plasma cutting system delivering 60 amps of cutting power for materials up to 1 inch thick. Features Lincoln's revolutionary PowerConnect technology that automatically senses and adjusts to input voltage from 200-600 volts, single or three phase, 50 or 60 hertz. Portable at only 45 pounds yet rugged enough for production environments. Reconditioned unit manufactured November 2011, serial number P1131103407.
Features
- PowerConnect technology automatically adjusts to 200-600v input range
- 60 amp output cuts mild steel up to 1 in thick
- Touch start system for reliable arc initiation without high frequency
- Continuous output control to focus arc for different material thicknesses
- Front panel purge control for easy air flow adjustment
- Parts-in-Place safety system detects correct consumable installation
- Cool operation with long consumable life from advanced electrode design
- Engine drive compatible with Lincoln Ranger or Vantage welders
- CNC and robotic cutting compatible
- Internal water separator and air regulator included
- Lightweight and portable at only 45 lbs
- Single or three phase operation, 50 or 60 hertz
Included
- Tomahawk 1000 power source (MACHINE ONLY)
Specifications
| Model | Tomahawk 1000 |
|---|---|
| Product Number | K2808-1 |
| Serial Number | P1131103407 (November 2011) |
| Output Current | 60a |
| Input Voltage Range | 208-600v AC |
| Phase | Single or three phase |
| Frequency | 50 or 60 hz |
| Maximum Cut Capacity (Mild Steel) | 1 in |
| Recommended Cut Capacity | 3/4 in |
| Severance Capacity | 1-1/4 in |
| Open Circuit Voltage | 270v DC |
| Air Pressure Required | 80 psi |
| Duty Cycle | 100% at rated output |
| Design | Inverter |
| Compatible Materials | Mild steel, stainless steel, aluminum, brass, copper |
| Process | Air plasma cutting and gouging |
Dimensions
| Overall Length | 22.1 in (561 mm) |
|---|---|
| Overall Width | 8.5 in (216 mm) |
| Overall Height | 15.2 in (386 mm) |
| Weight | 45 lbs (20 kg) |
This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
