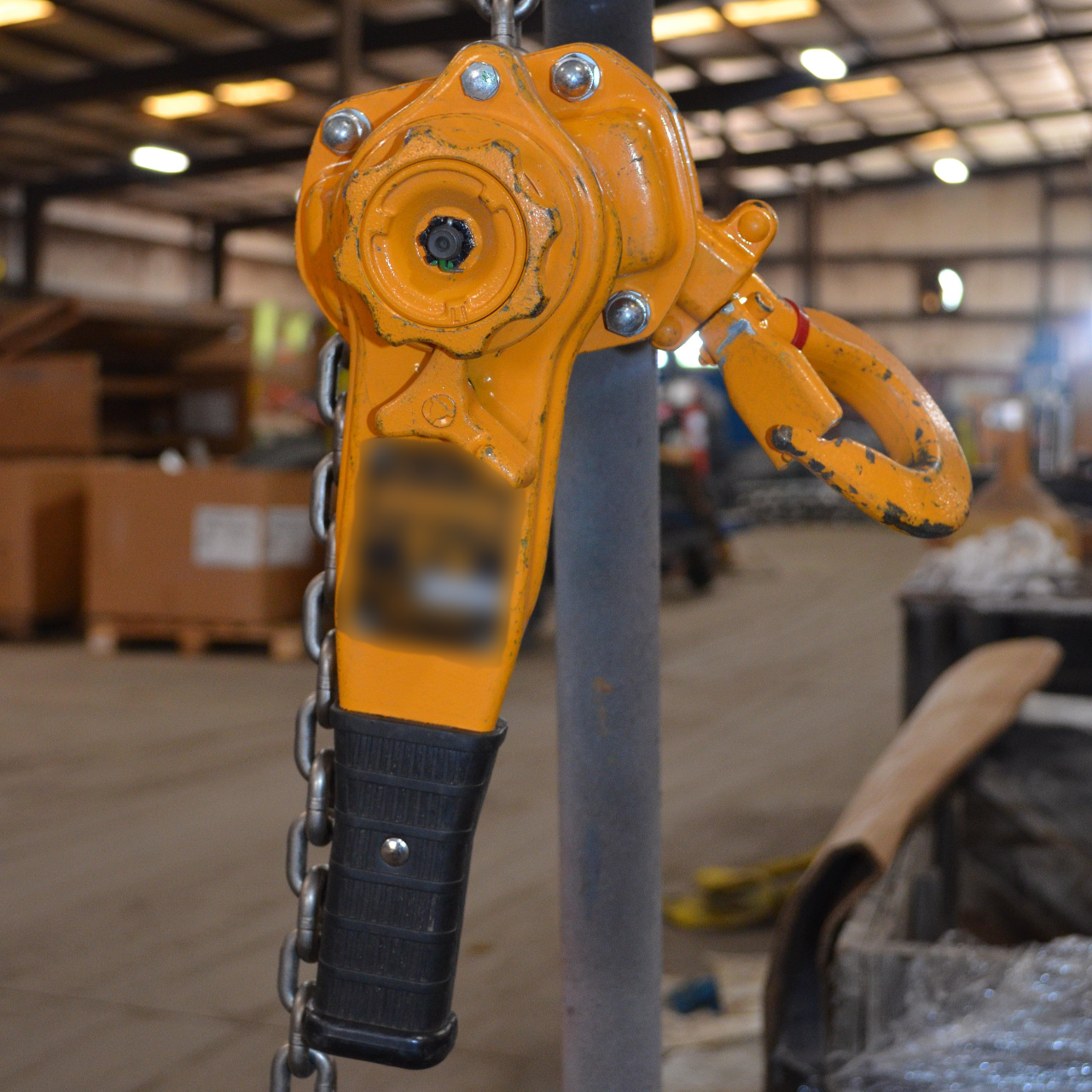

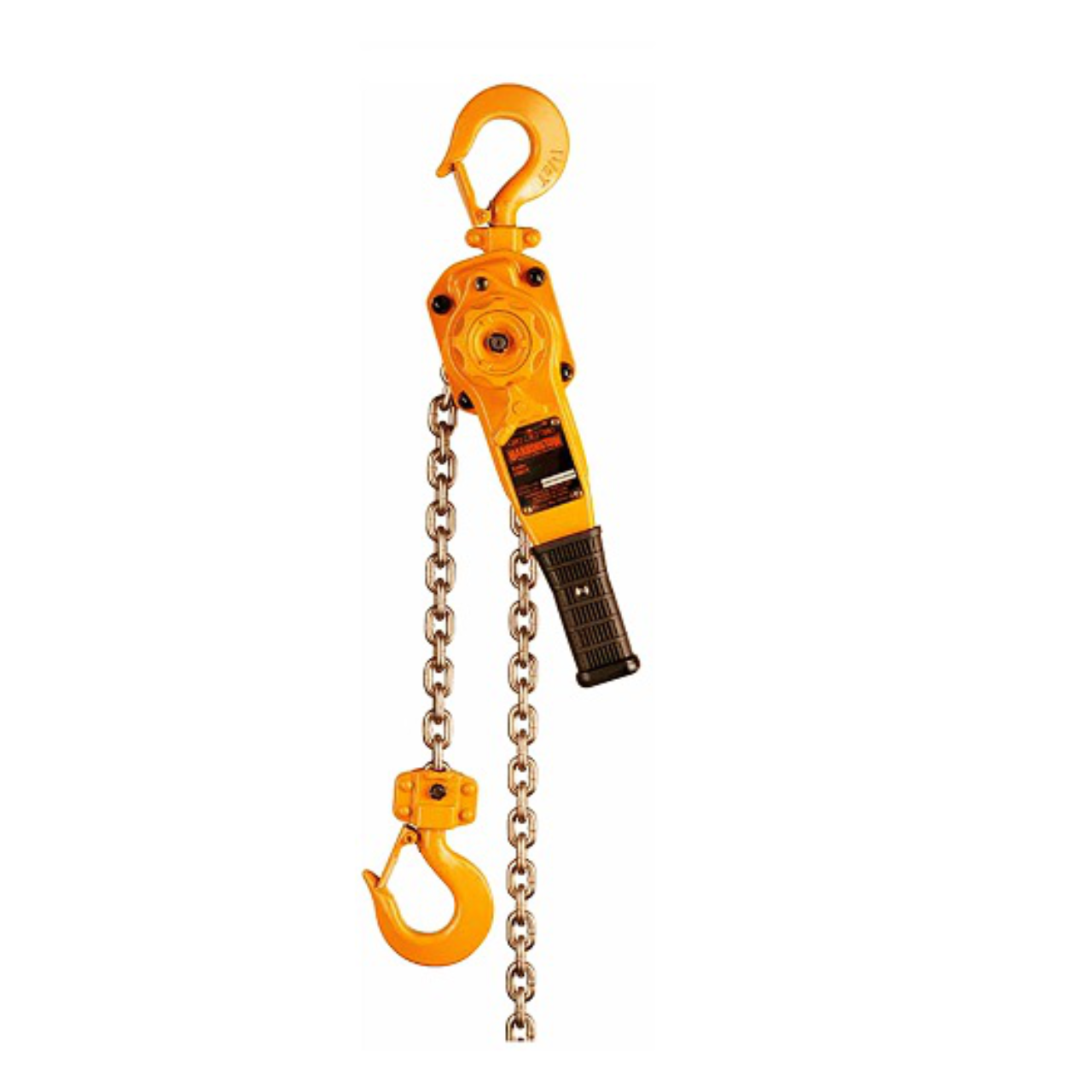

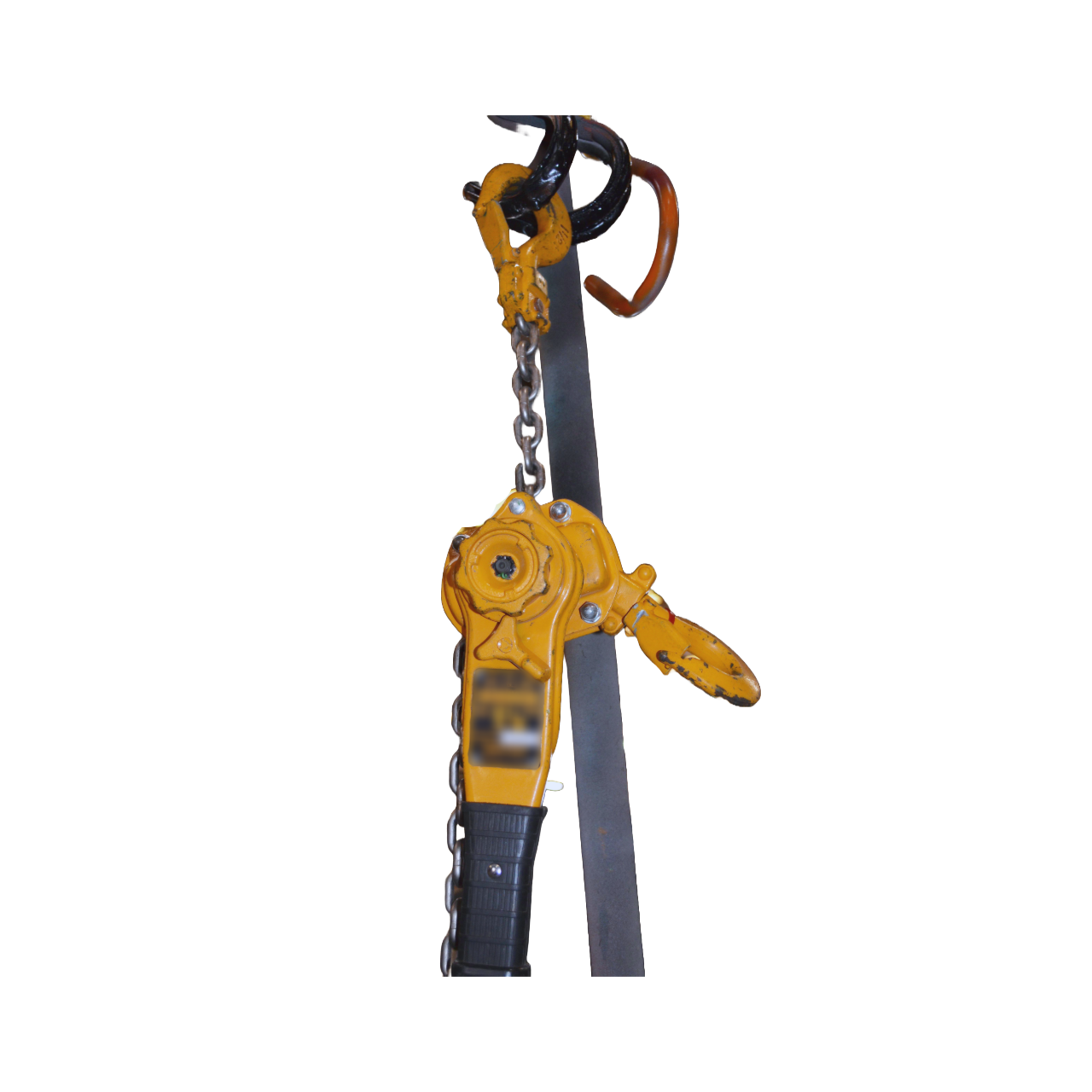

Harrington LB 3 Ton Lever Hoist, Come Along with 10' Lift with load test certs.
Rugged, all-steel construction that actually weighs less than comparable aluminum models.
Get positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces. Includes two brake pawls for additional reliability.
Enjoy protection against dirt and moisture with a totally enclosed brake mechanism.
Ensure long life with machined, heat-treated, split load double reduction gears.
Operate in close quarters with short steel handle and 15-degree recovery strokes.
Patented spring-loaded freewheel mechanism permits easy adjustment of the load chain and safeguards against accidental freewheeling under load.
Equipped with standard rubber grip for non-slip operation.
Item: Lever Chain Hoist
Load Capacity: 6,000 lb
Hoist Lift: 10 ft
Includes: Safety Latch Hooks
Chain Length: 11 ft
Hook Opening: 1 1/2 in
Lever Length: 16 5/16 in
Chain: Manganese
Standards: ANSI/ASME B30.21
Hoist Mount: Hook Mounted - No Trolley
Hoist Overload Protection: No
Pull to Lift Rated Load: 69 lb
Min. Between Hooks: 15 39/64 in
Brake: Weston Style Load Brake
Finish: Electrostatic Enamel
Reeving: 1
Sold out
