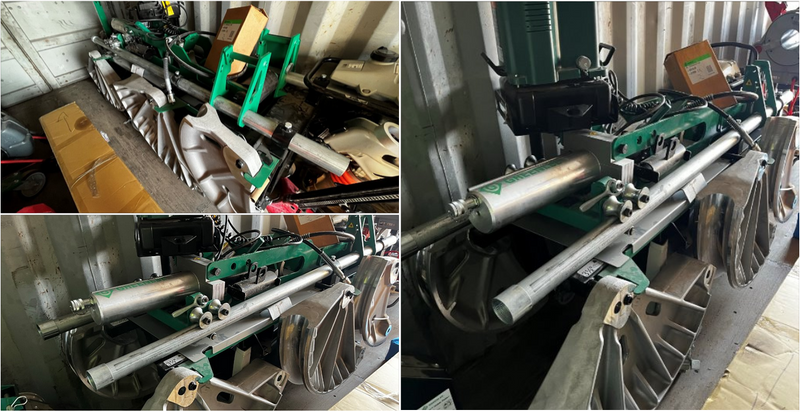

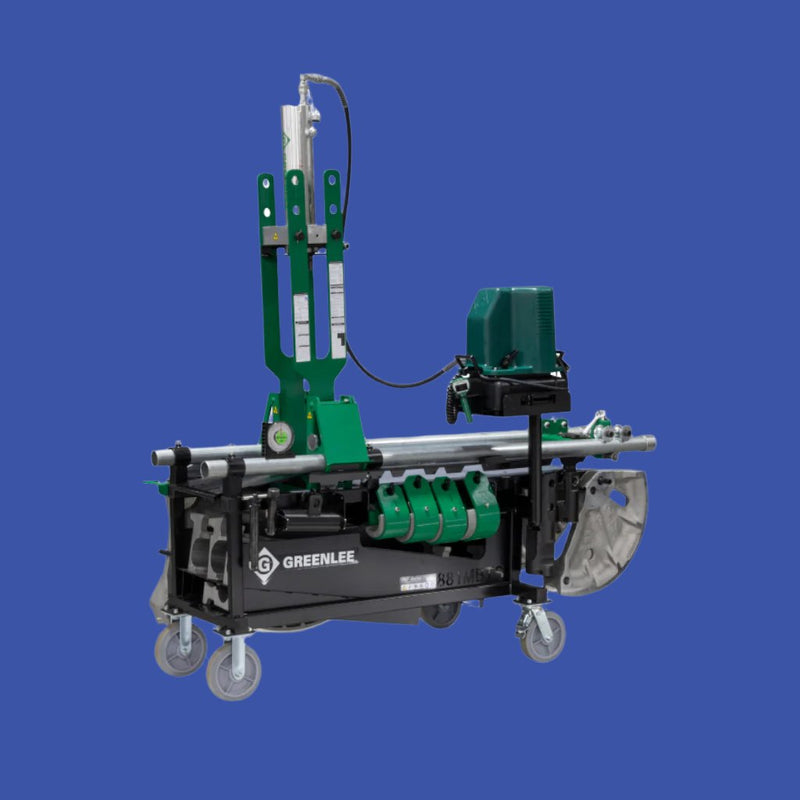

The 881GX Cam Track® Hydraulic Bender is designed to bend 2-1/2 inch to 4 inch Rigid, IMC, and EMT conduit. It can be mounted and operated on the Greenlee Mobile Bending Table (MBT) or operated on the floor. See catalog for available configurations.
Features
Dedicated 90˚ bending shoe groups containing a shoe, follow bar, and saddle
Extended yoke to reduce time changing accessories
Lighter follow bars to optimize user ergonomics
Spring pins to reduce the amount of hitch pins used
Specifications
Specification
Details
Capacity
2-1/2 inch, 3 inch, 3-1/2inch, and 4 inch EMT, IMC, and Rigid conduit
Weight
1,132 lbs
Dimensions
80 inch x 31.7 inch x 56.8 inch (transport mode with accessories)
Bending Angle
0 to 90 degrees
Bending Capabilities
2-1/2 inch, 3 inch, 3-1/2 inch, and 4 inch Steel Rigid, IMC, EMT; 2-1/2 inch, 3 inch, 3-1/2 inch, and 4 inch Aluminum Rigid; 2-1/2 inch and 3 inch Stainless Steel Rigid; 2-1/2 inch, 3 inch, 3-1/2 inch, and 4 inch Schedule 40 pipe
Storage Box Dimensions (H x L x W)
25 inch x 60 inch x 24 inch (63.5 cm x 152.4 cm x 60.96 cm)
Bender Assembly and Accessories in Storage Box Weight
882 lbs (400 kg)
Bending Shoe Weights
2-1/2 inch – 35 lb (16 kg); 3 inch – 54 lb (25 kg); 3-1/2 inch – 71 lb (32 kg); 4 inch – 87 lb (39 kg)
Follow Bar Weights
2-1/2 inch – 22 lb (10 kg); 3 inch – 30 lb (14 kg); 3-1/2 inch – 47 lb (21 kg); 4 inch – 63 lb (29 kg)
