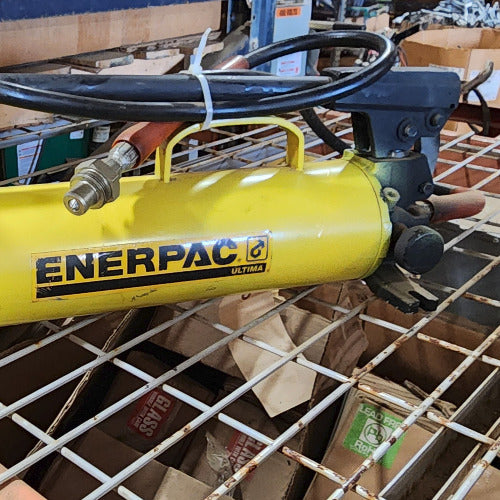

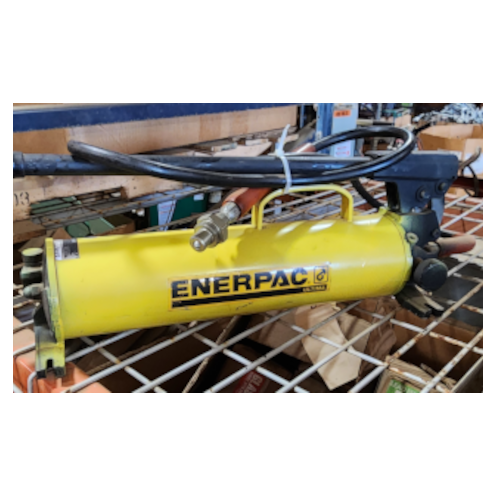

Enerpac P80, Two Speed, Hydraulic Hand Pump w/ Hose Reconditioned and 1 Year Operational Warranty
DETAILS:

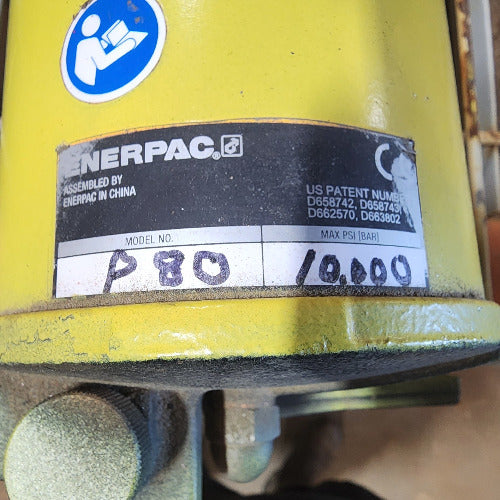

Model:P80 | ECCN:EAR99 | Harmonization:8413200000
Series:P | Product Line:Industrial Tools
Ultima Steel Hand Pumps are durable, portable, and highly efficient. Each model in the series features an all-steel construction, a chrome plated plunger, and a wiper system for long-lasting performance.
All except the P39 are 2 stage pumps, which reduces the number of handle strokes by as much as 78% compared to a single speed pump. This is ideal for applications when high flow is needed at the first stage, (such as when advancing a cylinder to the point of load contact). The pump switches automatically to the second stage which is the low flow high-pressure stage.
With a choice of oil capacities up to 453 in3 (7423 cm3), you will find Ultima Steel Hand Pumps that can handle multiple cylinder hook-ups, including models to suit either single-acting and double-acting cylinders.
Reduced handle effort and ergonomic grip for less operator fatigue
Vent free reservoir eliminates spills
Quick grip handle allows for easy transport
Integral reservoir over-pressurization protection
Maximum Operating Pressure (psi)
10,000
Pressure Rating (psi) 1st Stage
500
Pressure Rating (psi) 2nd Stage
10,000
Cylinder Compatability
Single-acting
Pump Type
Two Speed
Reservoir Capacity (in
3)
134
Usable Oil Capacity (in
3)
134
Maximum Flow at Rated Pressure
.15 in3/stroke
Oil Displacement per Stroke (in
3) 1st Stage
1
Oil Displacement per Stroke (in
3) 2nd Stage
0.15
Maximum Handle Effort (lbs)
77
Piston Stroke (in)
1
Valve Operation
Manual
Power Source
Manual
Weight (lbs)
23.6
.
**3
