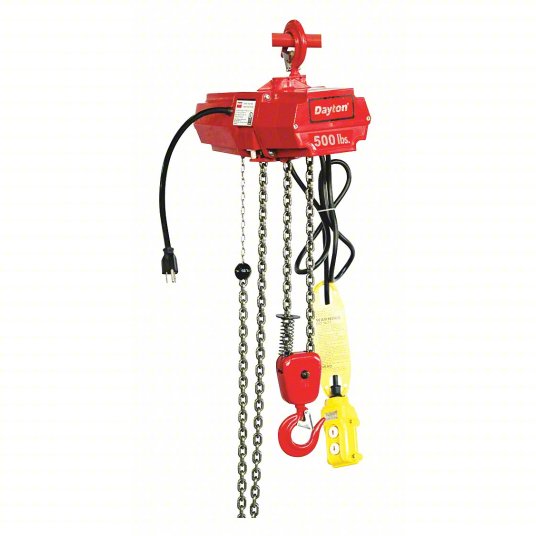

Dayton 2GTD2 Electric Chain Hoist - Reconditioned
Reconditioned Dayton 2GTD2 light duty electric chain hoist with a 500 lb lifting capacity and 15 ft maximum lift. Hook mounted with no trolley, push button pendant controls, and a load brake for safe operation. Rated for indoor use on 115V AC single phase power.
Features
- 500 lb lifting capacity, 0.25 ton
- Push button pendant controls with 11 ft controller cord
- Load brake for safe, controlled lifting
- Hook with safety latch lifting hook
- Steel body and lifting hook construction
- Grade 80 alloy steel load chain, 2 load chains
- IP54 rated pendant
- ANSI/ASME B30.16 compliant, CUL Listed, NEMA Certified
Included
- 1x Dayton 2GTD2 Electric Chain Hoist
Specifications
| Model | 2GTD2 |
|---|---|
| SKU | 2GTD2 |
| Lifting Capacity | 500 lb (0.25 ton) |
| Operating Voltage | 115V AC |
| Phase | 1 |
| Max Current Draw | 3 A |
| Motor Horsepower | 1/8 hp |
| Lift Speed | 7 fpm |
| Maximum Lift | 15 ft |
| Duty Classification | H2 - Light Duty |
| Mount Type | Hook Mounted - No Trolley |
| Chain Grade | Grade 80 Alloy Steel |
| Pendant IP Rating | IP54 |
| Compliance | ANSI/ASME B30.16, CUL Listed, NEMA Certified |
| Condition | Reconditioned |
Dimensions
| Body Length | 14-1/4 in |
|---|---|
| Body Width | 6 in |
| Body Depth | 4-5/8 in |
| Headroom | 16 in |
| Weight | 35 |
This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
