Crosby 1021287 G-2160 Wide Body Sling Shackle - 55 Ton Reconditioned w/ 1 Year Operational Warranty
Crosby 1021287 G-2160 Wide Body Sling Shackle - 55 Ton Reconditioned w/ 1 Year Operational Warranty
  • SKU: Crosby 1021287

Crosby 1021287 G-2160 Wide Body Sling Shackle - 55 Ton Reconditioned w/ 1 Year Operational Warranty

$1,375.00 $1,950.00
  • Vendor: Crosby
  • Barcode: 31162803

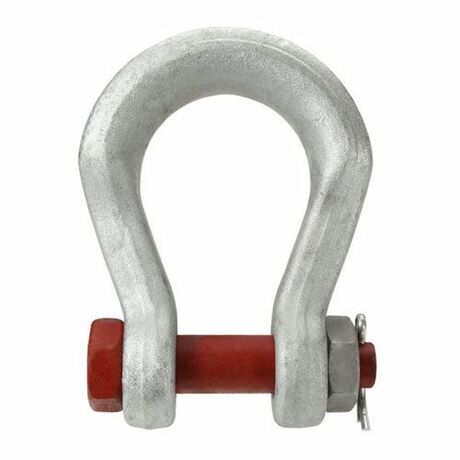

Crosby 1021287 G-2160 Wide Body Sling Shackle - 55 Ton

2-Ready to ship in 2 to 3 days of order

3 or more Ready To Ship in 10 to 14  Days or Less

If you have questions on this or any other product you see or don't see on our site please use the chat line or email rraustis@gequip.com

PRODUCT DESCRIPTION

  • Increase in shackle bow radius provides minimum 58% gain in sling bearing surface and eliminates need for a thimble
  • Increases usable sling strength a minimum of 15% and greatly improves life of wire rope slings
  • Can be used to connect synthetic web slings, synthetic round slings or wire rope slings
  • All sizes Quenched & Tempered for maximum strength
  • Forged alloy steel from 7 through 300 metric tons
  • Cast alloy steel from 400 through 1550 metric tons
  • Proof tested as follows:
    • 7 through 75 metric tons and 200 through 300 metric tons: 2 x WLL
    • 125 metric tons: 1.6 x WLL
    • 400 metric tons and higher: 1.33 x WLL

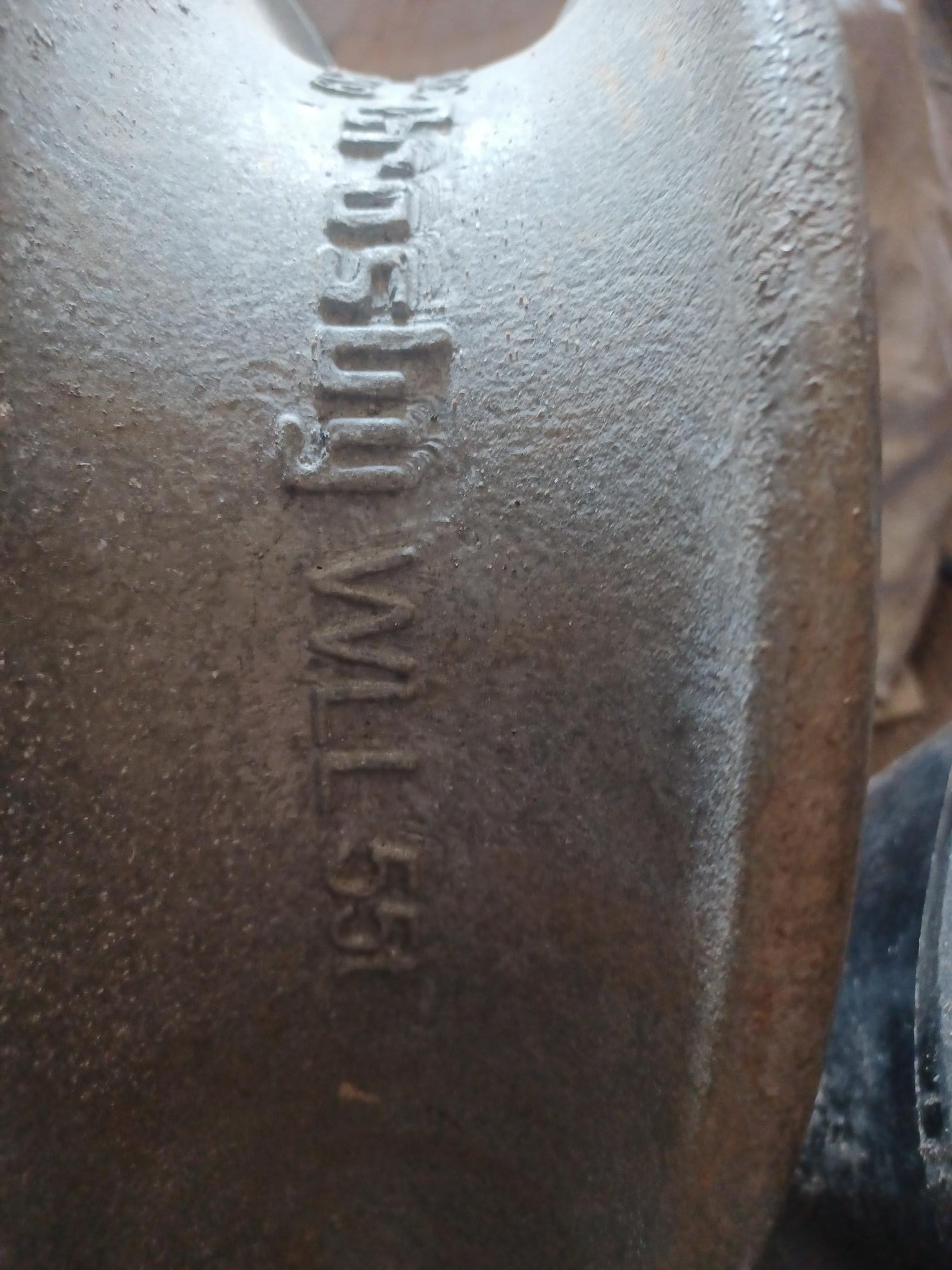

  • All ratings are in metric tons, embossed on side of bow
  • G-2160, (7 through 55t), are hot-dip galvanized and pins are painted red
  • G-2160 (75t and larger), bows are furnished Dimetcoted; Pins are Dimetcoted, then painted red
  • Shackles 30t and larger are RFID equipped
  • Approved for use at -40° C (-40° F) to 204° C (400° F)
  • Bow and bolt are certified to meet Charpy impact testing of 42 Joules (31 ft-lb) min. avg. at -20° C (-4° F)
  • All 2160 shackles are individually proof tested and magnetic particle inspected. Crosby certification available at time of order
  • Shackles requiring ABS, Lloyds and other certifications are available upon special request and must be specified at time of order
  • Type approved and certification to DNV Rules for Certification of Lifting Appliances, and are produced in
    accordance with DNV MSA requirements; databook is provided that includes required documents:
    • Serialization / Identification
    • Material Testing (physical / chemical / Charpy)
    • Proof Testing
  • Look for the Red Pin®... the mark of genuine Crosby quality

This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 1-year operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.  GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
