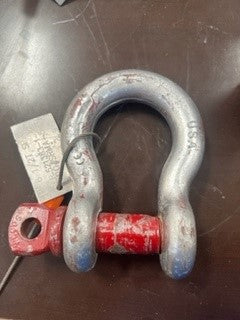

Crosby G-209 1 inch Load Tested Screw Pin Anchor Shackle-8-1/2 Ton WLL-Reconditioned

Crosby G-209 1 inch Load Tested Screw Pin Anchor Shackle-8-1/2 Ton WLL-Reconditioned

$87.45 USD
$102.87 USD $87.45 USD
Sale Sold out
Shipping calculated at checkout.

Crosby G-209 1 inch Load Tested Screw Pin Anchor Shackle-8-1/2 Ton WLL-Reconditioned

Ready To Ship Next Business Day

  • Load Tested at 125%
  • Meets performance requirements of Grade 6 shackles
  • Forged, Quenched & Tempered, with alloy pins
  • Working Load Limit and Grade 6 permanently shown on every shackle
  • Hot-dip galvanized (G)
  • Sizes 3/8" and below are mechanically galvanized
  • Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles
  • Shackles 25t and larger are RFID equipped
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification; proof testing and certification available when requested at the time of order, charges will apply
  • Approved for use at -40° C (-40° F) to 204° C (400° F)
  • All 209 and 210 shackles can meet charpy requirements of 42 Joules (31 ft-lb) avg. at -20° C (-4° F) upon special request
  • Meets or exceeds all requirements of ASME B30.26
  • Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting Appliances available; certificates available when requested at time of order and may include additional charges
  • G-209 Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271G, Type IVA, Grade A, Class 2, except for those provisions required of the contractor
  • Look for the Red Pin®... the mark of genuine Crosby quality

SPECIFICATIONS

MPN: 1018534
Model - G-209
Size - 1"
Type - Screw Pin Anchor
Material- Carbon Steel
WLL (tons) - 8-1/2
WLL (lbs) -18,700
Safety Factor - 6:1
Inside Length - 3.75"
Inside Width - 2.69"
Throat Opening - 1.69"
Pin Diameter - 1.13"
Approx. Weight (lbs) - 5.03

  .


Disclaimer This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. These units have been repainted and the manufacturer's logo may or may not be visible. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product. We offer a 1-year operational warranty on all reconditioned equipment.
