Burndy YA8CL3BOX Copper Compression Lug – 50pk - New Surplus

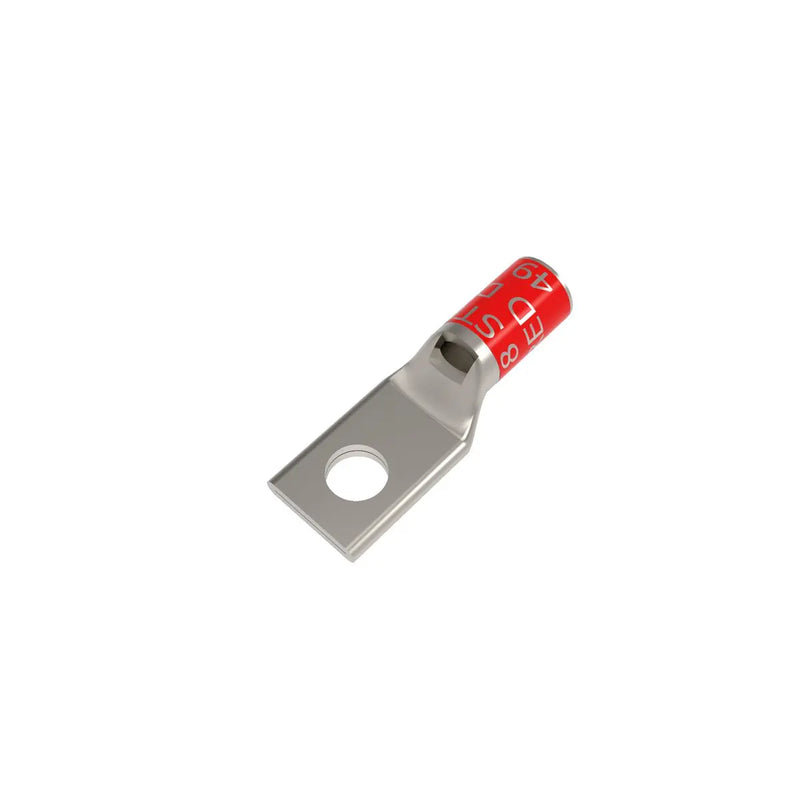

YA8CL3BOX 1-hole copper compression lugs for 8 AWG conductors. Standard barrel with inspection window, tin-plated; 3/8″ stud; rated up to 35 kV at 90 °C.
Features
- Standard barrel with internal chamfer for smooth wire insertion
- Inspection window for visual verification of conductor insertion
- Electro-tin plating for corrosion resistance
- Stamped and color-coded (Red; Die 49) for easy identification
- Meets UL 486A-486B; RoHS compliant; 600 V to 35 kV; 90 °C
Included
- x50 YA8CL3BOX Copper Compression Lugs
Specifications
| Conductor Size | 8 AWG (copper; code/flex) |
|---|---|
| Stud / Hole | 3/8″ stud; 0.41″ nominal hole (0.39″ bolt-hole) |
| Barrel / Window | Standard barrel with inspection window; internal chamfer |
| Die Index / Color | 49 / Red |
| Material / Finish | Copper / Tin-plated |
| Voltage Rating | Up to 35 kV; 600 V–35 kV listed |
| Temperature Rating | 90 °C |
| Standards | UL 486A-486B; RoHS compliant |
Dimensions
| Overall Length (L) | 1.51 in |
|---|---|
| Barrel Length (B) | 0.44 in |
| Pad Width | 0.58 in |
| Barrel Outside Diameter | 0.27 in |
| Hole Diameter | 0.41 in (nominal) |
| Stud Size | 3/8 in |
| Strip Length | 7/16 in |
| N / Z | N = 0.41 in; Z = 0.42 in |
