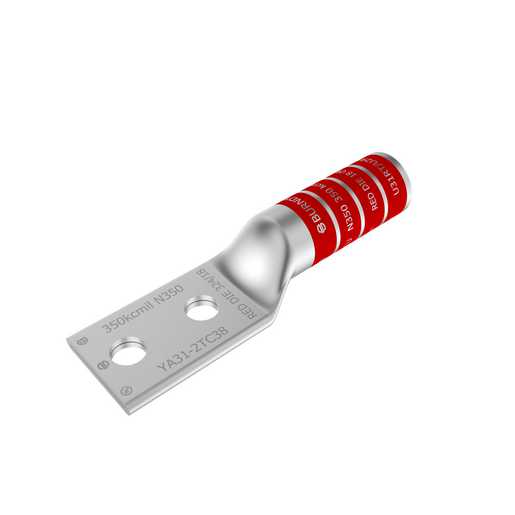

Burndy YA312N Copper Compression Lug – 10pk - New Surplus
YA312N two-hole copper compression lugs for 350 kcmil conductors. Long-barrel, tin-plated, 1/2″ stud, 1-3/4″ spacing; 90 °C, rated up to 35 kV.
Features
- Long barrel with internal chamfer for smooth insertion and higher crimp count
- Electro-tin plating for corrosion resistance
- Two-hole tongue helps prevent rotation
- Stamped and color-coded for easy identification (Red; Die 18/324)
- Meets UL 486A-486B; RoHS compliant; 90 °C; up to 35 kV
Included
- 10 × YA312N Copper Compression Lugs
Specifications
| Conductor Size | 350 kcmil (copper) |
|---|---|
| Stud / Hole | 1/2″ stud; 0.52″ bolt hole; 0.56″ nominal hole |
| Hole Spacing | 1-3/4″ (two-hole) |
| Type / Material | Long-barrel copper lug, tin-plated |
| Die Index | 18/324 |
| Temperature Rating | 90 °C |
| Voltage Rating | Up to 35 kV |
| Standards | UL 486A-486B; RoHS compliant |
| Application | Wire termination; compression crimp |
Dimensions
| Overall Length (L) | 5.69 in |
|---|---|
| Pad Width | 1.29 in |
| Barrel Outside Diameter | 0.88 in |
| Hole Spacing | 1.75 in |
| Hole Diameter | 0.56 in (nominal); 0.52 in bolt hole |
| Strip Length | 2-1/16 in |
| N Dimension | 0.62 in |
| Z Dimension | 0.63 in |
Disclaimer
Buyer understands that the Goods described herein are new surplus by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
