Burndy YA26LBOX 2/0 AWG 3/8
Burndy YA26LBOX 2/0 AWG 3/8
Burndy YA26LBOX 2/0 AWG 3/8
Burndy YA26LBOX 2/0 AWG 3/8
  • SKU: Bundy YA26LBOX

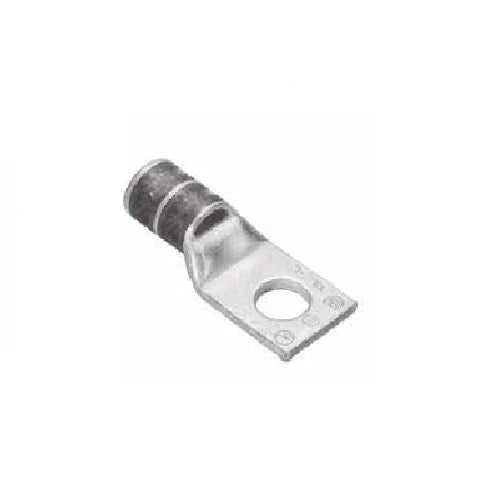

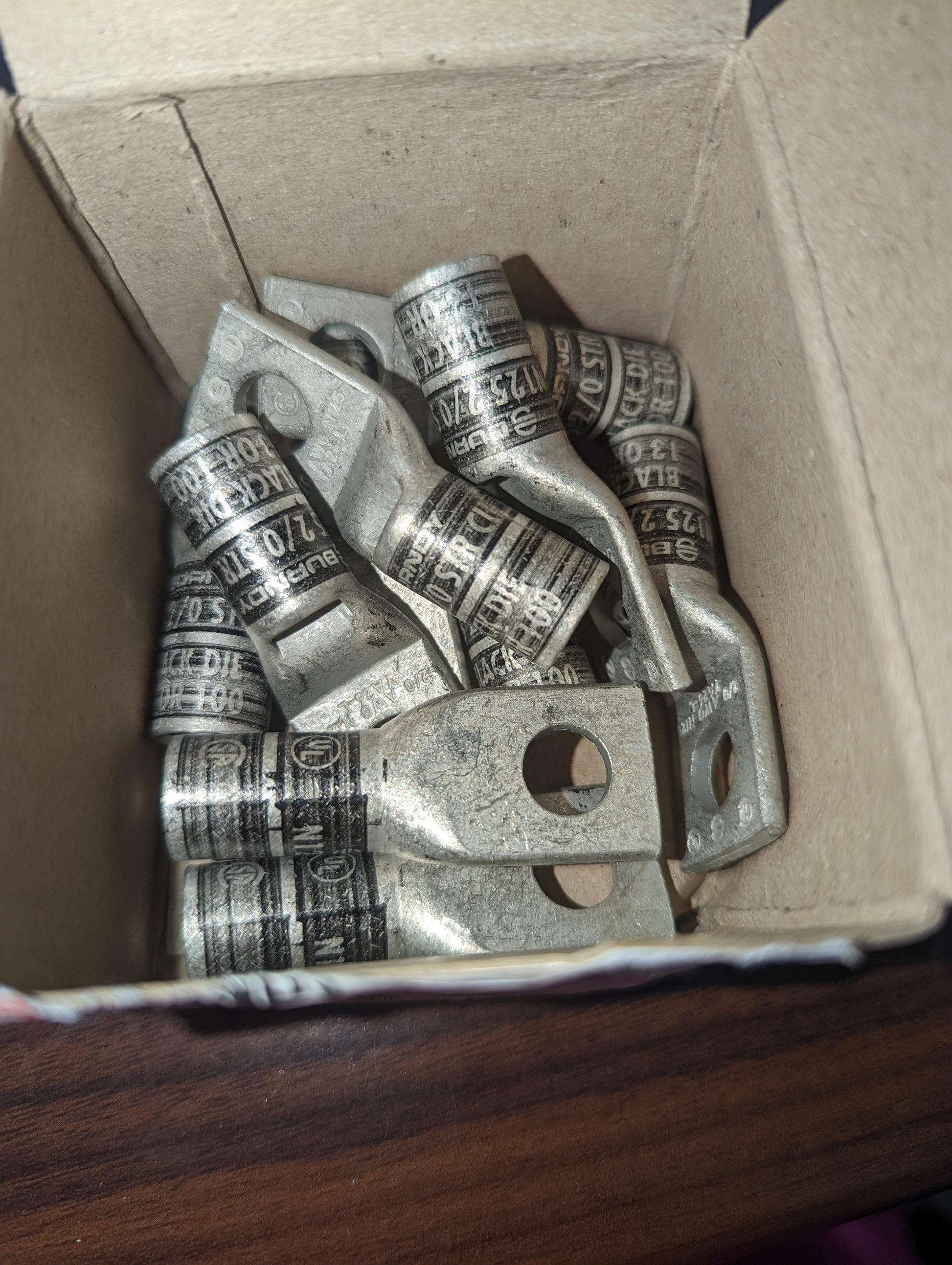

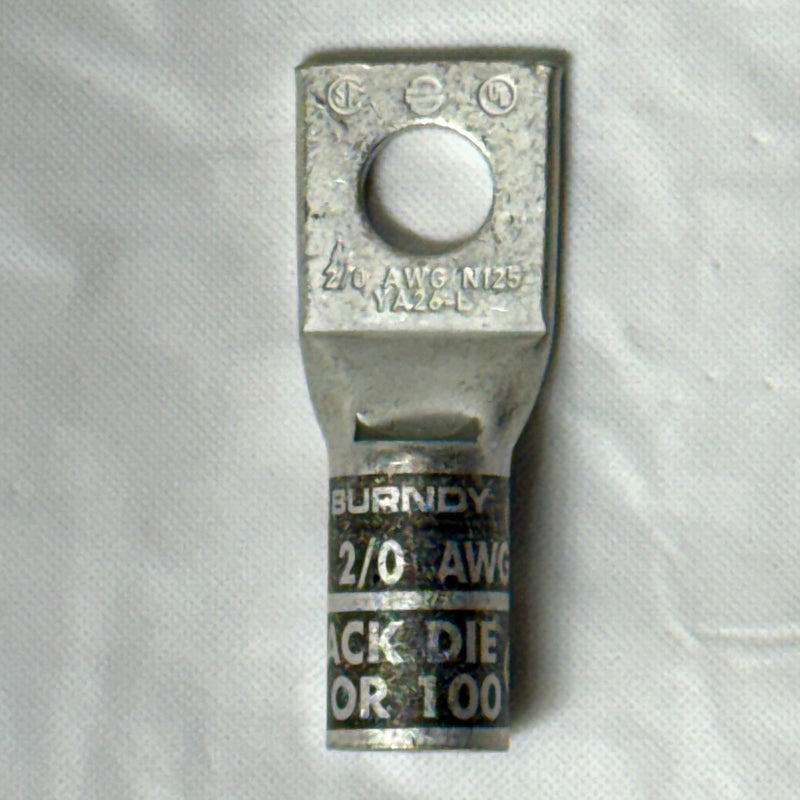

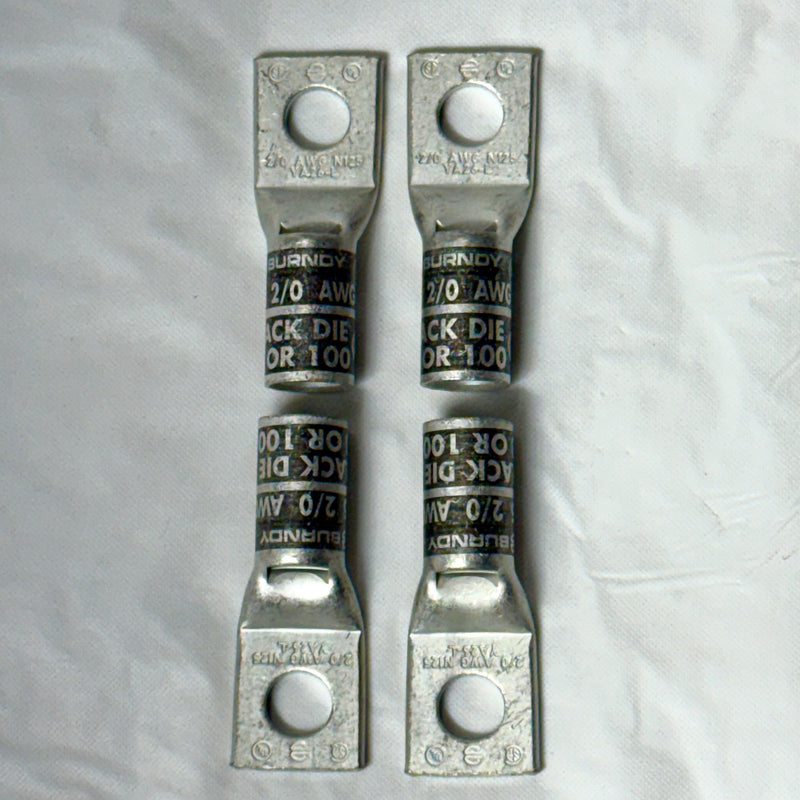

Burndy YA26LBOX 2/0 AWG 3/8" Stud 1 Hole Short Barrel Copper Lug Inspection Window, 10 PER BOX-NEW SURPLUS

$39.97 $43.30

65 Boxes Left Ready to Ship Next Business Day

  • Vendor: Burndy
  • Barcode: 781810553756

Burndy YA26LBOX 2/0 AWG 3/8" Stud 1 Hole Short Barrel Copper Lug Inspection Window, 10 PER BOX    NEW SURPLUS

Ready to ship   Next Business Day

Specification

Burndy YA26LBOX 2/0 AWG 3/8" Stud 1 Hole Short Barrel Copper Lug Inspection Window

Also Known as :

Burndy Cable, Barrel Copper , Tin Plated, Stud, YA26LBOX

Description :

Hylug Copper Compression Lug, 2/0 AWG, 1 Hole w/ Inspection Window, 0.39 Inch Bolt Hole Size, 3/8 Inch Stud, Electro-Tin Plated, Skived Short Barrel

Stud Size :

  • 3/8 Inch

Voltage Rating :

  • 600-35kV Volts

Lug Material :

  • Copper

Color Code :

  • Black

Wire Size :

  • 2/0 AWG, 125 (61) Navy

Standards :

  • UL Listed
  • CSA Certified
  • RoHS Compliant

Specification :

• Dimensional :
- Tongue Angle:
 Straight
- Strip Length: 1
- Length (in): 2.19
- Tongue Type: Standard
- Bolt Hole Size (in): 0.39
- Barrel Style: Chamfered, Skived
- Thickness: 0.12
- B Length (in):
 0.94
- Weight: 6.63
- Pad Width (in):
 0.83

• General :
- Number of Holes:
 1
- Product Description: Copper Compression lug, 1 Hole w/ Inspection Window, 2/0 AWG, 3/8" Stud, Short Barrel, Tin Plated

• Conductor(s) :
- Flex (Class G) Size Range: N/A
- Flex (Class H) Size Range:
 N/A
- Flex (Class I) Size Range:
 N/A
- Copper Solid Size Range:
 N/A
- DLO Size (Range):
 N/A
- Copper Stranded (Range): 2/0 AWG

• Physical :
- Type of Plating:
 Tin- Electro Plated
- Color Code: Black
- Plated (Yes or No):
Y
- Index Number:
 13
- Product Material:
 Copper

• Approvals / Certifications:
- UL Listed:
 Y
- CSA Certified:
 Y
- ROHS Compatible:
Compliant



DISCLAIMER

Buyer understands that the Goods described herein are new surplus by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
