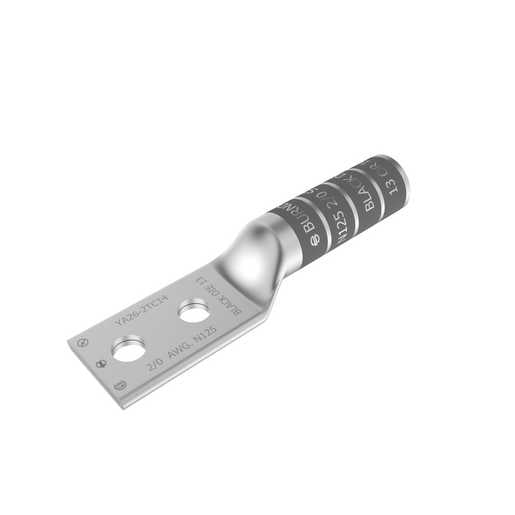

Burndy YA262N Copper Compression Lug - New Surplus
YA262N, 2/0 AWG copper compression lug with 2-hole, 1/2" studs, 1-3/4" spacing, long barrel with internal chamfer. Tin plated, UL/CSA, 90°C, up to 35 kV. Black color-coded, Die Index 13.
Features
- Internal chamfer for smooth wire insertion
- Long barrel allows multiple crimps for increased mechanical strength
- Electro-tin plated for corrosion resistance
- Clearly marked stamping and color coding
- 2-hole design prevents rotation
Included
- 1 x Burndy YA262N Copper Compression Lug
Specifications
| Conductor Size | 2/0 AWG |
|---|---|
| Stud Size | 1/2" |
| Voltage Rating | 35 kV |
| Temperature Rating | 90°C |
| Die Index | 13 |
| Material | Copper, Tin Plated |
| Certifications | UL 486A-486B, CSA, RoHS Compliant |
Dimensions
| B Length | 1-1/2 in |
|---|---|
| Bolt Hole Size | 0.52 in |
| D Dimension | 3.02 in |
| Pad Width | 0.83 in |
| Strip Length | 1-9/16 in |
| Z Dimension | 0.64 in |
