Burndy YA25L4BOX 1/0 AWG 3/8
Burndy YA25L4BOX 1/0 AWG 3/8
Burndy YA25L4BOX 1/0 AWG 3/8
  • SKU: Burndy YA25L4BOX

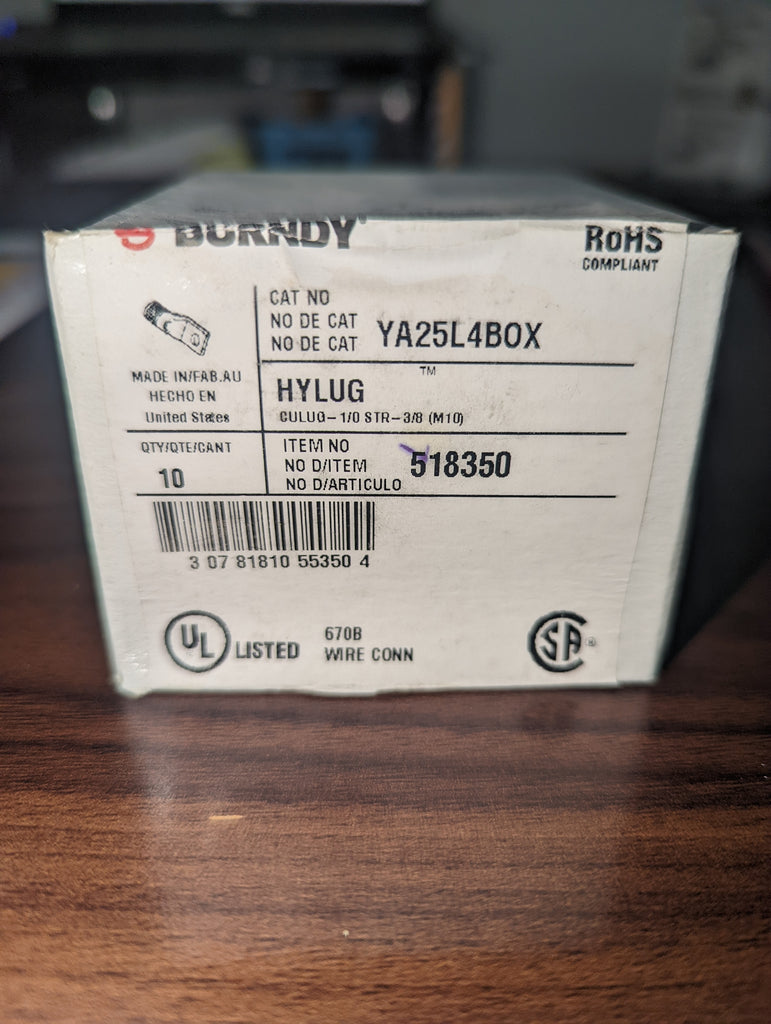

Burndy YA25L4BOX 1/0 AWG 3/8" Stud 1 Hole Short Barrel Copper Lug Inspection Window, 10 PER BOX NEW SURPLUS

$20.00 $25.55
  • Vendor: Burndy
  • Barcode: 781810553503

Burndy YA25L4BOX 1/0 AWG 3/8" Stud 1 Hole Short Barrel Copper Lug Inspection Window, 10 PER BOX    NEW SURPLUS

Ready to ship    Next Business Day

Specification

Burndy YA25L4BOX 1/0 AWG 3/8" Stud 1 Hole Short Barrel Copper Lug Inspection Window

Also Known as :

Burndy Cable, Barrel Copper, Tin Plated, Stud, YA25L4BOX

Description :

Hylug Copper Compression Lug, 1 Hole with Inspection Window, 0.39 Inch Bolt Hole Size, 3/8 Inch Stud, Electro-Tin Plated, Chamfered Skived, Short Barrel

Stud Size :

  • 3/8 Inch

Voltage Rating :

  • 600-35kV Volts

Lug Material :

  • Copper

Color Code :

  • Pink

Wire Size :

  • 1/0 AWG, 100 (61) Navy

Standards :

  • UL Listed
  • CSA Certified
  • RoHS Compliant

Specification :

• Dimensional :
- Tongue Angle:
 Straight
- Strip Length: 15/16
- Length (in): 2.09
-  Tongue Type: Standard
- Barrel Style: Chamfered, Skived
- Bolt Hole Size (in): 0.39
- Barrel Type: Standard

- Thickness:
 0.12
- B Length (in):
 0.88
- Pad Width (in):
 0.75
Weight: 4.73

• General :
- Number of Holes:
 1
- Product Description: Copper Compression lug, 1 Hole w/ Inspection Window, 1/0 AWG, 3/8" Stud, Short Barrel, Tin Plated

• Conductor(s) :
- Flex (Class G) Size Range: N/A
- Flex (Class H) Size Range:
 N/A
- Flex (Class I) Size Range:
 N/A
- Copper Solid Size Range:
 N/A
- DLO Size (Range):
 N/A
- Copper Stranded (Range): 1/0

• Physical :
- Type of Plating:
 Tin- Electro Plated
- Bolt Hole Size: 3/8

- Color Code: Pink
- Plated (Yes or No):
Y
- Index Number:
 12
- Product Material:
 Copper

• Approvals / Certifications:
- UL Listed:
 Y
- CSA Certified:
 Y
- ROHS Compatible:
Compliant
-  UL Recognized: N
- CULUS: N
- Industry Standards: UL468A-468B



Buyer understands that the Goods described herein are new surplus by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
