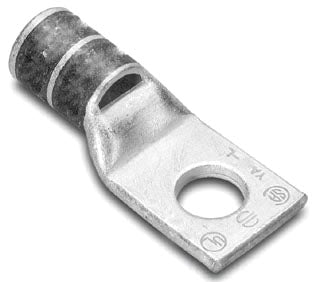

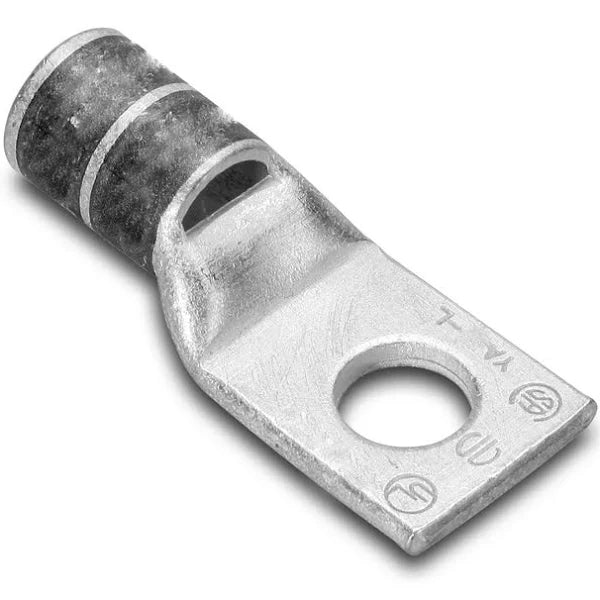

Burndy YA25L2BOX 10015185 Copper Compression Lug, 1 Hole, 1/0 AWG, 10 PER BOX  New Surplus
Burndy YA25L2BOX 10015185 Copper Compression Lug, 1 Hole, 1/0 AWG, 10 PER BOX  New Surplus
Burndy YA25L2BOX 10015185 Copper Compression Lug, 1 Hole, 1/0 AWG, 10 PER BOX  New Surplus
  • SKU: Burndy YA25L2BOX

Burndy YA25L2BOX 10015185 Copper Compression Lug, 1 Hole, 1/0 AWG, 10 PER BOX New Surplus

$29.50 $36.00
  • Vendor: Burndy
  • Barcode: 78181031325

Burndy YA25L2BOX 10015185 Copper Compression Lug, 1 Hole, 1/0 AWG, 10 PER BOX New Surplus

Ready to ship   Next Business Day

Product Specifications

UPC:  78181031325
Pad Size:  0.75 Inch W x 0.12 Inch Thk
Number of Pad Holes:  1
Stud Size:  1/4 Inch
Color:  Pink
Die Index:  12/348
Material:  Electro-Tin Plated Copper
Overall Length:  1.84 Inch
Approval:  UL, CSA
Additional Information:  RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 15/16 Inch; Cable Entry Type Beveled Entry, Chamfered
Catalog Number:  YA25L2BOX
Brand Name:  HYLUG[TM]
Model:  YA-L
Voltage Rating:  600 V to 35 kV
Conductor Material:  Copper
Conductor Size:  100 (Navy), 1/0 AWG Stranded (Code)
Barrel Type:  Short, Skived, Standard, Straight
Barrel Length:  0.88 Inch
CATALOG DESCRIPTION:  CU COMP TERMINAL CODE COND, BVL ENTRY, 1 HOLE W/INSPWINDOW, 1/0 AWG CODE, 100 NAVY, 600 V-35 KV, 1/4" STUD, STANDARD BARREL, TIN PLATED, PINK, 12 OR 348 INDEX
Category:  Large Terminals & Connectors
Full Size Image
Full Technical Description:  Electro-Tin Plated Copper Material; Pink Color; 1.84 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 100 (Navy), 1/0 AWG Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 12/348 Die Index; 0.75 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Short, Skived, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 15/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-L Model
Made in USA:  Yes
Manufacturer:  Burndy Products
Manufacturer Brand:  Burndy Products
Product Description:  BURNDY YA25L2BOX 1/0 STR SHORT 1/4 COPPER LUG
Proposition 65 Warning (CA):  Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Sub-Category:  Compression Cable Lug
UNSPSC:  39121405
UPC 12 Digit:  781810313251
Unique Product Key:  5677314
