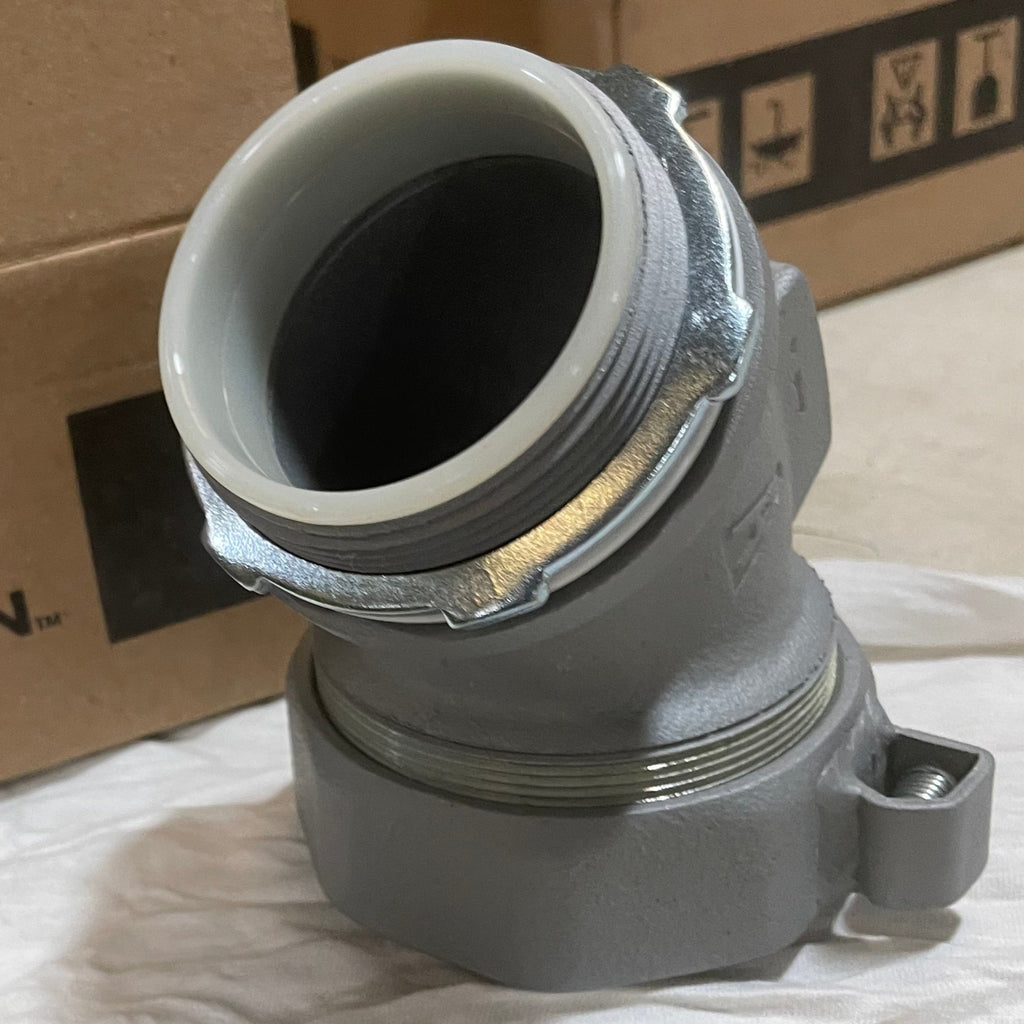

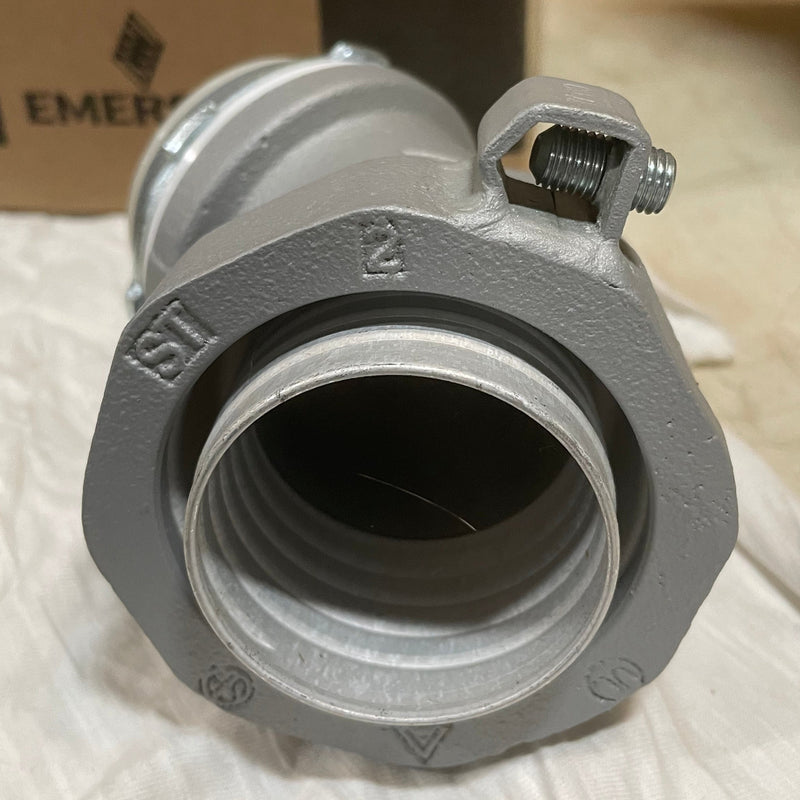

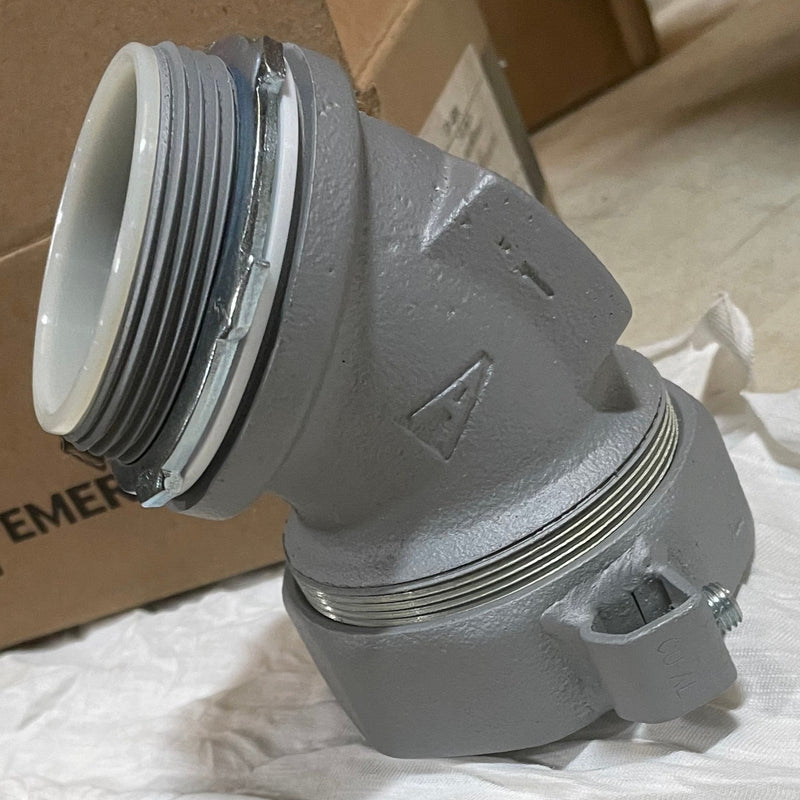

Appleton STB-45200L Connector with Lugs - New Surplus

Description:

45 Degree Type; Zinc Electroplated Chromate/Epoxy Powder Coated Malleable Iron Body/Cap, Aluminum Ferrule, Polypropylene Ring Material; Flexible Metallic Liquid Tight Conduit Used on; UL 467/514B, CSA C22.2 Approval; 2 Inch Trade Size

UPC:

781381403740

Additional Information:

Size 3.75 Inch Diameter; Wire Size 8 to 1/0 AWG; Gland Nut Size 2.19 Inch; Enclosure Type NEMA FB-1, Class I Div 2; Application Outdoor, Commercial and Industrial; Applicable Standard NEC/CEC

Catalog Number:

 STB-45200L

Model:

 STB

Type:

 45 Degree

Throat Type:

 Insulated with Ground Lug

Trade Size:

 2 Inch

Material:

 Zinc Electroplated Chromate/Epoxy Powder Coated Malleable Iron Body/Cap, Aluminum Ferrule, Polypropylene Ring

Approval:

 UL 467/514B, CSA C22.2

Used On:

 Flexible Metallic Liquid Tight Conduit

CATALOG DESCRIPTION:

 STB SERIES 45 DEG LIQUIDTIGHT CONNECTOR, SIZE: 2 IN, CONNECTION: THREADED X COMPRESSION, CONDUCTOR RANGE: 8 - 1/0 AWG, MATERIAL: MALLEABLE IRON, FINISH: CHROMATE, EPOXY POWDER COAT/ZINC ELECTROPLATED, THREAD LENGTH: 0.69 IN, STANDARD:

Category:

 Liquid Tight Flex. Conduit Fittings

Full Technical Description:

 45 Degree Type; Zinc Electroplated Chromate/Epoxy Powder Coated Malleable Iron Body/Cap, Aluminum Ferrule, Polypropylene Ring Material; Flexible Metallic Liquid Tight Conduit Used on; UL 467/514B, CSA C22.2 Approval; 2 Inch Trade Size; Insulated With Ground Lug Throat Type; Size 3.75 Inch Diameter; Wire Size 8 to 1/0 AWG; Gland Nut Size 2.19 Inch; Enclosure Type NEMA FB-1, Class I Div 2; Application Outdoor, Commercial and Industrial; Applicable Standard Nec/Cec; TYPE STB Model

Manufacturer:

 Appleton Electric

Manufacturer Brand:

 Appleton Electric

Shipping Weight: 5.9 lb
