Appleton EYSEF200

Appleton EYSEF200 Sealing Fitting - New Surplus

Description:

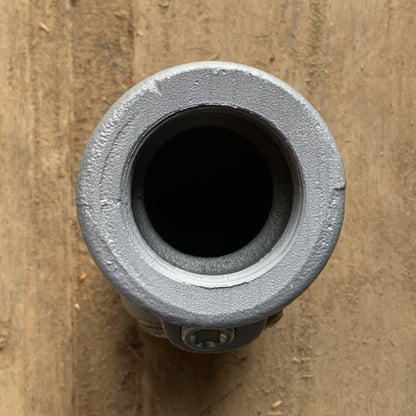

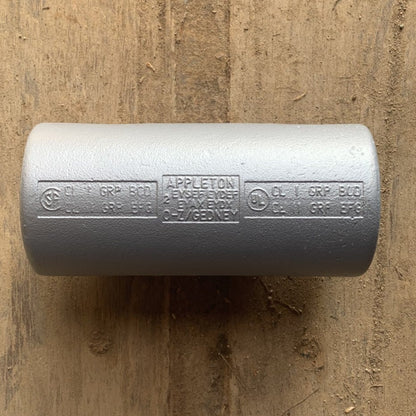

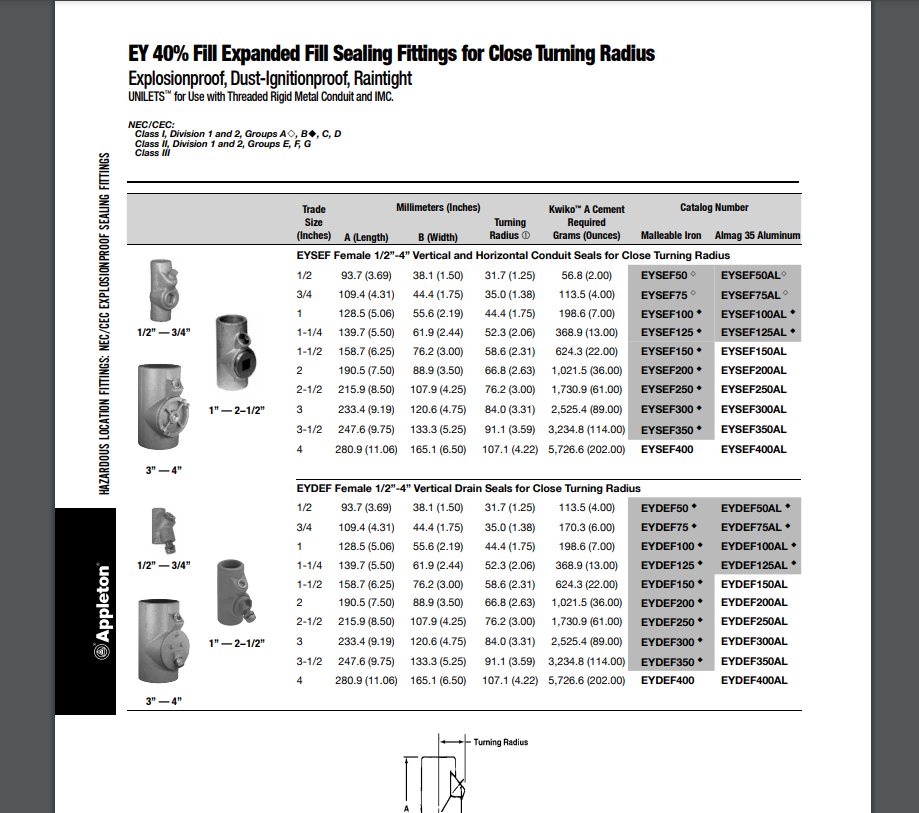

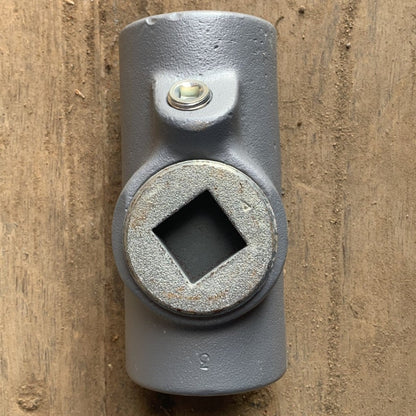

The Appleton Electric EYSEF200 is a 2-inch malleable iron explosionproof conduit sealing fitting designed for vertical and horizontal mounting in hazardous locations classified as Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III. It features a male-to-female threaded connection (2" FNPT x 2" MNPT) and is used to prevent the passage of gases, vapors, or flames from one portion of the conduit system to another. The fitting has a silver finish, an overall length of 7 1/2 inches, and is compatible with IMC and RMC conduit types. It is part of the EYSEF series, which offers 40% expanded fill sealing fittings for close turning radius applications, and complies with CSA C22.2 No. 30 and UL 886 standards.
