Appleton EYSEF100

Appleton EYSEF100 Conduit Seal 1 in. - New Surplus

Description:

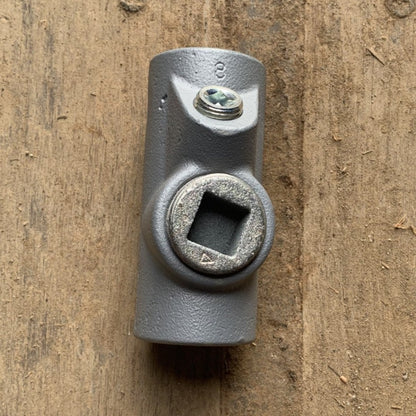

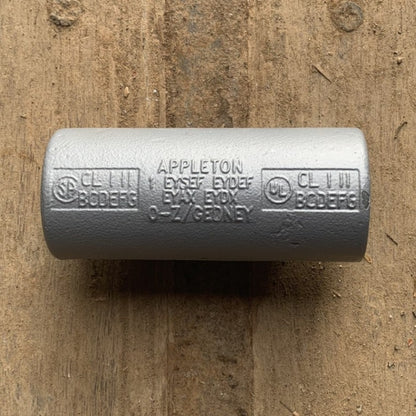

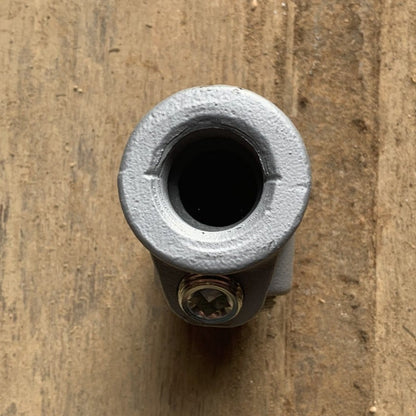

The Appleton Electric EYSEF100AL is a 1-inch aluminum explosionproof conduit sealing fitting from the Unilet EYSEF model series, designed for vertical and horizontal mounting in hazardous locations classified as Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, and Class III. It features a female threaded connection, a turning radius of 1.75 inches, and is made of epoxy powder coated Almag 35 aluminum. The fitting measures 5.06 inches in length and 2.19 inches in width, and complies with UL 1203, UL File Number E10444, CSA C22.2 NO. 30, and CSA 065181 standards for use with threaded rigid metal conduit and IMC.
