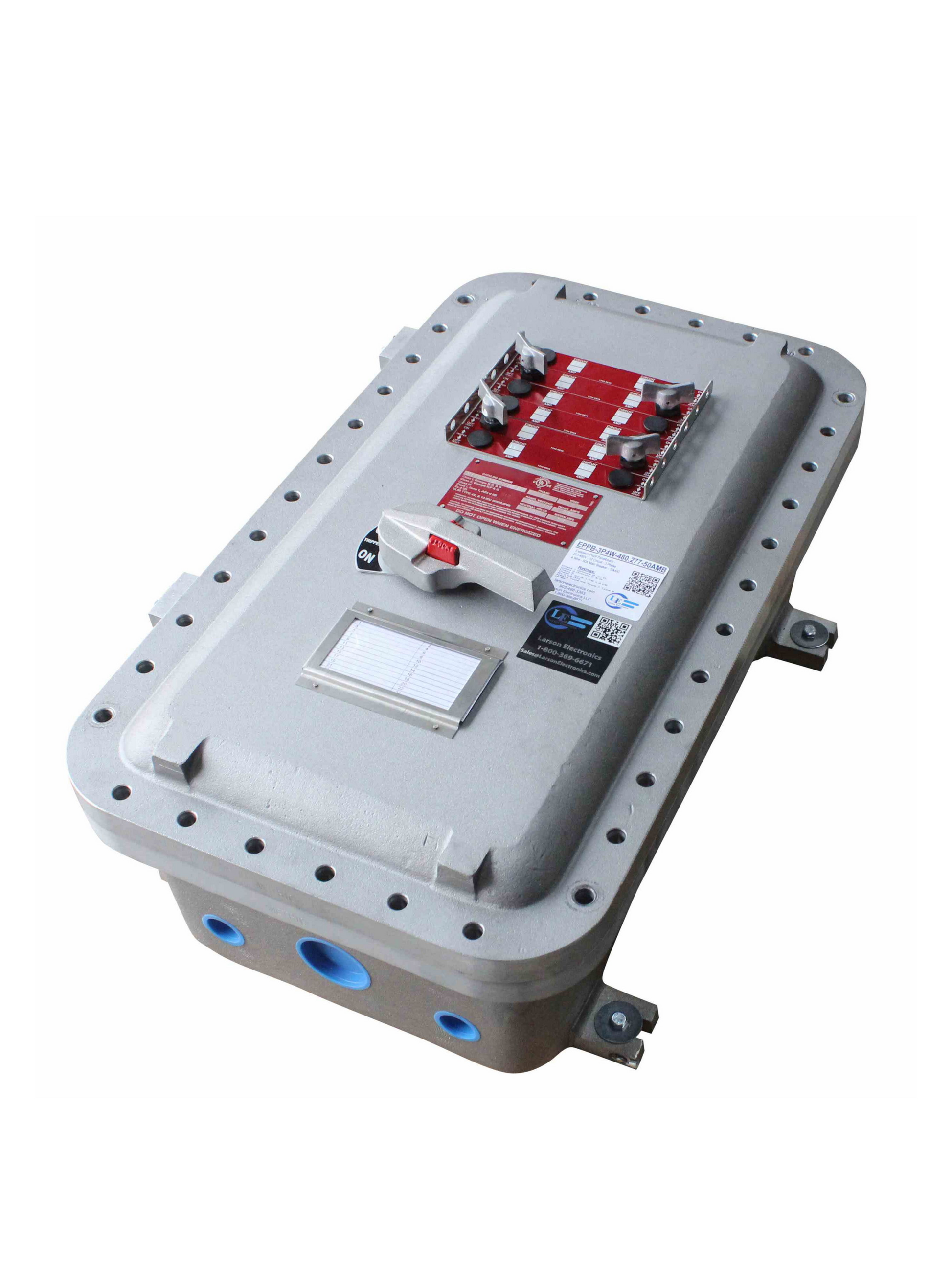

Appleton D2P-36 Enclosed Panelboard Raintight- New Surplus
Appleton D2P-36 Enclosed Panelboard Raintight- New Surplus
Appleton D2P-36 Enclosed Panelboard Raintight- New Surplus
  • SKU: Appleton D2P-36

Appleton D2P-36 Enclosed Panelboard Raintight- New Surplus

$13,086.15 $18,694.50

Ready to Ship Next Business Day

Shipping calculated at checkout.

Appleton D2P-36 Enclosed Panelboard Raintight- New Surplus

Ready To Ship Next Business Day

19.02 Inch W X 13.07 Inch D X 38 Inch H Size; Copper Free Aluminum Enclosure Material; 6 AWG to 250 MCM Cable Size; 120/240 VAC Voltage Rating

Specifications

Main Circuit Configuration:  3 PHASE 4 WIRE
Branch Circuit Configuration:  1 PHASE 2 WIRE
Cable Size:  6 AWG TO 250 MCM
Enclosure Material:  COPPER FREE ALUMINUM
Enclosure Finish:  BAKED TAN EPOXY CLAD DOUBLE COATED
Enclosure:  CLASS I DIV 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/3R/4/4X/5/7B/7C/7D/9E/9F/9G/12
Constructional Feature:  EXPLOSION PROOF, DUST IGNITION PROOF, RAIN TIGHT
Size:  19.02 INCH W X 13.07 INCH D X 38 INCH H
Additional Information:  NEUTRAL TYPE SOLID
Catalog Number:  D2P5C36
Brand Name:  Appleton[R]
Model:  D2P
Voltage Rating:  120/208 VAC
Current Rating:  250 AMPERE
Number of Circuits:  36
Number of Breakers:  36
Number of Breaker Poles:  1
CATALOG DESCRIPTION:  EXPLOSIONPROOF CIRCUIT BREAKER PANELBOARD, VOLTAGE RATING 120/208 VAC, CURRENT RATING 250 AMPERE, NUMBER OF CIRCUITS 36, NUMBER OF BREAKERS 36, NUMBER OF BREAKER POLES 1, MAIN CIRCUIT CONFIGURATION 3 PHASE 4 WIRE, BRANCH CIRCUIT CONFIGURATION 1 PHASE 2 WIRE, CABLE SIZE 6 AWG TO 250 MCM, ENCLOSURE MATERIAL COPPER FREE ALUMINUM, ENCLOSURE FINISH GREY EPOXY POWDER COATED, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/3R/4/4X/5/7BCD/9EFG/12, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, WATERTIGHT, CORROSION RESISTANT, SIZE 19.02 INCH W X 13.07 INCH D X 38 INCH H, APPROVAL UL 887/1203, APPLICABLE STANDARD NEC, INTERRUPTING CAPACITY 10000 AMPERE, INCLUDE (2) DOOR, (2) O-RING GASKET, STAINLESS STEEL BOLT
Category:  Three Phase Main Lug Bolt-On Lighting Panelboard Interiors
Full Technical Description:  19.02 Inch W X 13.07 Inch D X 38 Inch H Size; Copper Free Aluminum Enclosure Material; 6 AWG to 250 MCM Cable Size; 120/208 VAC Voltage Rating; Class I Div 2 Group C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/3R/4/4X/5/7B/7C/7D/9E/9F/9G/12 Enclosure; 250 Ampere Current Rating; Explosion Proof, Dust Ignition Proof, Rain Tight; 36 Circuit(S); Baked Tan Epoxy Clad Double Coated Enclosure Finish; 1 Breaker Pole(S); 36 Breaker(S); 1 Phase 2 Wire Branch Circuit Configuratio; 3 Phase 4 Wire Main Circuit Configuration; APPLETON[R] Brand; Neutral Type Solid; D2P Model
Manufacturer:  Appleton Electric
Manufacturer Brand:  Appleton Electric
Product Description:  APPLETON D2P5C36 PANELBOARD
Sub-Category:  Explosionproof Circuit Breaker Panelboard
UNSPSC:  39121103
UPC 12 Digit:  781381677219
Unique Product Key:  5733645

DISCLAIMER:

Buyer understands that the Goods described herein are new surplus by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
