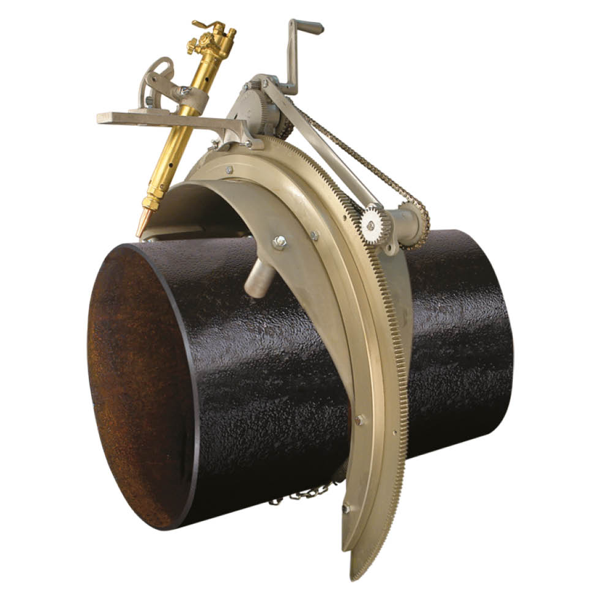

Mathey Dearman 4SA Manual Pipe Beveler - 20" to 26" Pipe Range
Professional-grade manual saddle beveling machine designed for critical pipe applications requiring exceptional cut quality and accuracy. The industry-standard Mathey Dearman 4SA features hard anodized aluminum construction for over 80 years of proven reliability. Includes spacers, torch, and torch holder for immediate use on 20" through 26" diameter pipe in shop or field environments.
Features
- Hard anodized aluminum saddle, ring gear, and cap ring for superior durability
- Precision spacer bolts on both sides of saddle ensure critical accuracy
- One-piece saddle design resists stress and warping
- Up to 80% faster than hand cutting and grinding
- Compatible with oxy/fuel or plasma torches with 1 3/8 in barrel diameter
- Minimal operator training required for accurate setup
- Portable and lightweight for shop or field applications
- Smooth rounded integral bushing protects conductor insulation
- Accurately tapped tapered threads for tight, rigid joints
- Form 35 design for maximum cutting accuracy
Included
- 4SA base machine
- Torch holder
- Torch
- Spacer bolts for 20 in, 22 in, 24 in, 26 in pipe
Specifications
| Model | 4SA |
|---|---|
| Pipe Size Range | 20 in - 26 in (508 mm - 660 mm) |
| Cutting Speed | 53 ipm (inches per minute) |
| Machine Type | Manual saddle machine |
| Saddle Material | Hard anodized aluminum alloy |
| Ring Gear Material | Hard anodized aluminum alloy |
| Torch Compatibility | Oxy/fuel or plasma with 1 3/8 in (35 mm) barrel |
| Included Spacer Sizes | 20 in, 22 in, 24 in, 26 in |
| Application | Construction, fabrication, welding jobsites |
| Setup Time | 5 minutes or less |
| Accuracy | Precision spacer bolts ensure critical accuracy |
| Finish | Hard anodized |
Dimensions
| Overall Width | 40.5 in (1029 mm) |
|---|---|
| Overall Height | 41 in (1041 mm) |
| Overall Depth | 19 in (483 mm) |
| Net Weight | 75 lbs (34 kg) |
| Shipping Weight | 150 lbs (68 kg) |
This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
