3M 5301 Motor Lead Pigtail Splice , 1 kV, 1-Hole Lug Connection, 10-4 AWG-New Surplus
3M 5301 Motor Lead Pigtail Splice , 1 kV, 1-Hole Lug Connection, 10-4 AWG-New Surplus
3M 5301 Motor Lead Pigtail Splice , 1 kV, 1-Hole Lug Connection, 10-4 AWG-New Surplus
  • SKU: 3M 5301

3M 5301 Motor Lead Pigtail Splice , 1 kV, 1-Hole Lug Connection, 10-4 AWG-New Surplus

$62.70 $78.41

Ready to Ship in 1-2 Business Days

Shipping calculated at checkout.

3M 5301 Motor Lead Pigtail Splice , 1 kV, 1-Hole Lug Connection, 10-4 AWG-New Surplus

Ready To Ship Next Business Day

Non Shielded, Single Conductor Cable with 1 hole copper lug connector, for Feeder Cable 10 to 4 AWG, Motor Lead Cable 12 to 4 AWG. This 3 Splice cable is made of EPDM rubber insulation.

Motor lead splice kits have rubber boots that slip around motor leads and other compatible connectors and are then secured with weatherproof tape to protect them from water, abrasion, and corrosion damage. These kits install without special tools, support a wide range of cable sizes, and condense motor lead assemblies to help them fit inside confined enclosures.

Details

  • Brand 3M
  • Compatible with Product Type 0Pigtail, 1-Hole Lug Connections
  • Maximum Wire Size4 AWG
  • Minimum Wire Size12 AWG
  • Color Black
  • Body Material EPDM Rubber
  • Termination Style Splice
  • RoHS Compliant Yes

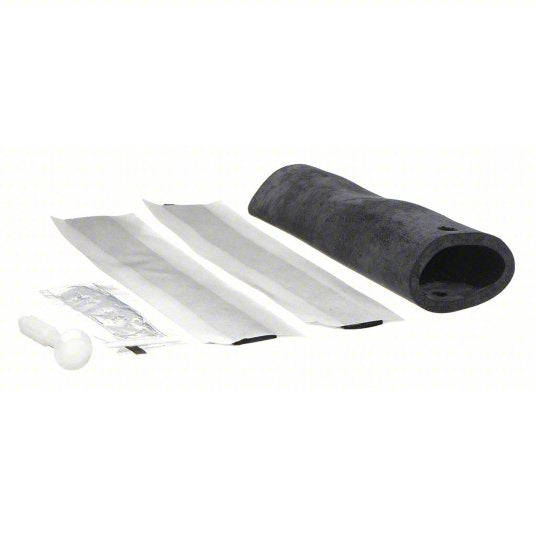

  • Includes(1) Instruction Sheet; (3) Mastic Sealing Strips; (3) Pigtail Lug Covers; (3) Tubes of Silicone Grease
  • For Wire Type Motor Lead Cable
  • Standards CSA Approved
  • Maximum Voltage 1,000 V
  • Maximum Operating Temperature 194 °F
  • Heat Shrink Material EPDM Rubber

Features

  • Fast and simple installation
  • No torches or heat source required
  • No special tools required to install splice
  •  Thick walls to resist puncture and abrasion damage
  •  High Dielectric constant stress control included with 5/8 kV kits for shielded feeder
  • cables, for minimizing size and electrical stress
  • Easy re-entry
