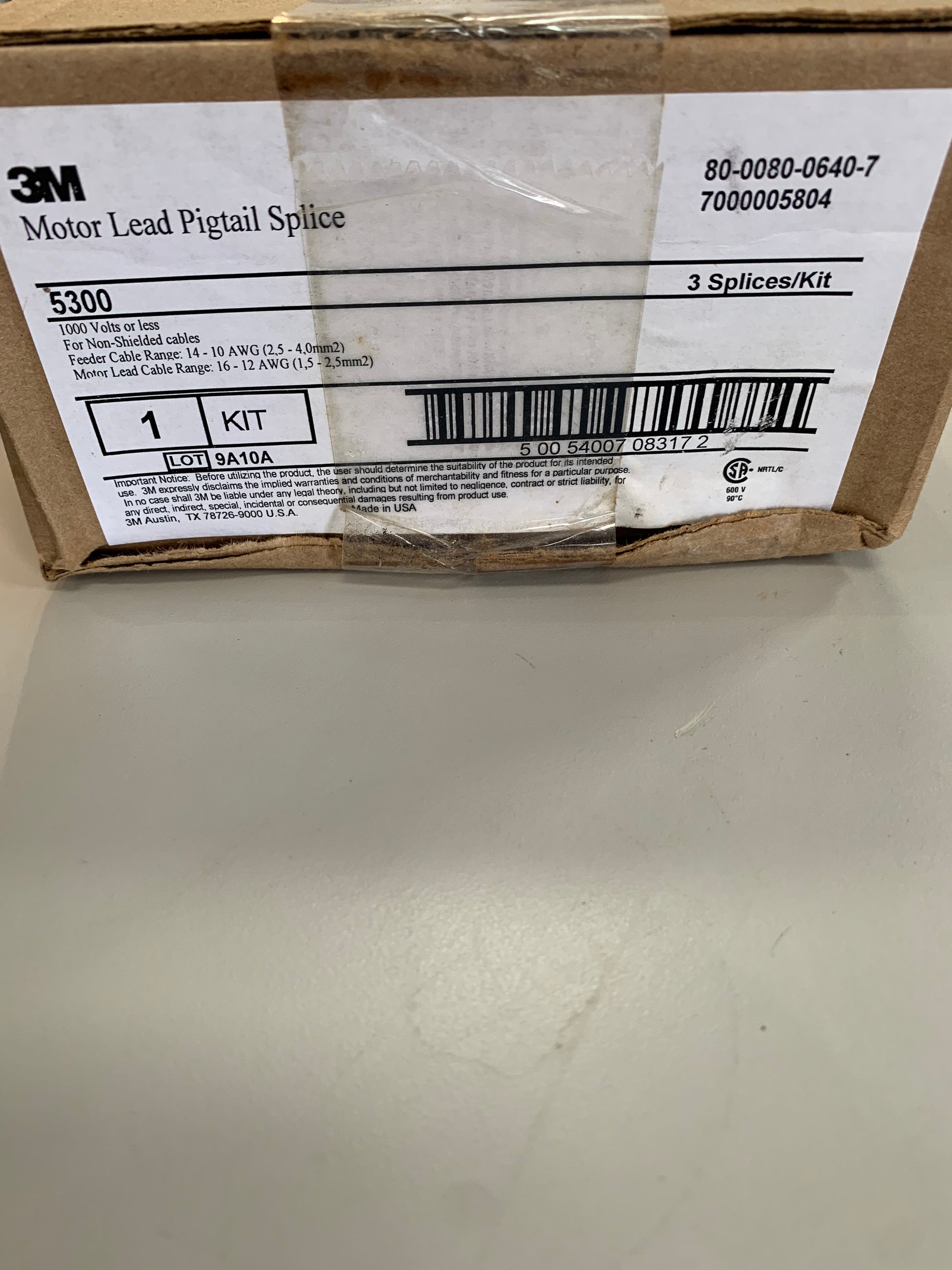

3M™ Motor Lead Pigtail Splice 5300, 1 kV, 1-Hole Lug Connection, Feeder: 14-10 AWG , Motor Lead: 16-1/0-AWG , 1/Case New Surplus
  • SKU: 3M 5301-10

3M™ Motor Lead Pigtail Splice 5300, 1 kV, 1-Hole Lug Connection, Feeder: 14-10 AWG , Motor Lead: 16-1/0-AWG , 1/Case New Surplus

$35.00 $45.00

Ready to Ship Next Business Day

  • Vendor: 3M
  • Barcode: 50054007083172

3M™ Motor Lead Pigtail Splice 5300, 1 kV, 1-Hole Lug Connection, Feeder: 14-10 AWG , Motor Lead: 16-1/0-AWG , 1/Case New Surplus

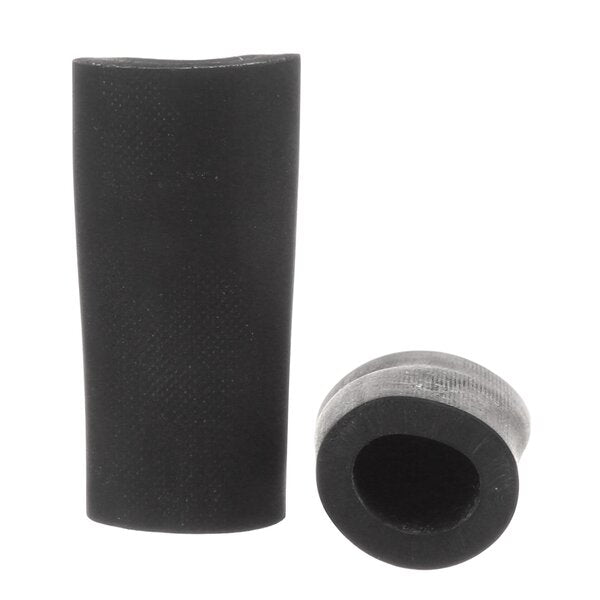

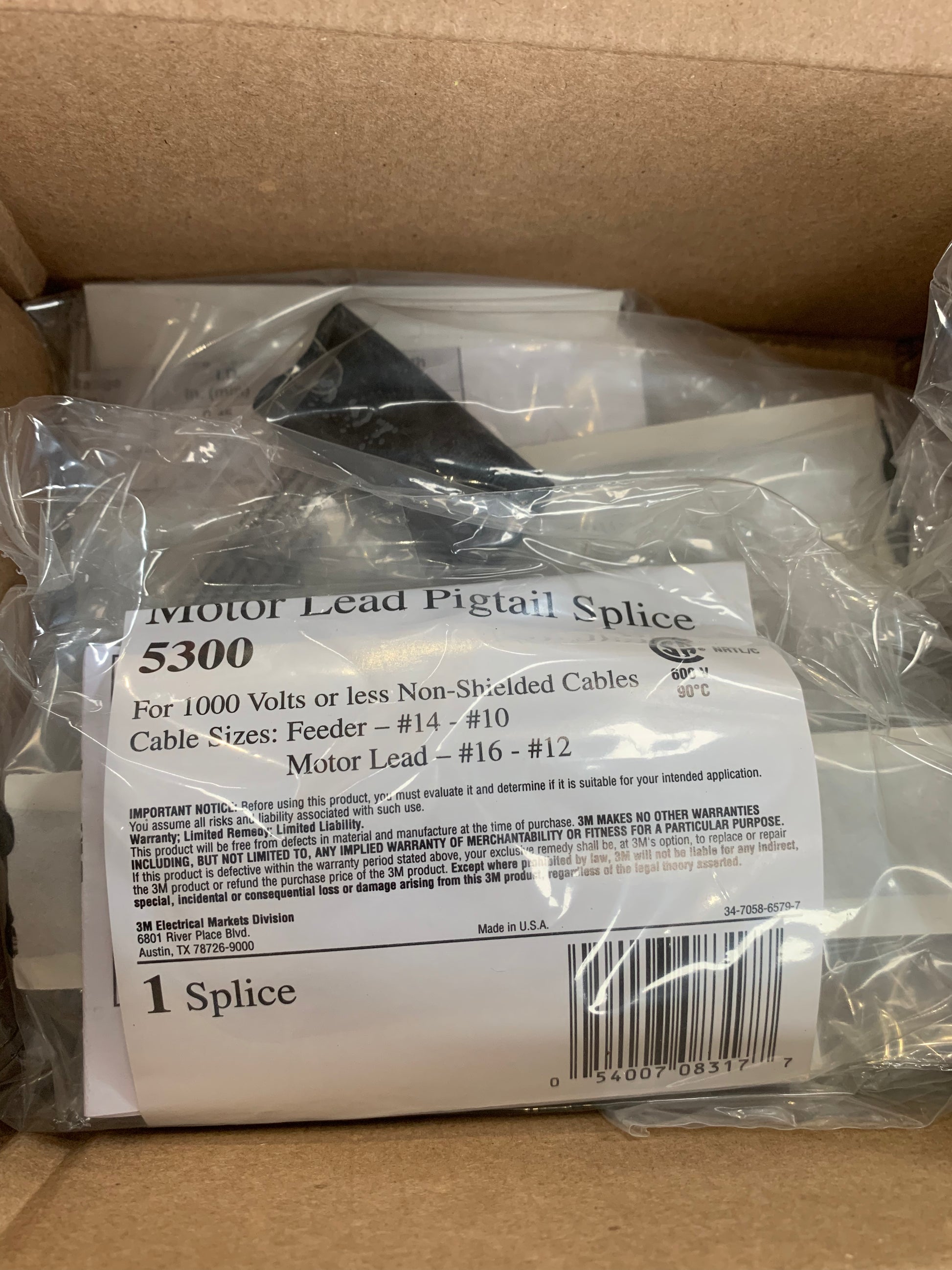

3M™ Motor Lead Pigtail Splicing Kits 5300 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of pigtail (stub) connections at 1000 volts and less. The splice’s main component, the slip-on lug cover, is made from EPDM rubber. Mastic strips are used for the moisture seal. These kits are designed to be used with copper compression, one-hole lugs. After being crimped onto the cables, the lugs are bolted together in a pigtail configuration, then insulated and sealed with the 3M Motor Lead Splicing Kit. Each kit makes three splices and contains the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlok™ Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used. Kit contents include: • (3) Pigtail lug covers • (3) Mastic sealing strips • (3) Locking pins (kits 5302–5304 only) • (3) Tubes of silicone grease • (1) Instruction sheet

Specifications

Brands

3M™

Connection Type

Pigtail (Non-shielded)

Insulation Outside Diameter

0.12-0.21 Inch

Insulation Outside Diameter Range

0.12-0.21 in

Insulation Outside Diameter Range (Metric)

3.0 - 5.3 mm

Lug Cover Inner Diameter

0.45 in

Lug Cover Inner Diameter (Metric)

11.4 mm

Lug Cover Length

2.1 in

Lug Cover Length (Metric)

53.3 mm

Maximum Bolt Length

3/8 in

Maximum Bolt Length (Metric)

9.5 mm

Maximum Feeder Lead Size

10 AWG

Maximum Motor Lead Size

12 AWG

Maximum Operating Voltage

1 kV

Range Feeder Cable (AWG & kcmil)

14-10

Splice Type

Pigtail Only

Units per Case

1.0

Voltage

1 kV



Buyer understands that the Goods described herein are new surplus by persons other than GES. GES is not obligated to do any repair work or modifications upon the Goods prior to sale or delivery. Any modifications performed by GES on the Goods prior to sale shall be performed as a result of the sole request of Buyer using designs and instructions provided by Buyer. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. Buyer shall have fifteen (15) days from the date of delivery to accept product.
