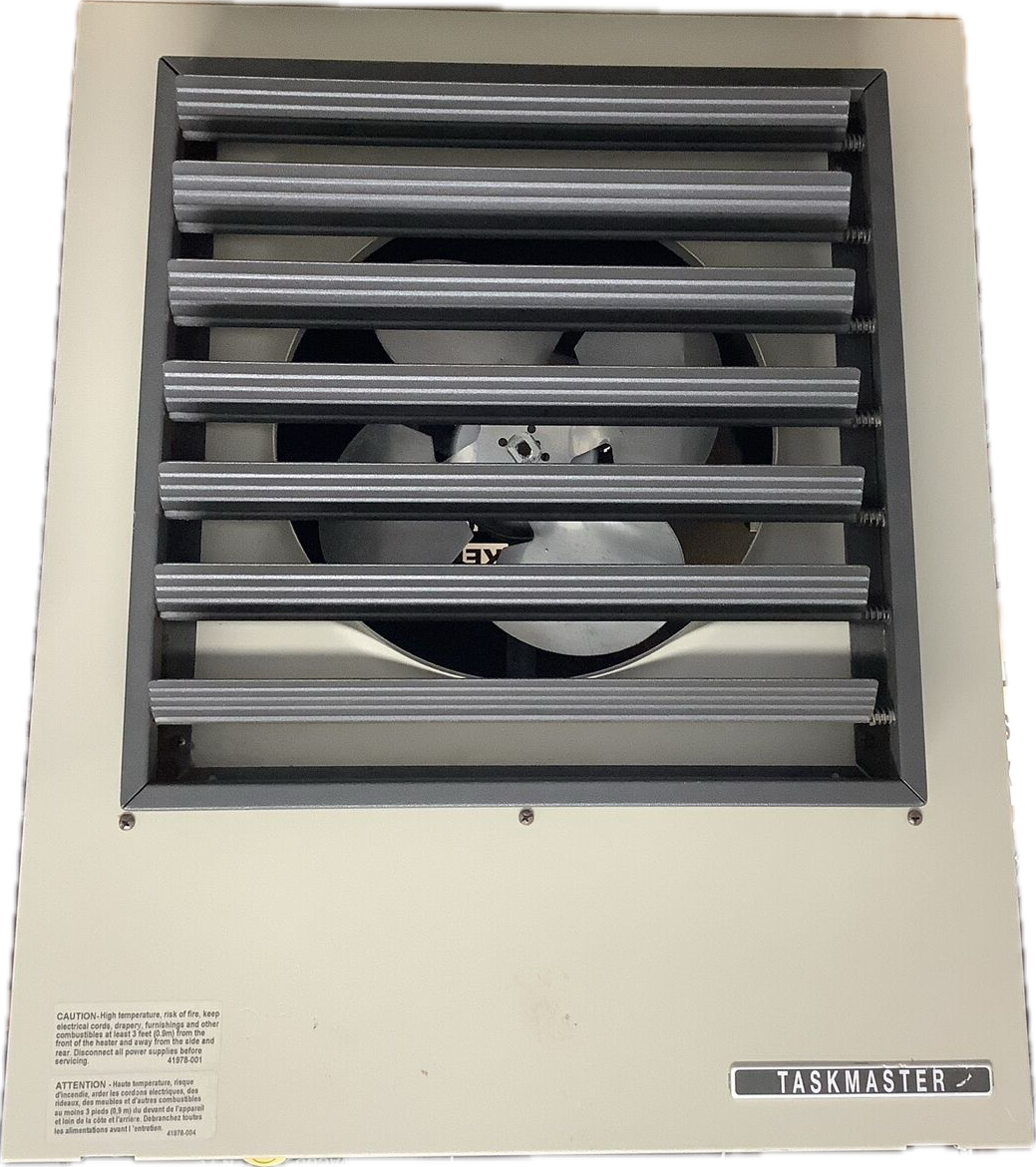

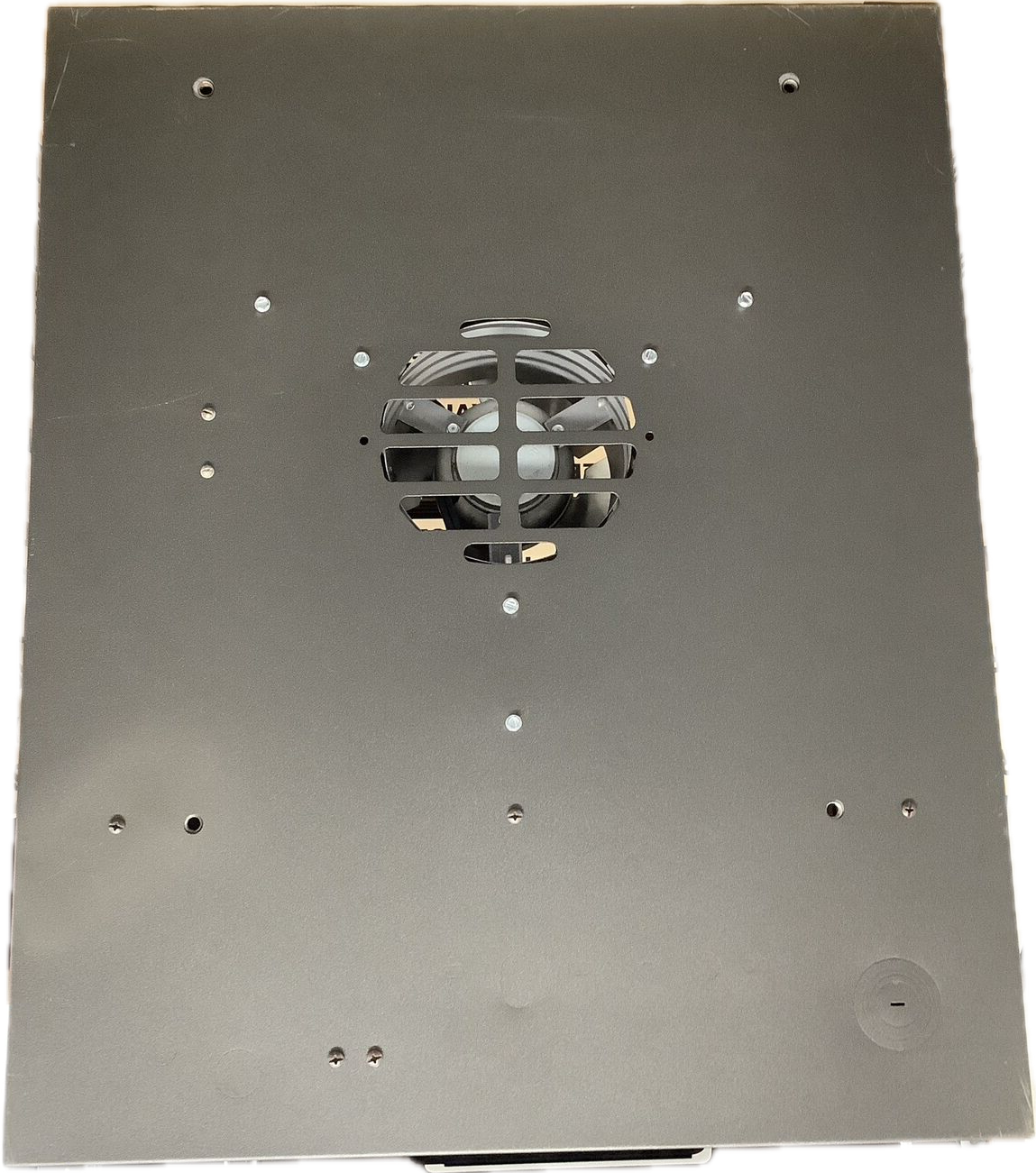

Taskmaster TPI P3P5110CA1N Fan Forced Suspended Unit Heater - Reconditioned

Taskmaster TPI P3P5110CA1N Fan Forced Suspended Unit Heater - Reconditioned with 1 Year Operational Warranty

Description:

The Taskmaster TPI P3P510CA1N is a fan-forced unit heater designed for use in warehouses and storage rooms. It features a 1-speed, 1-phase, permanently lubricated bearing motor that delivers an air flow rate of 700 CFM. The heater is constructed from 18-gauge welded steel and has a powder-coated finish for durability. With dimensions of 21-1/2 inches wide, 6-1/2 inches deep, and 24-5/16 inches high, the heater can be mounted on the ceiling or wall, either horizontally or vertically. The unit is ETL approved for use in Canada and the US and comes equipped with a contactor, disconnect switch, thermostat, and summer fan switch. It has an air throw distance of 22 feet, a control voltage of 24 V, and a temperature rise of 45°F. The heater is suitable for mounting heights of 10 feet horizontally and 14 feet vertically.

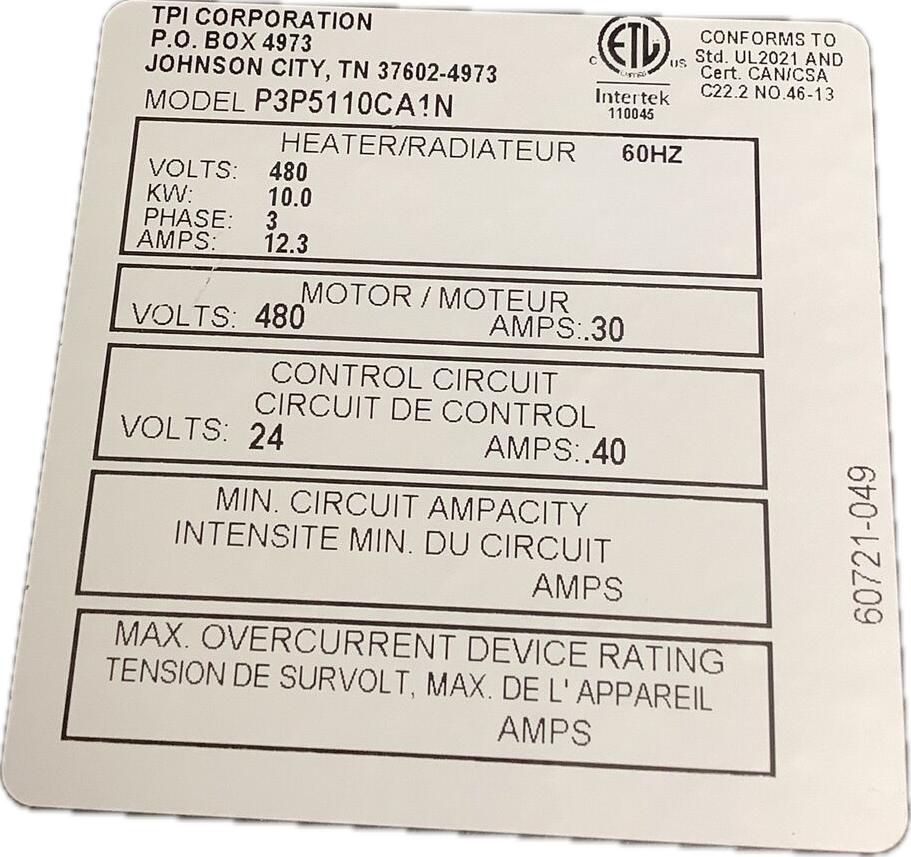

• Model: 5100
• Voltage Rating: 480 V
• Current Rating: 12.1 Ampere
• Power Rating: 10 KW
• Number of Phases: 3
• Capacity: 34.1 BTU/Hr
• Heating Element: Brazed Steel Finned Copper Clad Steel Sheath Element
• Fan/Motor Type: Totally Enclosed 1-Speed 1-Phase Permanently Lubricated Bearing Motor
• Air Flow Rate: 700 CFM
• Material: 18 Gauge Welded Steel
• Finish: Powder Coated
• Size: 21-1/2 Inch W x 6-1/2 Inch D x 24-5/16 Inch H
• Mounting: Ceiling/Wall Bracket, Horizontal/Vertical
• Air Throw Distance: 22 Ft
• Control Voltage: 24 V
• Mounting Height: 10 Ft Horizontal, 14 Ft Vertical
• Temperature Rise: 45 Deg F

Product Manual
