Southwire 5813301 Maxis MCF-01 Cable Feeder - Reconditioned

Name: General Equipment and Supply
Address: 3423 Fork Shoals Rd, Simpsonville, SC, 29680, US
Telephone: +1-800-800-6011

Reconditioned

$8,363.00

~~$12,465.00~~32% OFF SPRING SALE!

Low

Lead time:8 - 10 business days

Quantity

Ships in 8 - 10 business days

Description

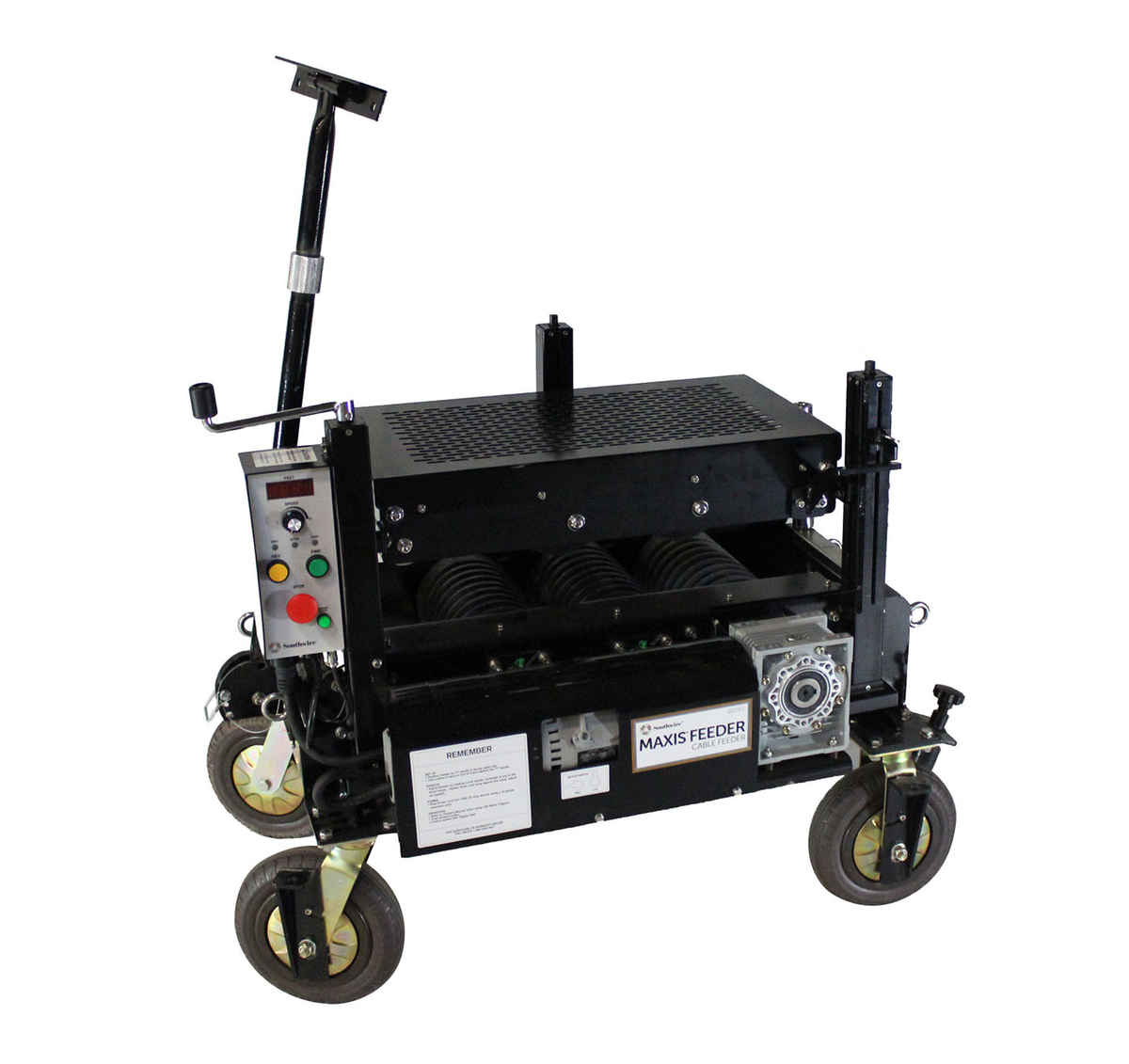

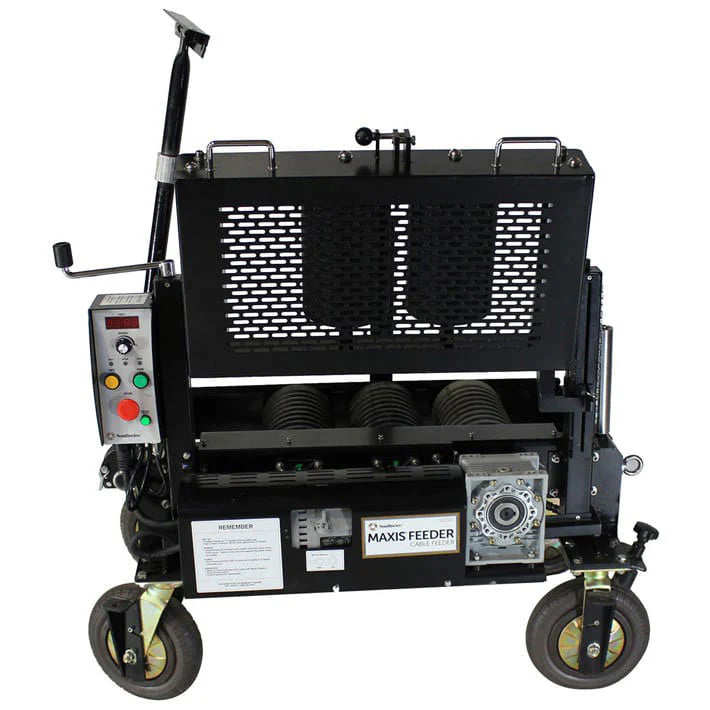

Southwire 5813301 Maxis MCF-01 Cable Feeder - Reconditioned

Reconditioned Southwire Maxis MCF-01 cable feeder designed and built specifically to accommodate Southwire SIMpull wire. Features forward and reverse variable speed operation up to 30 fpm, a grooved serpentine roller design for maximum traction, and a digital footage meter for monitoring conductor length. Solid rubber tires and swivel casters for easy jobsite maneuverability.

Features

Designed specifically for Southwire SIMpull wire
Forward and reverse variable speed operation, feeds up to 30 fpm
Grooved serpentine roller design with increased surface area for maximum traction force
Maximum traction force: 800 lbs single conductor, 1,600 lbs with 4 conductors on SIMpull THHN 500 MCM
Cable capacity: 8x 250 MCM, 6x 500 MCM, 5x 750 MCM
Digital footage meter for easy monitoring of conductor length being fed
Solid rubber tires and swivel casters, will never go flat
Compatible with Southwire Triggers Wireless Safety Switch System remote foot switches for simultaneous feeder/puller control

Included

1x Southwire 5813301 Maxis MCF-01 Cable Feeder

Specifications

Model	MCF-01
SKU	5813301
UPC	032886895418
Rated Capacity	Up to 1,000 lbs
Max Feed Speed	30 fpm
Cable Capacity	8x 250 MCM, 6x 500 MCM, 5x 750 MCM
Drive System	Grooved serpentine roller
Condition	Reconditioned

Dimensions

Length	44 in
Width	26 in
Height	35 in
Weight	366 lbs

Disclaimer

This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible. GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
