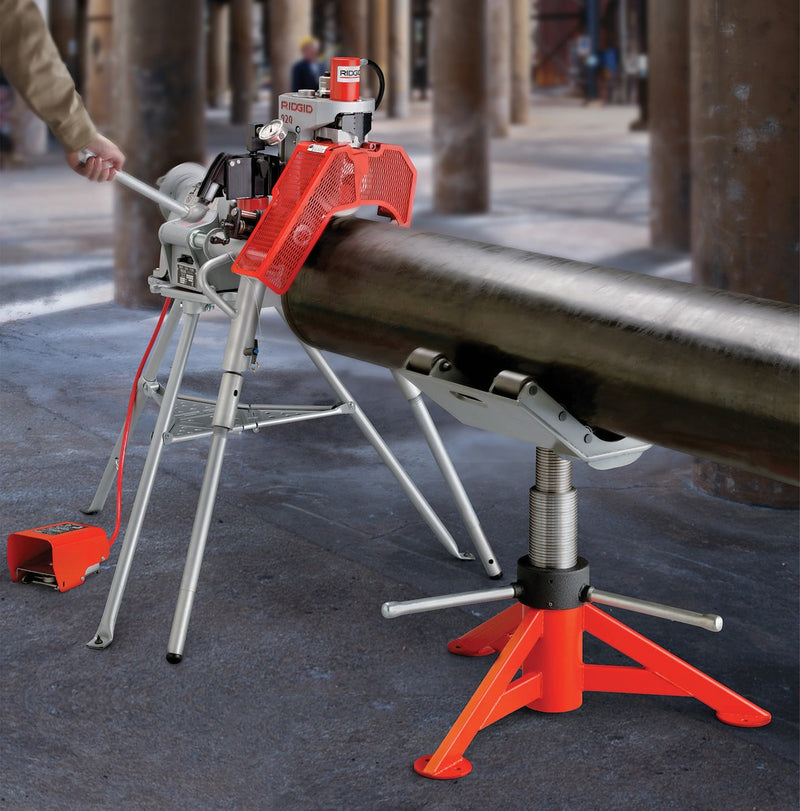

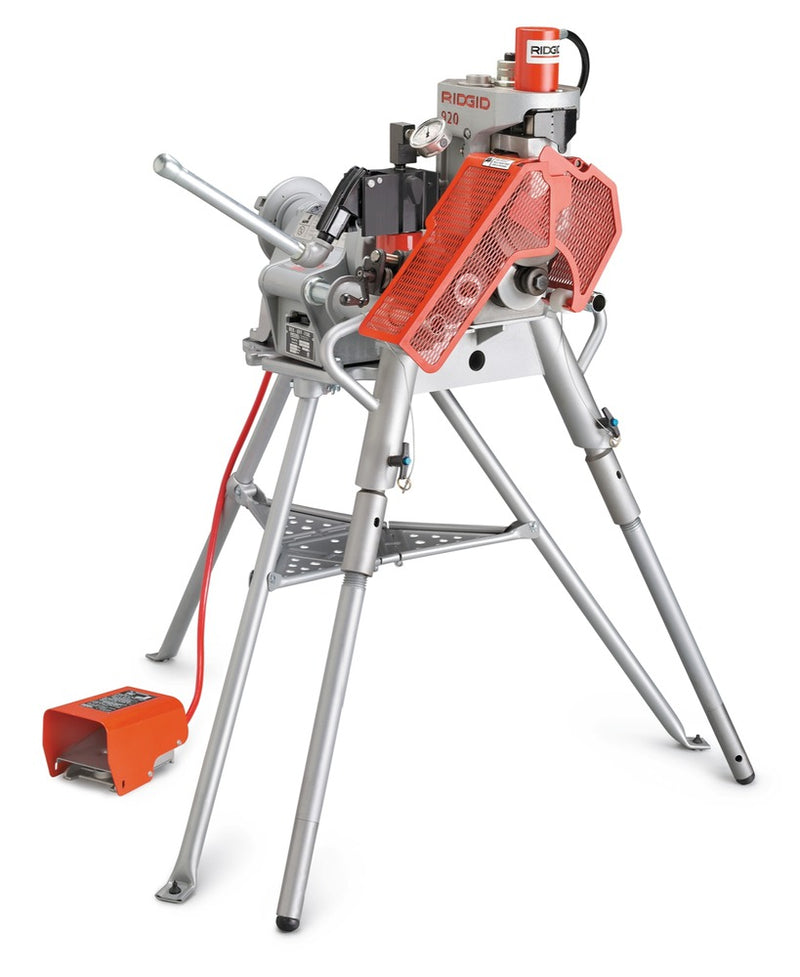

Ridgid 920 Roll Groover - 2" to 24" Pipe Capacity with Roll Sets
Professional hydraulic roll groover with the largest capacity in the Ridgid lineup. Forms rolled grooves in steel, stainless steel, aluminum, PVC pipe, and copper tubing from 2 inch to 24 inch diameter. Includes three roll sets covering 2-6 inch, 8-12 inch, and 14-16 inch pipe. Features patented depth setting gauge, built-in pressure gauge, and detachable transport wheels. Mounts to Ridgid 300 Power Drive (sold separately). Reconditioned unit tested for full functionality.
Features
- Largest grooving capacity in its class: 2 in to 24 in diameter pipe
- Hydraulic feeding system with drive roll support
- Patented depth setting gauge for easy, accurate groove depth without adjusting guarding
- Built-in pressure gauge monitors hydraulic pressure to control flare and optimize groove time
- Front roll set change-out allows quick and easy switching between sizes
- Detachable transport wheels enable one-person jobsite mobility
- Adjustable support legs for leveling on uneven ground
- Compatible with Model 32 Transporter cart (sold separately)
- Works with RJ624 large diameter pipe support (sold separately)
- Mounts to Ridgid 300 Power Drive for field or shop use
- Heavy-duty construction for demanding industrial applications
Included
- 920 Roll Groover with support legs
- 2 in - 6 in Sch. 10/40 groove roll set with box
- 8 in - 12 in Sch. 10/40 groove roll set with box
- 14 in - 16 in standard wall (0.375 in) groove roll set with box
Specifications
| Model | 920 Roll Groover |
|---|---|
| Catalog Number | 95782 |
| UPC | 095691957825 |
| Pipe Capacity Range | 2 in to 24 in diameter |
| Power Source | Ridgid 300 Power Drive (not included) |
| Compatible Materials | Steel, stainless steel, aluminum, PVC pipe, copper tubing |
| Roll Sets Included | 2-6 in (Sch 10/40), 8-12 in (Sch 10/40), 14-16 in (Standard Wall) |
| Depth Setting | Patented depth setting gauge |
| Pressure Monitoring | Built-in hydraulic pressure gauge |
| Transport | Detachable wheels included |
| Support Legs | Adjustable for leveling on uneven surfaces |
| Application | Industrial, commercial, plumbing, HVAC, fire protection |
| Tool Type | Threading machines / roll grooving |
Dimensions
| Weight | 380 lbs |
|---|---|
| Approximate Dimensions | 48 in L x 36 in W x 40 in H (with legs extended) |
This is a reconditioned product and is in full operational condition. Photo may not represent the actual product which may or may not contain some cosmetic blemishes that do not interfere with functionality. We offer a 90-day operational warranty on all reconditioned equipment. These units have been repainted and the manufacturer's logo may or may not be visible.
GES will attempt to comply with, but will not guarantee, shipping date and or delivery date. The buyer shall have fifteen (15) days from the date of delivery to accept product.
